Connector End View (C1458A) - SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC) / TRANSMISSION CONTROL MODULE (TCM)
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

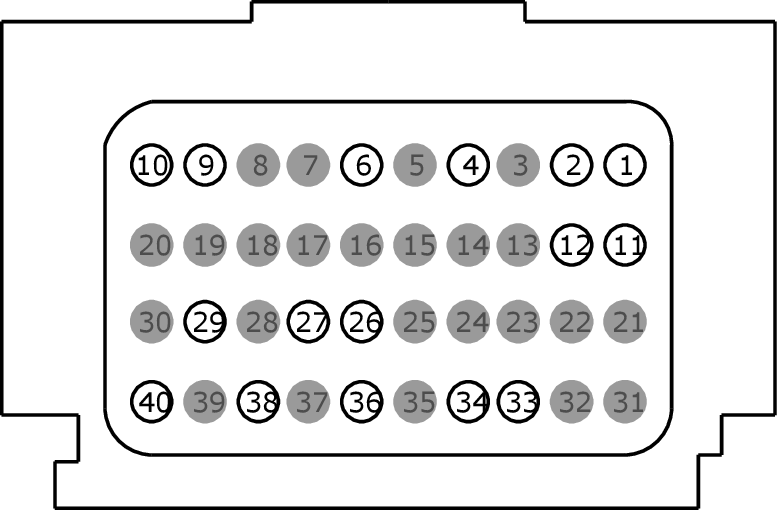

Connector:C1458A
Description
SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC) / TRANSMISSION CONTROL MODULE (TCM)
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT (PWRGND) | |
| 2 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT (PWRGND) | |
| 3 | * | * | Not Used | |
| 4 | VMC02 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # CLEAN TACHOMETER OUTPUT | |
| 5 | * | * | Not Used | |
| 6 | SBB18 (YE-RD) | 20 | FUSE - 18 OR CIRCUIT BREAKER (VBATT) | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | CBB51 (BN) | 20 | FUSE - 51 OR CIRCUIT BREAKER (VPWR) | |
| 10 | CBB51 (BN) | 20 | FUSE - 51 OR CIRCUIT BREAKER (VPWR) | |
| 11 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 12 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | * | * | Not Used | |
| 26 | CHP01 (BU-GN) | 20 | CTRL MOD. - PTC HEATER # HEATER | |
| 27 | CYT30 (GY-VT) | 20 | SWITCH - ELECTRIC VEHICLE MODE (EVM) | |
| 28 | * | * | Not Used | |
| 29 | CBB21 (BU-GY) | 20 | FUSE - 21 OR CIRCUIT BREAKER (VPWR) | |
| 30 | * | * | Not Used | |
| 31 | * | * | Not Used | |
| 32 | * | * | Not Used | |
| 33 | VYT12 (YE-GN) | 20 | PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC | |
| 34 | VYT11 (VT-GY) | 20 | CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL | |
| 35 | * | * | Not Used | |
| 36 | CE318 (VT) | 18 | CTRL MOD. - POWERTRAIN # MOTOR ELECTRONICS COOLING PUMP (MECSP) | |
| 37 | * | * | Not Used | |
| 38 | CE436 (VT-OG) | 20 | CTRL MOD. -WAKE UP PCM | |
| 39 | * | * | Not Used | |
| 40 | CE613 (WH-VT) | 20 | RELAY - POWERTRAIN CONTROL MODULE 2ND (TCMRC) |
