Connector End View (C4823) - AUDIO UNIT ANTENNA AMPLIFIER
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
AUDIO UNIT ANTENNA AMPLIFIER
Color
Harness
14B644
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CME36 (GN-VT) |
18 |
CTRL MOD. - AUDIO # AMPLIFIER ANTENNA REAR WINDOW |
|
Available Pigtail Kits |
|
|

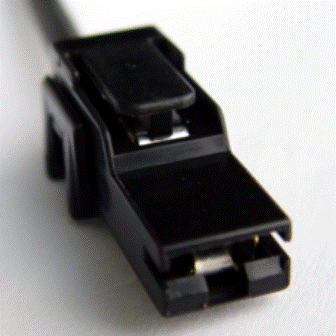

Pigtail Kit Part Number WPT-371 |
Service Part Number: 3U2Z-14S411-KBA Gauge: 10 Pin material: Tin Cavities: 1 Vehicle Uses Cigar Lighter Horn Lamp - CHMSL (Center High Mount Stop Lamp) Module - Isolater Antenna Module - Radio Power Antenna Relay - Starter Motor Switch - Park Brake Terminal - Rear Window Defroster Grid |
|

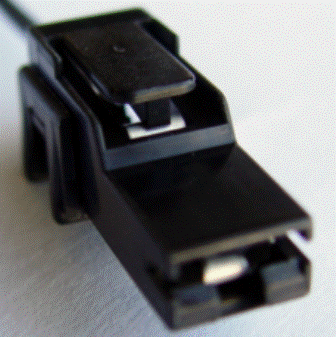

Pigtail Kit Part Number WPT-434 |
Service Part Number: 3U2Z-14S411-MFA Gauge: 16 18 Pin material: Tin Cavities: 1 Vehicle Uses Lamp - Map |
