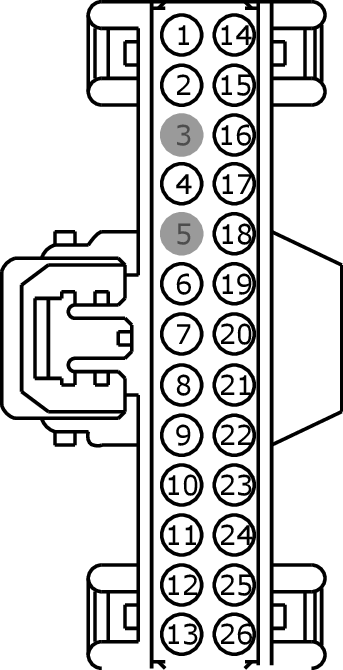

Connector End View (C4821B) - AUDIO FRONT CONTROL MODULE (ACM)
Description
AUDIO FRONT CONTROL MODULE (ACM)
Color
Harness
14B644
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VME99 (VT-OG) |
22 |
MICROPHONE - AMBIENT NOISE 2 + |
|
|
2 |
VME57 (YE-VT) |
22 |
MICROPHONE - AMBIENT NOISE + |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
VME17 (GN) |
22 |
CTRL MOD. - AUDIO # RADIO LEFT + |
|
|
4 |
VME22 (VT-GN) |
22 |
CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO + |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
VME90 (GY-BU) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK |
|
|
7 |
VMEA0 (BU-GN) |
22 |
MICROPHONE - AMBIENT NOISE 3 + |
|
|
8 |
VME80 (VT-GN) |
22 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 |
|
|
9 |
VME92 (WH-GN) |
22 |
CTRL MOD. - AUDIO HEAD UNIT # ALERT OUT |
|
|
10 |
VMEA9 (BU-GY) |
20 |
CTRL MOD. - REMOTE CD # AUDIO LEFT + |
|
|
11 |
VMEB0 (GN-WH) |
20 |
CTRL MOD. - REMOTE CD # AUDIO RIGHT + |
|
|
12 |
VME52 (BU) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + |
|
|
13 |
VME53 (VT-GN) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + |
|
|
14 |
RME99 (YE-GY) |
22 |
MICROPHONE - AMBIENT NOISE 2 - |
|
|
15 |
RME57 (BU-BN) |
22 |
MICROPHONE - AMBIENT NOISE - |
|
|
16 |
DME17 (*) |
20 |
CTRL MOD. - AUDIO # RADIO D |
|
|
16 |
DME22 (*) |
20 |
CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO D |
|
|
17 |
RME17 (GY) |
22 |
CTRL MOD. - AUDIO # RADIO LEFT - |
|
|
17 |
RME22 (GN-WH) |
22 |
CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO - |
|
|
18 |
SME23 (VT-RD) |
22 |
CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE |
|
|
19 |
VME91 (WH-BN) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK |
|
|
20 |
RMEA0 (WH-OG) |
22 |
MICROPHONE - AMBIENT NOISE 3 - |
|
|
21 |
RME80 (BU-GY) |
22 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 |
|
|
22 |
RME92 (WH-OG) |
22 |
CTRL MOD. - AUDIO HEAD UNIT # ALERT OUT - |
|
|
23 |
RMEA9 (VT-BN) |
20 |
CTRL MOD. - REMOTE CD # AUDIO LEFT - |
|
|
24 |
RMEB0 (WH-BN) |
20 |
CTRL MOD. - REMOTE CD # AUDIO RIGHT - |
|
|
25 |
RME52 (GY-OG) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - |
|
|
26 |
RME53 (BN-WH) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - |
