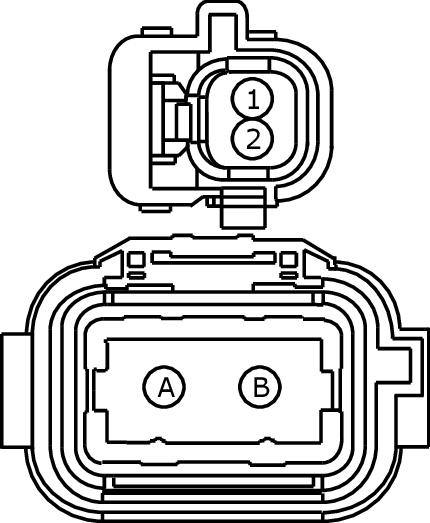

Connector End View (C4001) - INLINE
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 10B694
FEMALE
Harness 14B322
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
|
Pin
|
Circuit
|
Gauge
|
Qualifier
|
|
1
|
CYB03 (BN-YE)
|
20
|
PHEV
|
|
2
|
CYB04 (VT-BN)
|
20
|
PHEV
|
|
A
|
HYB20 (OG)
|
12
|
PHEV
|
|
B
|
HYB21 (OG)
|
12
|
PHEV
|
