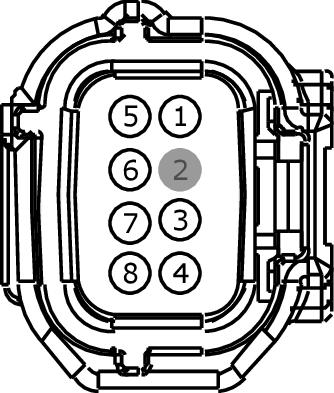

Connector End View (C3809) - EVAPORATIVE EMISSION (EVAP) LEAK DETECTION CONTROL MODULE

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Description

EVAPORATIVE EMISSION (EVAP) LEAK DETECTION CONTROL MODULE

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE347 (BU-GN)	20	CTRL MOD. - POWERTRAIN # REFUELING CONTROL RELAY (EVAPLDPSV)
2	*	*	Not Used
3	CBK02 (GN)	20	FUSE - 2 OR CIRCUIT BREAKER (VPWR)
4	CE229 (VT-OG)	20	CTRL MOD. - POWERTRAIN # FUEL TANK LEAK DETECTION PUMP MOTOR (EVAPLDP)
5	CBK02 (GN)	20	FUSE - 2 OR CIRCUIT BREAKER (VPWR)
6	LE230 (BN-BU)	20	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (VREF)
7	VE934 (GY-BN)	20	TRANSDUCER - FUEL TANK PRESSURE 2ND (EVAPLDPPR)
8	RE259 (BU)	20	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER 2ND (SIGRTN)

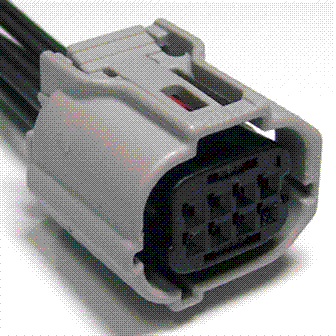

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1349

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-TA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Pump - Fuel Tank Leak Detection
