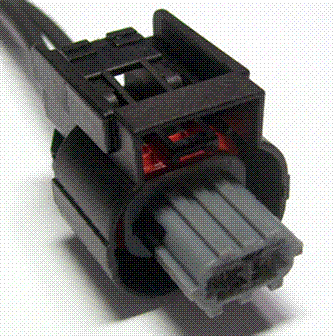

Connector End View (C3529) - PARKING BRAKE ACTUATION MOTOR
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
PARKING BRAKE ACTUATION MOTOR
Color
Harness
2B254
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CCB17 (BU-GN) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT UNLOCK |
|
|
2 |
CCB16 (WH-VT) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT LOCK |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1065 |
Service Part Number: AU2Z-14S411-DA Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Injector - UREA Sensor - Fuel Rail Pressure Valve - Fuel Metering |
