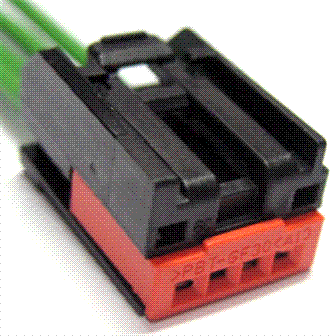

Connector End View (C3312) - AUDIO INPUT SOCKET

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Description

AUDIO INPUT SOCKET

Color

Harness

14B079

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME46 (BU-WH)	26	JACK - AUDIO # EXT. AUX IN RIGHT
2	*	*	Not Used
3	RME45 (YE)	26	JACK - AUDIO # EXT. AUX IN LEFT OR COMMON
4	VME45 (BU)	26	JACK - AUDIO # EXT. AUX IN LEFT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1139

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-PRC

Gauge:

Pin material:

Silver

Cavities:
