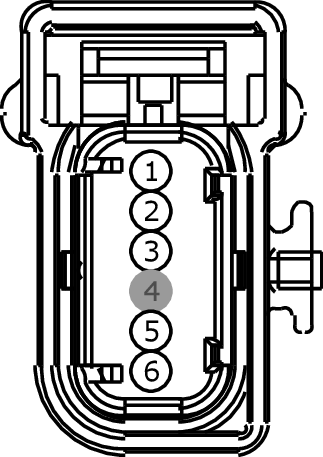

Connector End View (C3201) - SAFETY BELT BUCKLE, DRIVER
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
SAFETY BELT BUCKLE, DRIVER
Color
Harness
14D231
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VR210 (BU-BN) |
20 |
SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD |
|
|
2 |
LR142 (YE-BU) |
20 |
CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD + |
|
|
3 |
GD901 (BK) |
20 |
GROUND - PASSENGER SEAT # RESTRAINTS CLEAN |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
CR201 (GN-BU) |
20 |
SENSOR - SEAT BELT BUCKLE |
|
|
6 |
GD901 (BK) |
20 |
GROUND - PASSENGER SEAT # RESTRAINTS CLEAN |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1329 |
Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Antenna - Keyless Entry Handle - Decklid Switch - Keyless Entry Switch - Seatbelt |
