Connector End View (C3187) - DRIVER SEAT RECLINER MOTOR

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Description

DRIVER SEAT RECLINER MOTOR

Color

Harness

14D232

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS29 (WH-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	CPS30 (VT-BN)	14	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD

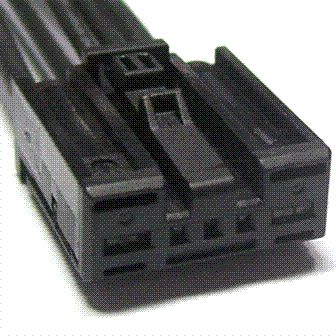

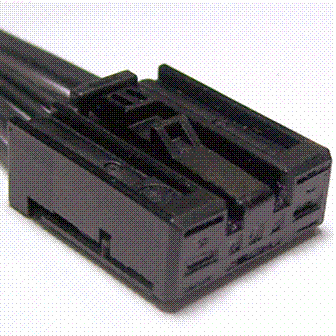

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1071

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-PA

Gauge:

14 18

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Motor - Seat Height (Rear)

Motor - Seat Recline

Pigtail Kit Part Number

WPT-1450

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-PB

Gauge:

14 20

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Clockspring

Module - Power Steering

Motor - Seat Height (Front)

Motor - Seat Height (Rear)

Motor - Seat Recline
