Connector End View (C3065) - SAFETY BELT ANCHOR PRETENSIONER, DRIVER

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Description

SAFETY BELT ANCHOR PRETENSIONER, DRIVER

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR120 (BU-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE +
2	RR120 (BN-GN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE -

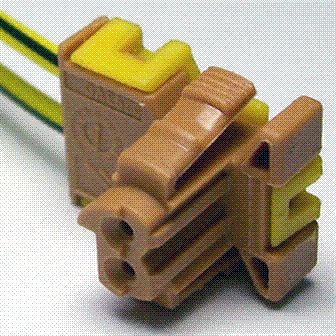

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1222

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BEA

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Pretensioner - Seat Belt (Driver)

Squib - Airbag (Passenger)
