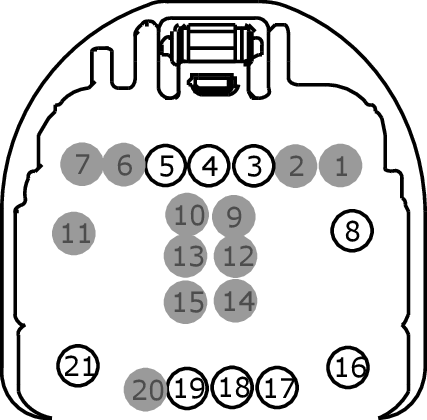

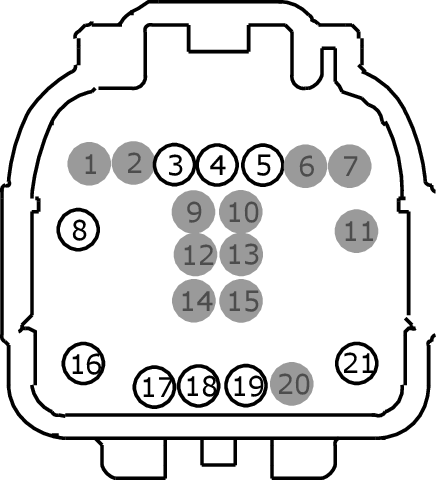

Connector End View (C3047) - INLINE
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14A005
FEMALE
Harness 19K315
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
* |
* |
|
|
2 |
* |
* |
|
|
3 |
CHS52 (BU) |
22 |
14A005 |
|
3 |
CHS52 (BU) |
26 |
19K315 |
|
4 |
CHS53 (WH) |
26 |
19K315 |
|
4 |
CHS53 (WH-BN) |
22 |
14A005 |
|
5 |
CHS31 (YE) |
26 |
19K315 |
|
5 |
CHS31 (YE-OG) |
22 |
14A005 |
|
6 |
* |
* |
|
|
7 |
* |
* |
|
|
8 |
CBP36 (BU-BN) |
18 |
14A005 |
|
8 |
CBP36 (WH) |
22 |
19K315 |
|
9 |
* |
* |
14A005 |
|
9 |
VDB29 (GN) |
26 |
19K315 |
|
10 |
* |
* |
14A005 |
|
10 |
VDB30 (WH-RD) |
26 |
19K315 |
|
11 |
* |
* |
14A005 |
|
11 |
SBP03 (BU-RD) |
20 |
19K315 |
|
12 |
* |
* |
14A005 |
|
12 |
VDB29 (GN-WH) |
26 |
19K315 |
|
13 |
* |
* |
14A005 |
|
13 |
VDB30 (WH) |
26 |
19K315 |
|
14 |
* |
* |
|
|
15 |
* |
* |
|
|
16 |
SBB73 (RD) |
16 |
|
|
17 |
CHS48 (YE) |
22 |
14A005 |
|
17 |
CHS48 (YE) |
26 |
19K315 |
|
18 |
CHS49 (VT) |
22 |
14A005 |
|
18 |
CHS49 (VT) |
26 |
19K315 |
|
19 |
CHS80 (BU) |
26 |
19K315 |
|
19 |
CHS80 (BU-OG) |
22 |
14A005 |
|
19 |
CHS80 (BU-OG) |
26 |
19K315 |
|
20 |
* |
* |
14A005 |
|
20 |
GD382 (BK-GY) |
20 |
19K315 |
|
21 |
GD382 (BK-GY) |
12 |
14A005 |
|
21 |
GD382 (BK-GY) |
16 |
19K315 |
