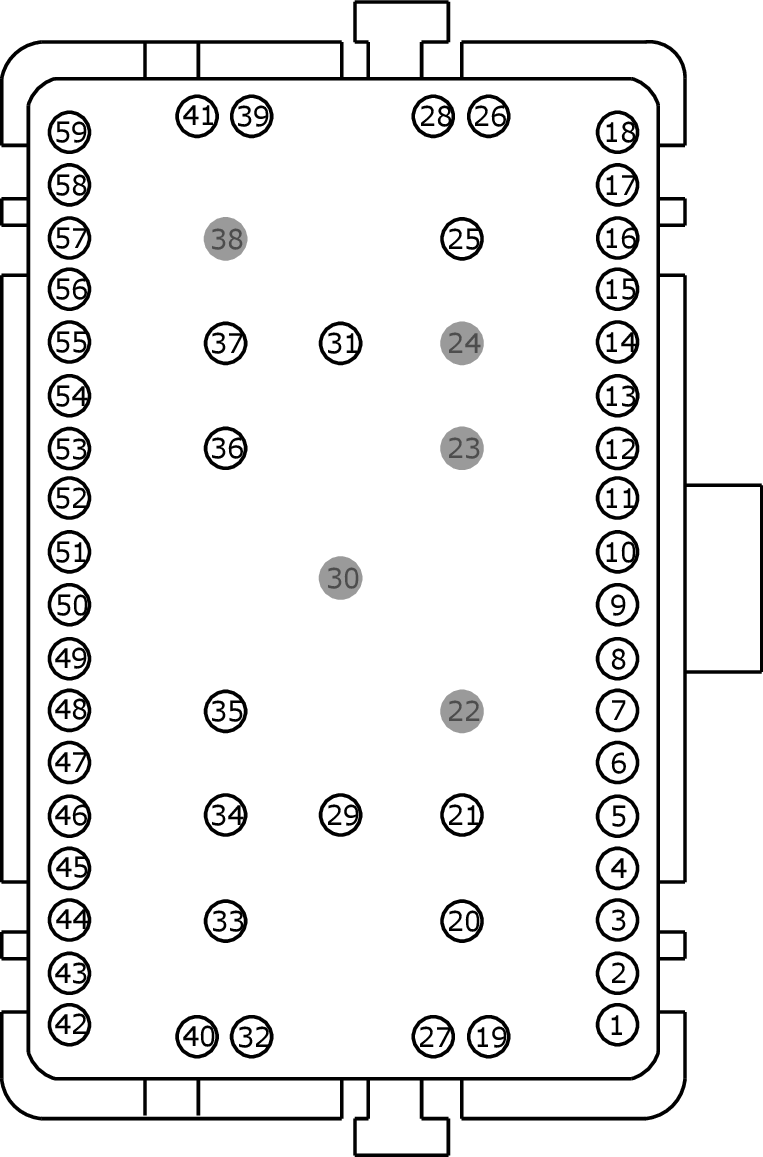

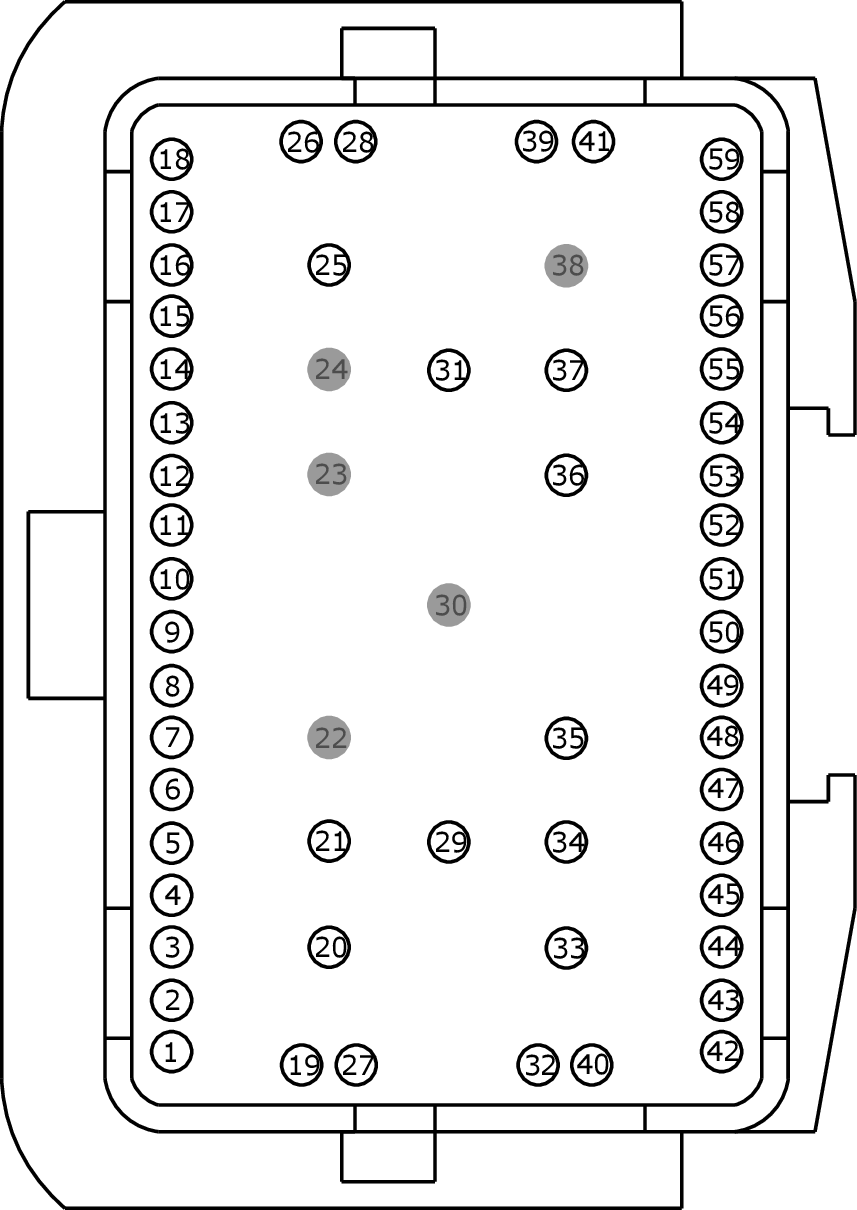

Connector End View (C214) - INLINE
InlineC214
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14B644
FEMALE
Harness 14A005
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
VDB29 (GN) |
26 |
14A005 |
|
1 |
VDB29 (GN-BU) |
22 |
14B644 |
|
2 |
VDB30 (WH) |
26 |
14A005 |
|
2 |
VDB30 (WH-GN) |
22 |
14B644 |
|
3 |
VME06 (GN) |
20 |
14A005 |
|
3 |
VME06 (GN) |
22 |
14B644 |
|
4 |
RME06 (GY-YE) |
20 |
14A005 |
|
4 |
RME06 (GY-YE) |
22 |
14B644 |
|
5 |
VME07 (WH) |
20 |
14A005 |
|
5 |
VME07 (WH) |
22 |
14B644 |
|
6 |
RME07 (WH-BN) |
20 |
14A005 |
|
6 |
RME07 (WH-BN) |
22 |
14B644 |
|
7 |
VME09 (WH-GN) |
20 |
14A005 |
|
7 |
VME09 (WH-GN) |
22 |
14B644 |
|
8 |
RME09 (BN-YE) |
20 |
14A005 |
|
8 |
RME09 (BN-YE) |
22 |
14B644 |
|
9 |
VME10 (WH-VT) |
20 |
14A005 |
|
9 |
VME10 (WH-VT) |
22 |
14B644 |
|
10 |
RME10 (WH-OG) |
20 |
14A005 |
|
10 |
RME10 (WH-OG) |
22 |
14B644 |
|
11 |
VME12 (BN-WH) |
20 |
14A005 |
|
11 |
VME12 (BN-WH) |
22 |
14B644 |
|
12 |
RME12 (BN-BU) |
20 |
14A005 |
|
12 |
RME12 (BN-BU) |
22 |
14B644 |
|
13 |
VMEA9 (BU-GY) |
20 |
14B644 |
|
13 |
VMEA9 (BU-GY) |
22 |
14A005 |
|
14 |
RMEA9 (VT-BN) |
20 |
14B644 |
|
14 |
RMEA9 (VT-BN) |
22 |
14A005 |
|
15 |
VME52 (BU) |
20 |
14A005 |
|
15 |
VME52 (BU) |
22 |
14B644 |
|
16 |
RME52 (GY-OG) |
20 |
14A005 |
|
16 |
RME52 (GY-OG) |
22 |
14B644 |
|
17 |
VME53 (VT-GN) |
20 |
14A005 |
|
17 |
VME53 (VT-GN) |
22 |
14B644 |
|
18 |
RME53 (BN-WH) |
20 |
14A005 |
|
18 |
RME53 (BN-WH) |
22 |
14B644 |
|
19 |
SME56 (BN) |
20 |
14A005 |
|
19 |
SME56 (BN) |
22 |
14B644 |
|
20 |
VMEB0 (GN-WH) |
20 |
14B644 |
|
20 |
VMEB0 (GN-WH) |
22 |
14A005 |
|
21 |
RMEB0 (WH-BN) |
20 |
14B644 |
|
21 |
RMEB0 (WH-BN) |
22 |
14A005 |
|
22 |
* |
* |
|
|
23 |
* |
* |
|
|
24 |
* |
* |
|
|
25 |
DME52 (*) |
20 |
|
|
26 |
VME99 (VT-OG) |
22 |
|
|
27 |
CDC54 (WH-GN) |
22 |
|
|
28 |
RME99 (YE-GY) |
22 |
|
|
29 |
CBP33 (VT-WH) |
18 |
14B644 |
|
29 |
CBP33 (WH-BN) |
18 |
|
|
30 |
* |
* |
|
|
31 |
SBP05 (GY-RD) |
16 |
14A005 |
|
31 |
SBP05 (GY-RD) |
18 |
14B644 |
|
32 |
VME72 (WH) |
18 |
14A005 |
|
32 |
VME72 (WH) |
22 |
14B644 |
|
33 |
VME73 (WH-BN) |
18 |
14A005 |
|
33 |
VME73 (WH-BN) |
22 |
14B644 |
|
34 |
RME73 (VT-OG) |
18 |
14A005 |
|
34 |
RME73 (VT-OG) |
22 |
14B644 |
|
35 |
DME58 (*) |
20 |
|
|
36 |
GD313 (BK-GN) |
16 |
|
|
36 |
GD313 (BK-GN) |
18 |
14B644 |
|
37 |
GD313 (BK-GN) |
16 |
|
|
38 |
* |
* |
|
|
39 |
VME80 (VT-GN) |
20 |
14A005 |
|
39 |
VME80 (VT-GN) |
22 |
14B644 |
|
40 |
RME72 (BU-GN) |
18 |
14A005 |
|
40 |
RME72 (BU-GN) |
22 |
14B644 |
|
41 |
RME80 (BU-GY) |
20 |
14A005 |
|
41 |
RME80 (BU-GY) |
22 |
14B644 |
|
42 |
VME78 (GN-VT) |
20 |
14A005 |
|
42 |
VME78 (GN-VT) |
22 |
14B644 |
|
43 |
RME78 (GY) |
20 |
14A005 |
|
43 |
RME78 (GY) |
22 |
14B644 |
|
44 |
VDB29 (GN) |
26 |
14A005 |
|
44 |
VDB29 (GN-BU) |
22 |
14B644 |
|
45 |
VDB30 (WH) |
26 |
14A005 |
|
45 |
VDB30 (WH-GN) |
22 |
14B644 |
|
46 |
VME18 (VT) |
20 |
14A005 |
|
46 |
VME18 (VT) |
22 |
14B644 |
|
46 |
VME99 (VT-OG) |
22 |
|
|
47 |
RME18 (YE) |
20 |
14A005 |
|
47 |
RME18 (YE) |
22 |
14B644 |
|
47 |
RME99 (YE-GY) |
22 |
|
|
48 |
VME79 (GY-VT) |
20 |
14A005 |
|
48 |
VME79 (GY-VT) |
22 |
14B644 |
|
49 |
RME79 (BN-VT) |
20 |
14A005 |
|
49 |
RME79 (BN-VT) |
22 |
14B644 |
|
50 |
VME59 (YE-OG) |
20 |
14A005 |
|
50 |
VME59 (YE-OG) |
22 |
14B644 |
|
51 |
RME59 (WH-GN) |
20 |
14A005 |
|
51 |
RME59 (WH-GN) |
22 |
14B644 |
|
52 |
VME58 (YE-VT) |
20 |
14A005 |
|
52 |
VME58 (YE-VT) |
22 |
14B644 |
|
53 |
RME58 (BN-BU) |
20 |
14A005 |
|
53 |
RME58 (BN-BU) |
22 |
14B644 |
|
54 |
VME57 (YE-VT) |
22 |
|
|
55 |
RME57 (BU-BN) |
22 |
|
|
56 |
VMEA0 (BU-GN) |
22 |
|
|
57 |
RMEA0 (WH-OG) |
22 |
|
|
58 |
VME90 (GY-BU) |
20 |
14A005 |
|
58 |
VME90 (GY-BU) |
22 |
14B644 |
|
59 |
VME91 (WH-BN) |
20 |
14A005 |
|
59 |
VME91 (WH-BN) |
22 |
14B644 |
