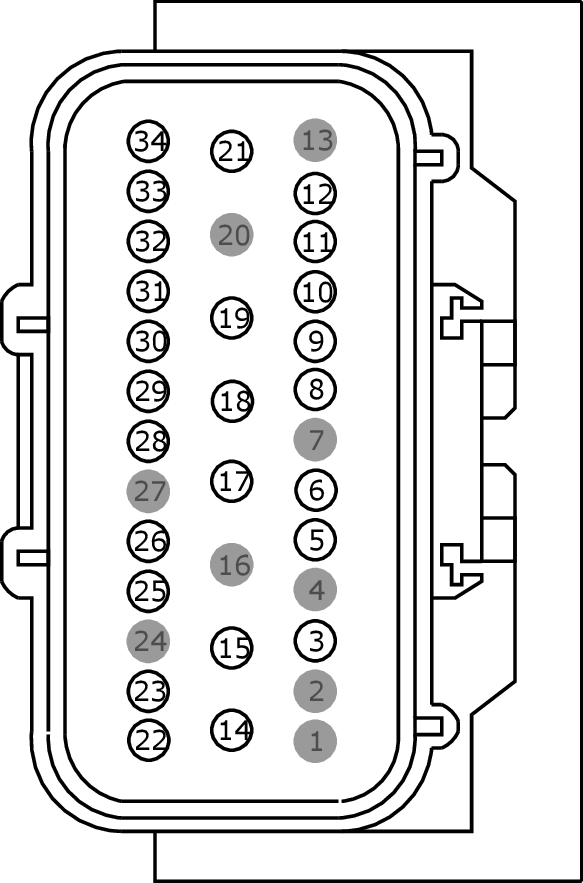

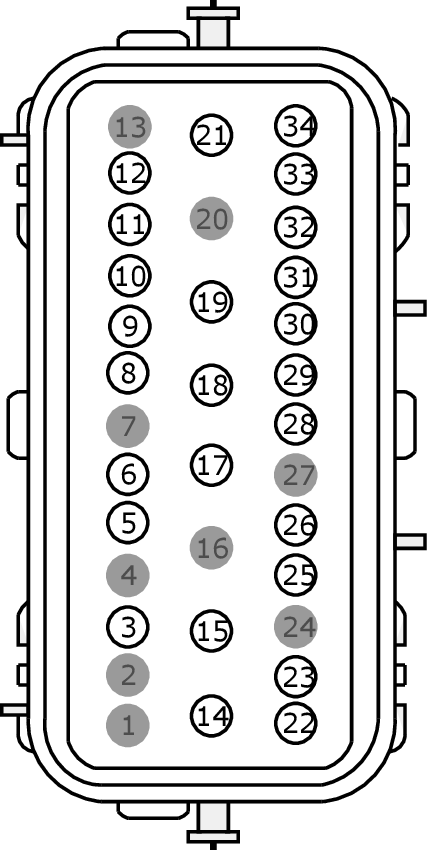

Connector End View (C146) - INLINE
InlineC146
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14A280
FEMALE
Harness 12A581
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
* |
* |
|
|
2 |
* |
* |
|
|
3 |
VYT11 (VT-GY) |
18 |
|
|
3 |
VYT11 (VT-GY) |
20 |
14A280 |
|
4 |
* |
* |
|
|
5 |
VYT12 (YE-GN) |
18 |
|
|
5 |
VYT12 (YE-GN) |
20 |
14A280 |
|
6 |
VDC61 (VT-GN) |
20 |
|
|
7 |
* |
* |
|
|
8 |
LDC59 (BU-WH) |
20 |
|
|
9 |
LE423 (GN-VT) |
20 |
|
|
10 |
VE462 (WH-BN) |
20 |
|
|
11 |
RE407 (YE-VT) |
20 |
|
|
12 |
RDC59 (GY-BN) |
20 |
|
|
13 |
* |
* |
|
|
14 |
CDC25 (BN-GN) |
12 |
|
|
15 |
SBB72 (GN-RD) |
14 |
12A581 |
|
15 |
SBB76 (GN-RD) |
14 |
14A280 |
|
15 |
SBB78 (BN-RD) |
14 |
14A280 |
|
16 |
* |
* |
|
|
17 |
SBB46 (BN-RD) |
14 |
12A581 |
|
17 |
SBB46 (BN-RD) |
16 |
14A280 |
|
17 |
SBB46 (GN-RD) |
16 |
14A280 |
|
17 |
SBB55 (BN-RD) |
14 |
12A581 |
|
18 |
CBB19 (BN-WH) |
14 |
12A581 |
|
18 |
CBB19 (BN-WH) |
16 |
14A280 |
|
19 |
CBB21 (BU-GY) |
14 |
12A581 |
|
19 |
CBB21 (BU-GY) |
18 |
14A280 |
|
19 |
CBB21 (WH) |
16 |
14A280 |
|
20 |
* |
* |
|
|
21 |
GD120 (BK) |
12 |
14A280 |
|
21 |
GD120 (BK) |
16 |
14A280 |
|
21 |
GD120 (BK-GN) |
12 |
|
|
21 |
GD120 (BK-GN) |
12 |
14A280 |
|
21 |
GD120 (BK-GN) |
16 |
14A280 |
|
22 |
CBK03 (GY) |
18 |
|
|
22 |
CBK03 (GY-YE) |
18 |
14A280 |
|
23 |
CH307 (GY-BU) |
18 |
|
|
23 |
CH307 (WH-BU) |
18 |
14A280 |
|
24 |
* |
* |
|
|
25 |
CET47 (BU) |
20 |
|
|
26 |
CH401 (VT-WH) |
20 |
|
|
27 |
* |
* |
|
|
28 |
CDC10 (BU-OG) |
20 |
|
|
29 |
CDC15 (VT) |
20 |
|
|
30 |
CDC56 (WH) |
18 |
14A280 |
|
30 |
CDC56 (WH) |
20 |
12A581 |
|
30 |
SDC57 (BU-OG) |
20 |
|
|
31 |
VDB25 (GN-OG) |
20 |
|
|
32 |
VDB26 (GY-BU) |
20 |
|
|
33 |
VDB25 (GN-OG) |
20 |
|
|
34 |
VDB26 (GY-BU) |
20 |
