Instrument Panel Cluster (IPC) - 2.0L Duratec - Hybrid (96kW/130PS) - Overview
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Overview
The IPC uses the following methods and functionality to alert the driver of vehicle conditions:
- gauges
- informational indicators
- warning indicators
- message center indicators
- warning messages
- warning chimes

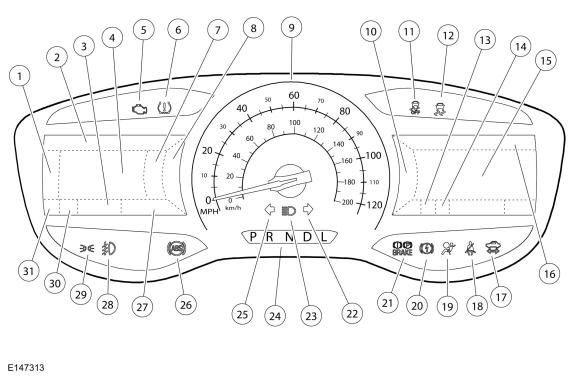

High-Level IPC - HEV And PHEV
High-Level IPC - HEV And PHEV
| Item | Description |
|---|---|
| 1 | Main menu display area |
| 2 | Selected menu navigation display |
| 3 | Odometer |
| 4 | Main message center/virtual gauge display area |
| 5 | MIL |
| 6 | TPMS warning indicator |
| 7 | High voltage battery gauge |
| 8 | Fuel gauge |
| 9 | Speedometer |
| 10 | Main infotainment menu |
| 11 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 12 | Stability-traction control indicator (sliding car icon) |
| 13 | Outside air temperature display |
| 14 | Compass display |
| 15 | Multimedia display Virtual compass display Efficiency emotive display (HEV and PHEV only) |
| 16 | Selected infotainment menu display |
| 17 | Ready to drive indicator |
| 18 | Safety belt warning indicator |
| 19 | Air bag warning indicator |
| 20 | Electric park brake warning indicator |
| 21 | Brake warning indicator |
| 22 | RH turn indicator |
| 23 | High beam indicator |
| 24 | PRNDL display |
| 25 | LH turn indicator |
| 26 | ABS warning indicator |
| 27 | Message center indicator display area |
| 28 | Fog lamp indicator |
| 29 | Lights on indicator |
| 30 | Lane departure warning system on message center indicator |
| 31 | Cruise control message center indicator |
The HEV and PHEV IPC utilizes a modified high-level IPC that provides specific displays HEV and PHEV displays.
The display options allow the user to define the level of information that they view. The display levels are as follows:
- Vehicle Range
- Inform
- Enlighten
- Engage
- Empower
- MyView
- EV (PHEV)
For a complete description of the display levels and the information contained in each level, refer to the Owner's Literature.
