Vehicle Dynamic Suspension

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

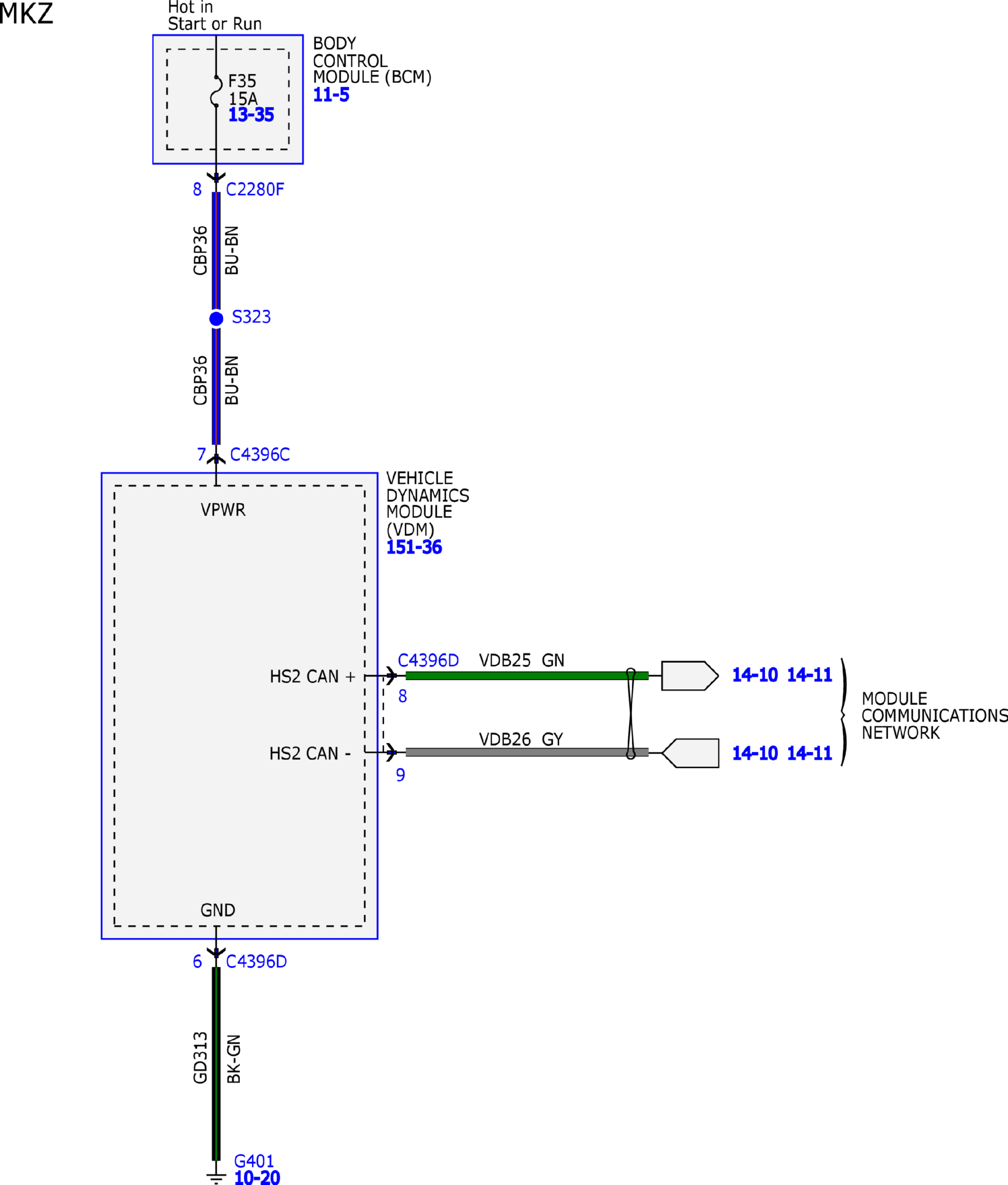

Fig 1: Vehicle Dynamic Suspension (1 of 3)

Courtesy of FORD MOTOR COMPANY

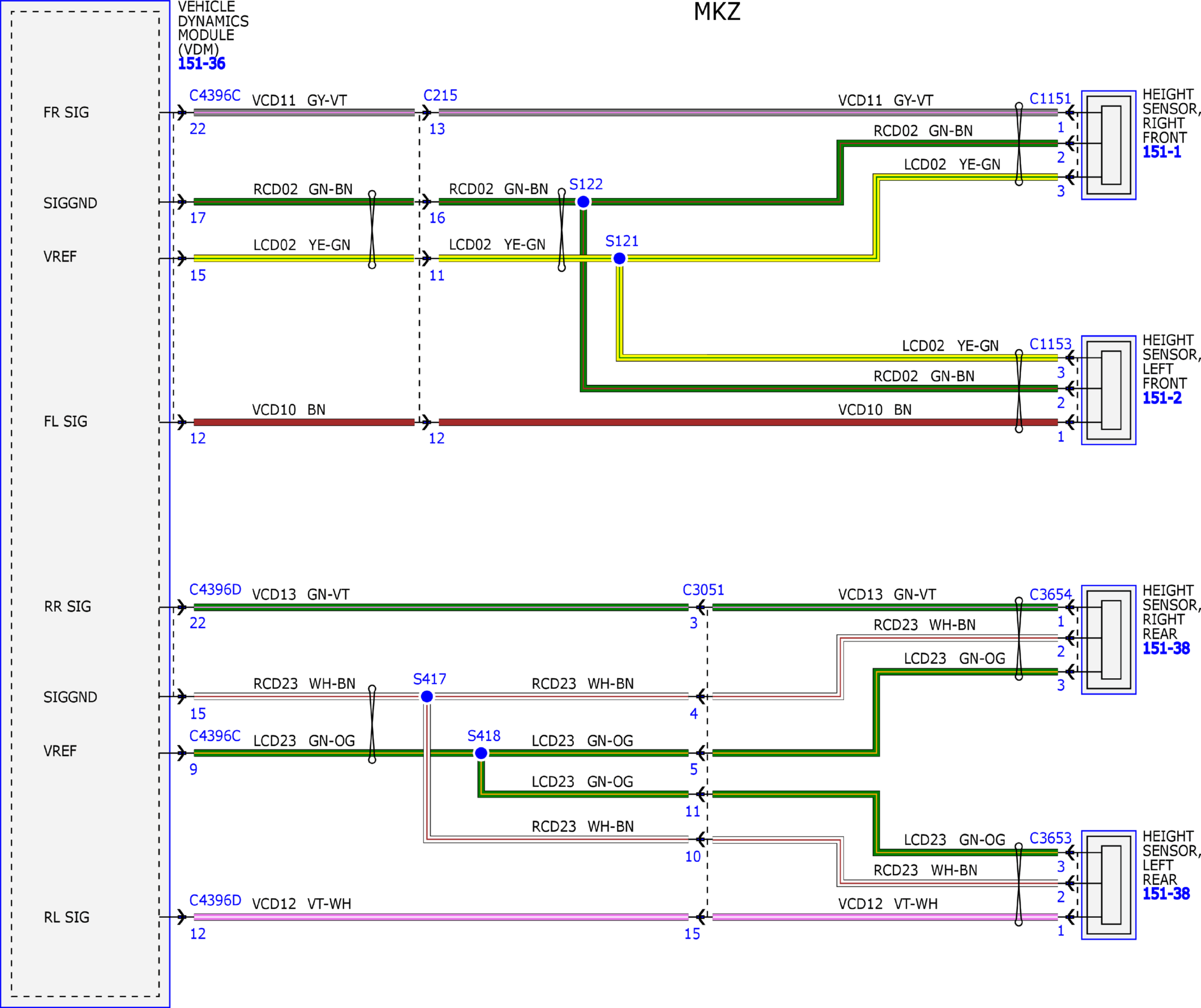

Fig 2: Vehicle Dynamic Suspension (2 of 3)

Courtesy of FORD MOTOR COMPANY

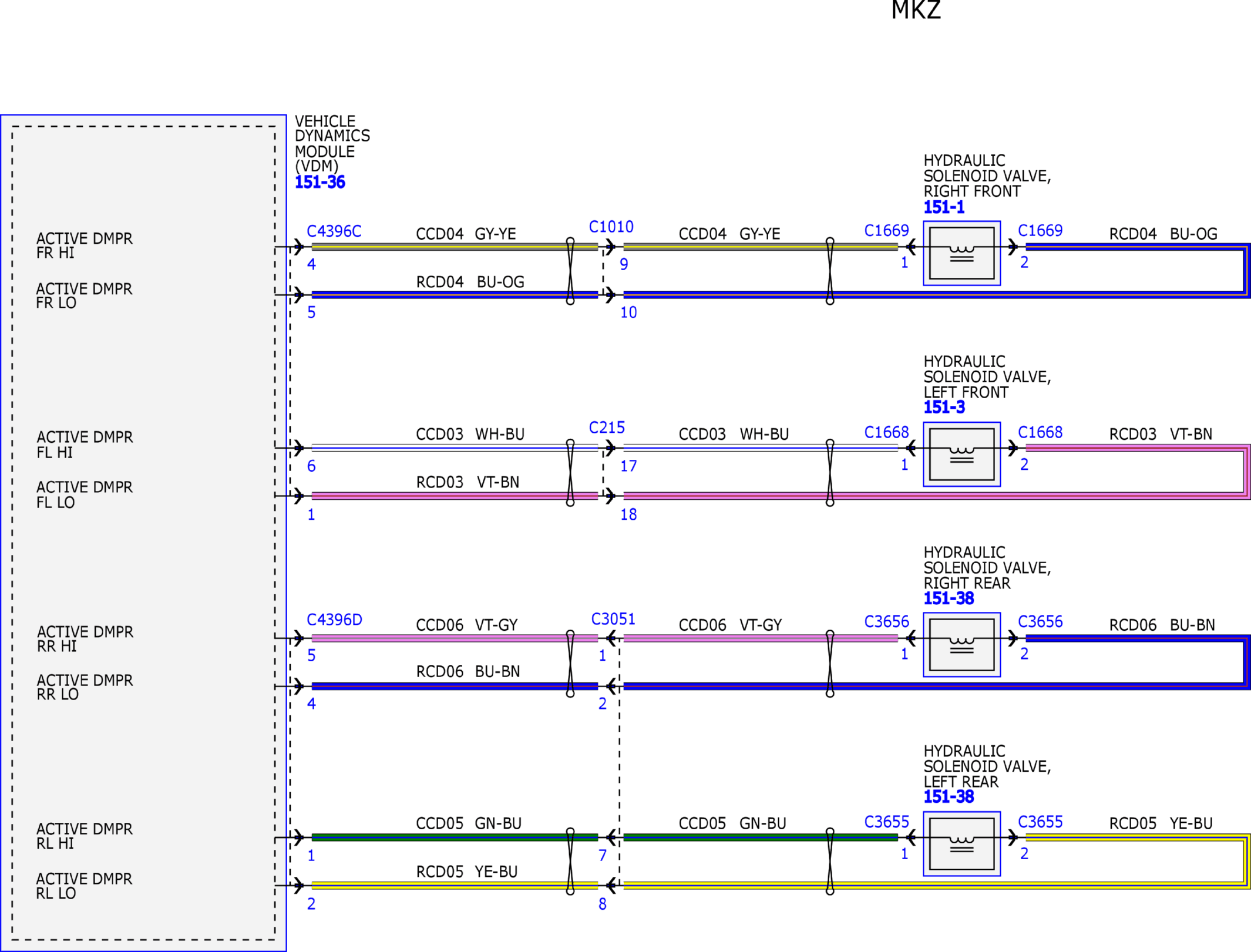

Fig 3: Vehicle Dynamic Suspension (3 of 3)

Courtesy of FORD MOTOR COMPANY
