Parking, Rear And License Lamps

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

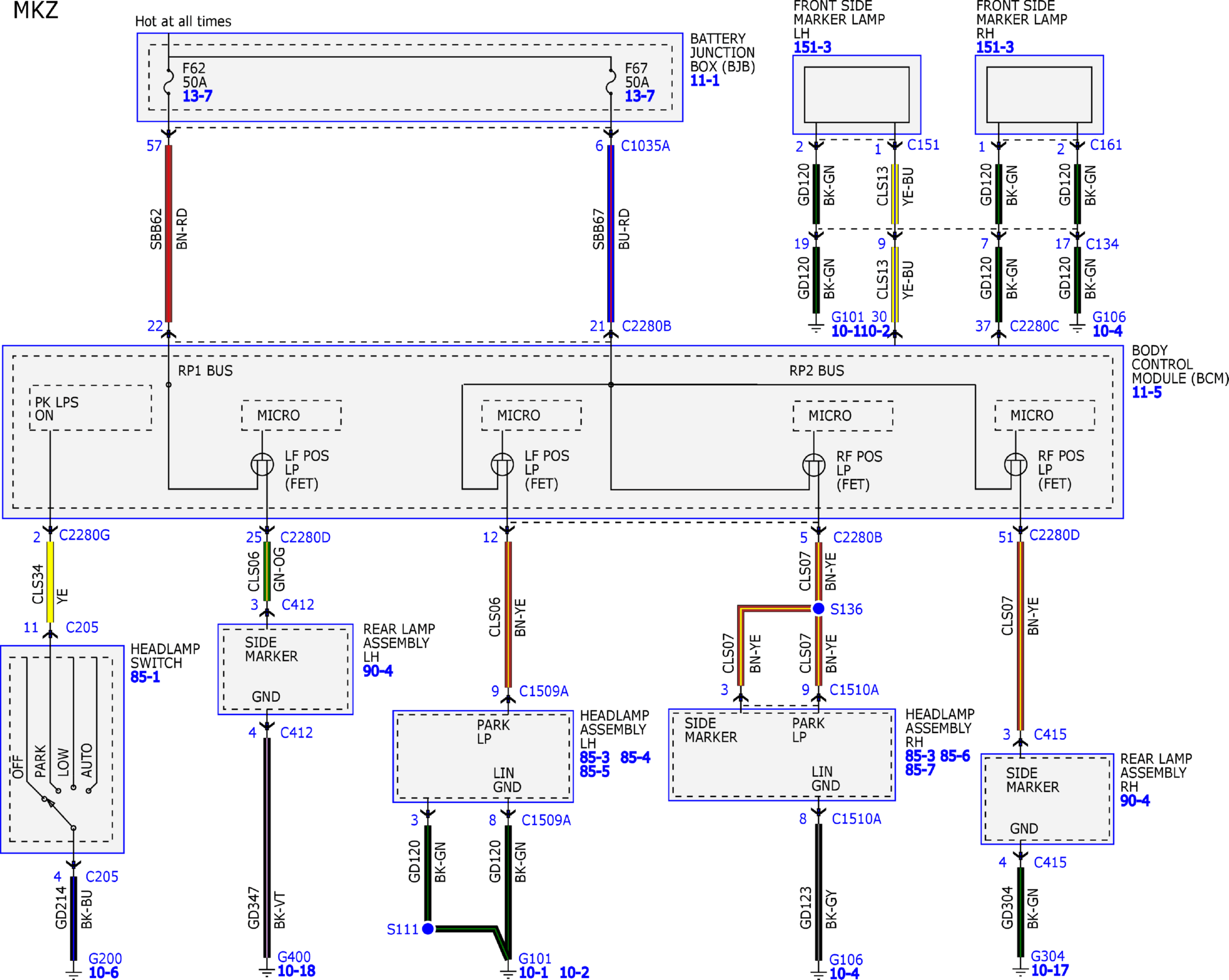

Fig 1: Parking, Rear and License Lamps (1 of 4)

Courtesy of FORD MOTOR COMPANY

Fig 2: Parking, Rear and License Lamps (2 of 4)

Courtesy of FORD MOTOR COMPANY

Fig 3: Parking, Rear and License Lamps (3 of 4)

Courtesy of FORD MOTOR COMPANY

Fig 4: Parking, Rear and License Lamps (4 of 4)

Courtesy of FORD MOTOR COMPANY
