Luggage Compartment Lid Moulding: Removal

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

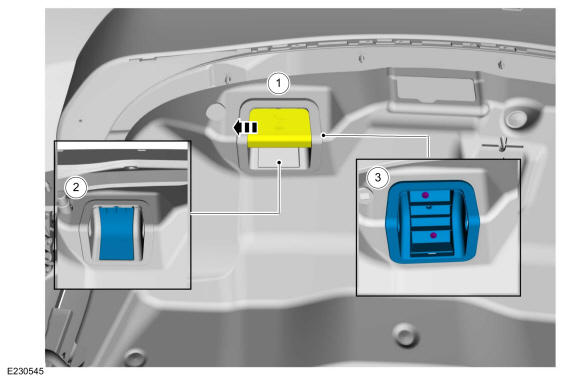

- Position aside the luggage compartment lid pull handle cover.
- Remove the trim cover.
- Remove the screws and the luggage compartment pull handle.

GFD72081

Courtesy of FORD MOTOR COMPANY

2.

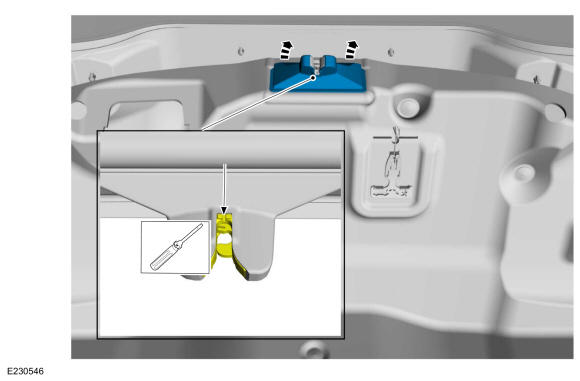

Insert a flat blade screwdriver in the housing slot and slowly pry down to disengage tabs on the latch. Pull down on the latch trim cover and remove.

GFD119501

Courtesy of FORD MOTOR COMPANY

3.

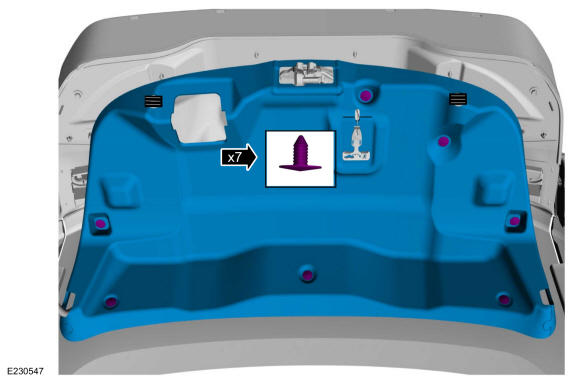

Remove the pushpins and the trim panel.

GFD119502

Courtesy of FORD MOTOR COMPANY

4.

Remove the reversing lamp. Refer to: Reversing Lamp .

5.

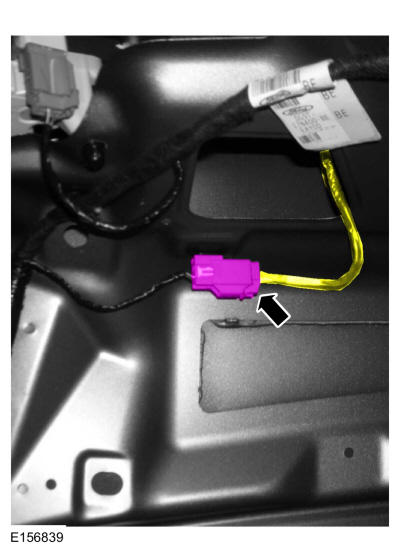

Disconnect the electrical connector and position aside the wiring harness.

GFD72136

Courtesy of FORD MOTOR COMPANY

6.

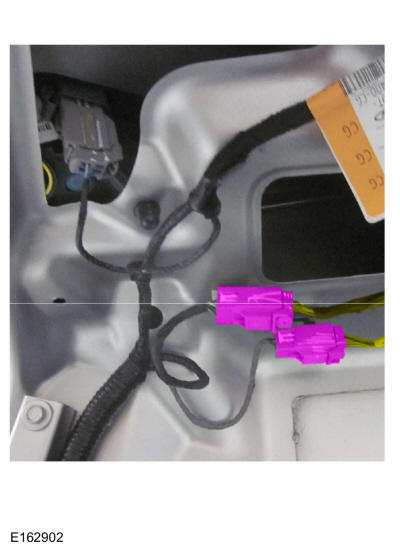

NOTE: If equipped with parking aid camera.

If equipped.Disconnect the electrical connectors and position aside the wiring harness.

GFD72137

Courtesy of FORD MOTOR COMPANY

7.

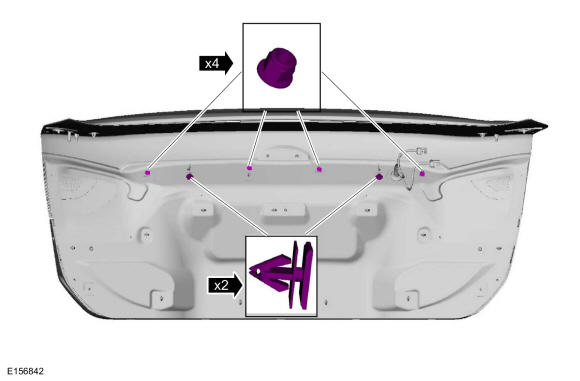

Remove the nuts and release the clips.
Torque: 36 lb.in (4.1 Nm)

GFD72138

Courtesy of FORD MOTOR COMPANY

8.

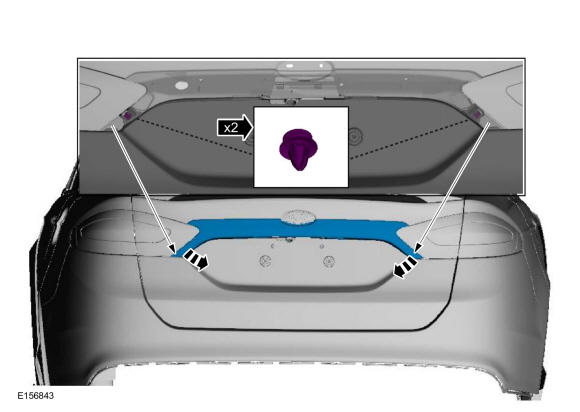

Release the clips and remove the upper liftgate moulding.

GFD72139

Courtesy of FORD MOTOR COMPANY

9.

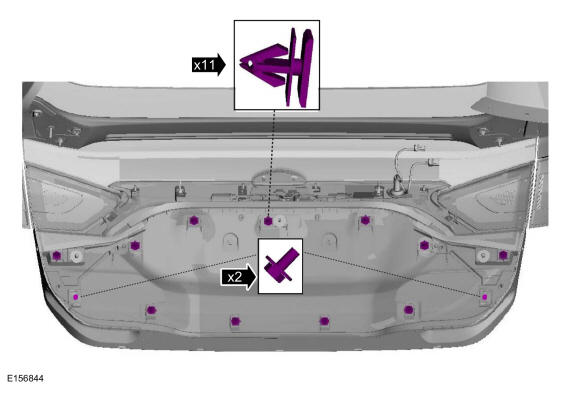

Remove the bolts and release the clips.
Torque: 19 lb.in (2.1 Nm)

GFD72140

Courtesy of FORD MOTOR COMPANY

10.

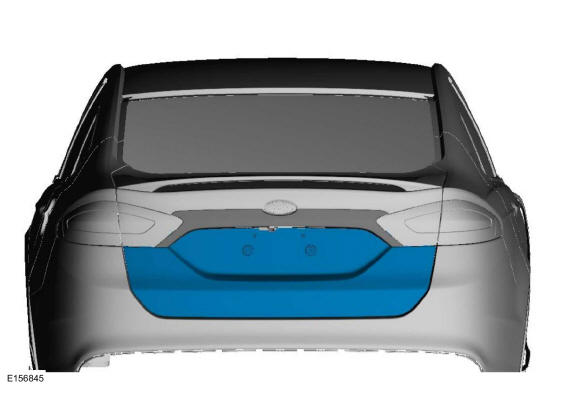

Remove the lower liftgate moulding.

GFD72141

Courtesy of FORD MOTOR COMPANY
