With Blind Spot Information System (BLIS) ®

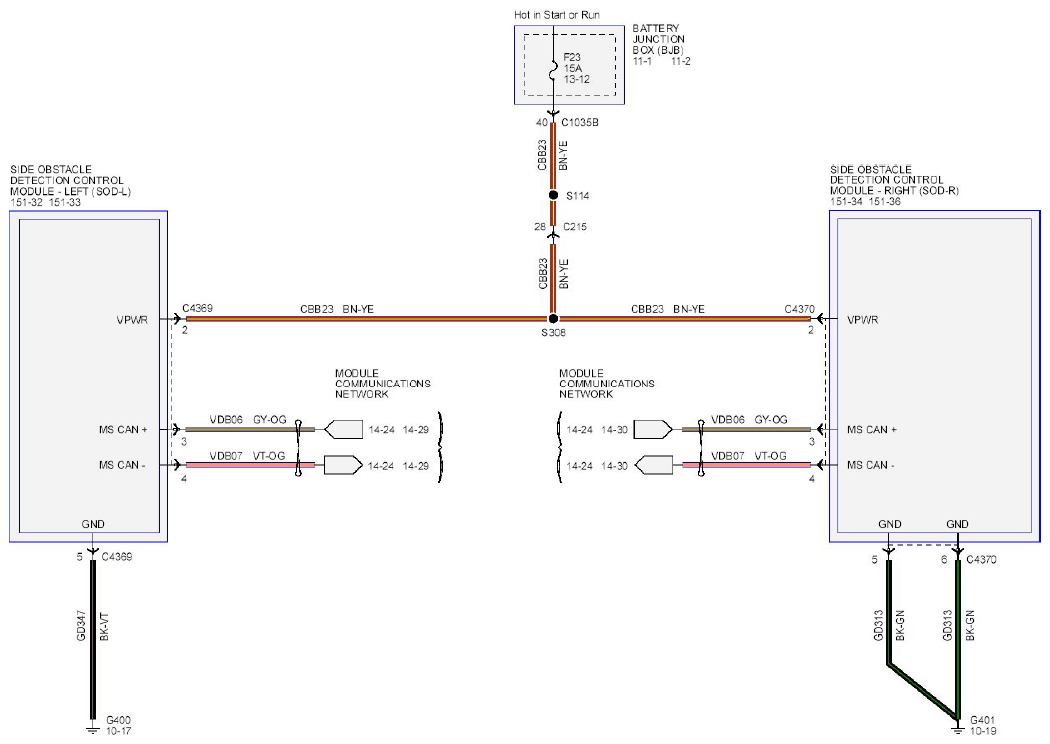

Fig 1: Vehicle Emergency Messaging System Wiring Diagram - With Blind Spot Information System (BLIS) ® (1 Of 3)
G08754328Courtesy of FORD MOTOR CO.

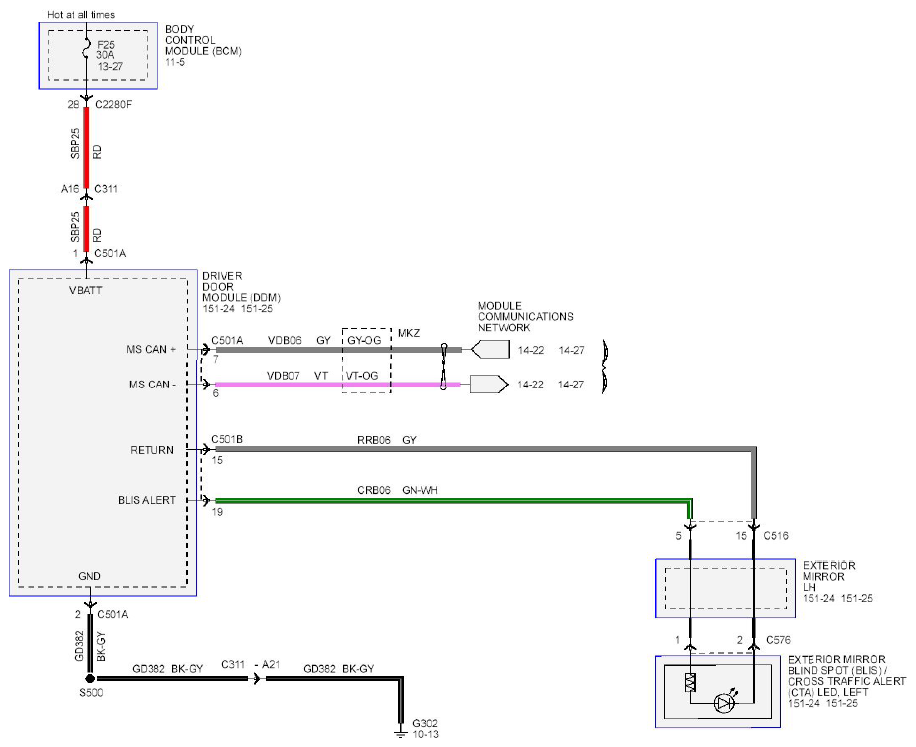

Fig 2: Vehicle Emergency Messaging System Wiring Diagram - With Blind Spot Information System (BLIS) ® (2 Of 3)
G08754329Courtesy of FORD MOTOR CO.

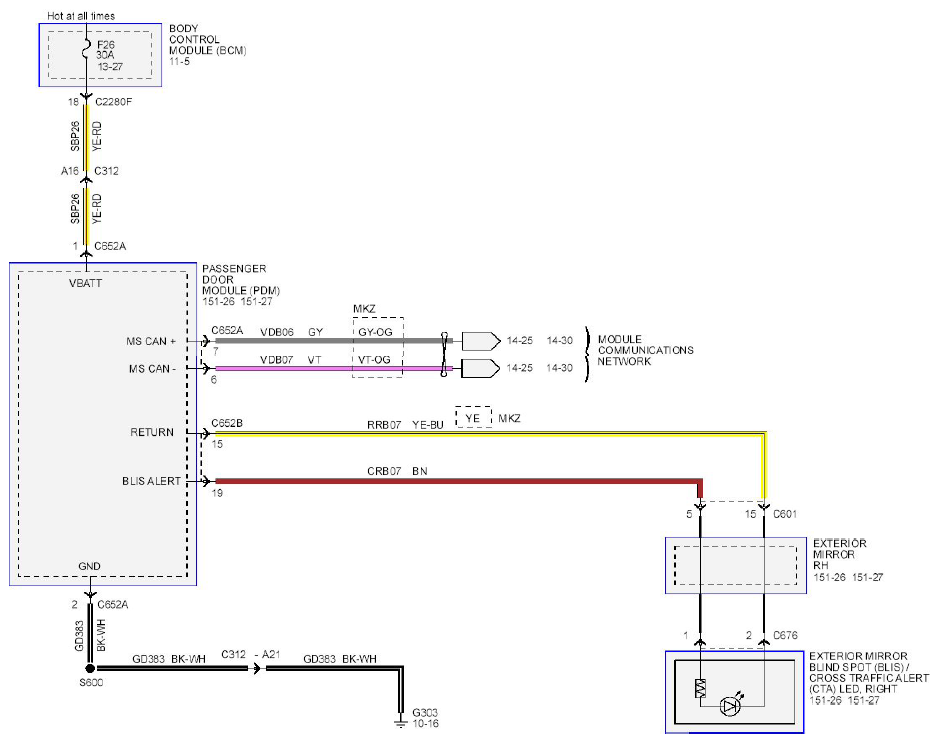

Fig 3: Vehicle Emergency Messaging System Wiring Diagram - With Blind Spot Information System (BLIS) ® (3 Of 3)
G08754330Courtesy of FORD MOTOR CO.
