Vehicle Dynamic Systems: Notes

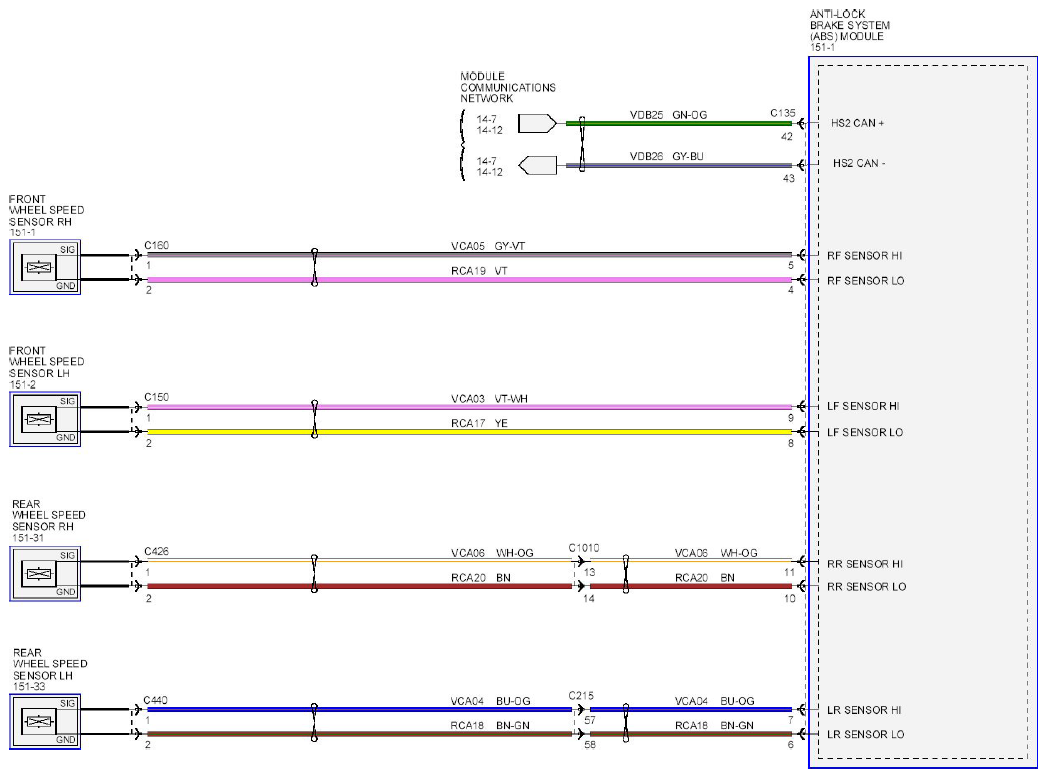

Fig 1: Vehicle Dynamic Systems Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

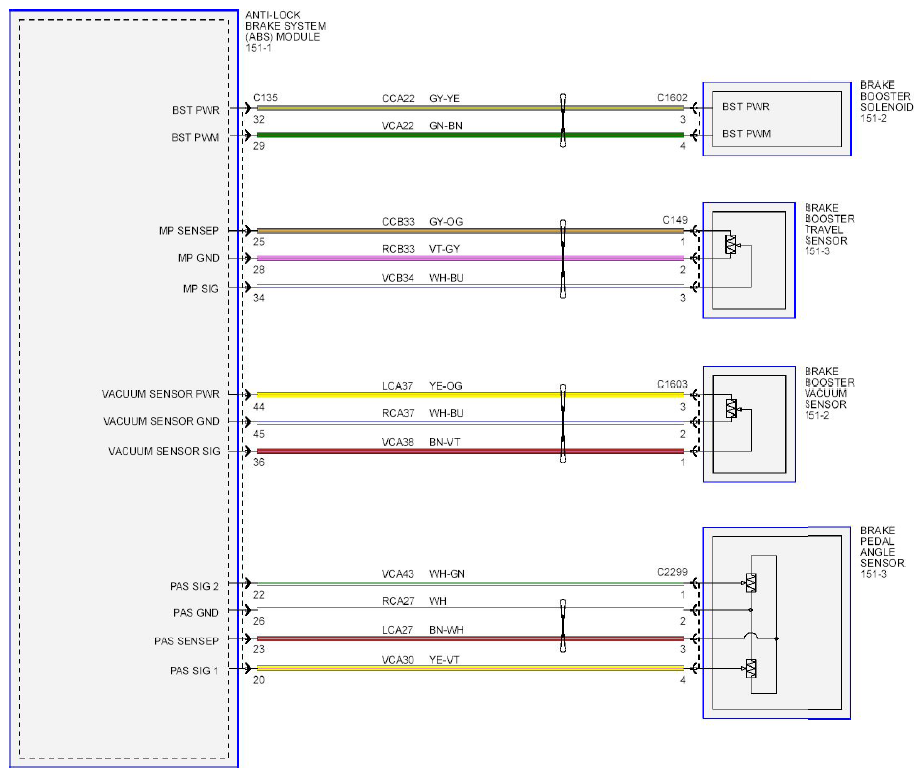

Fig 2: Vehicle Dynamic Systems Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

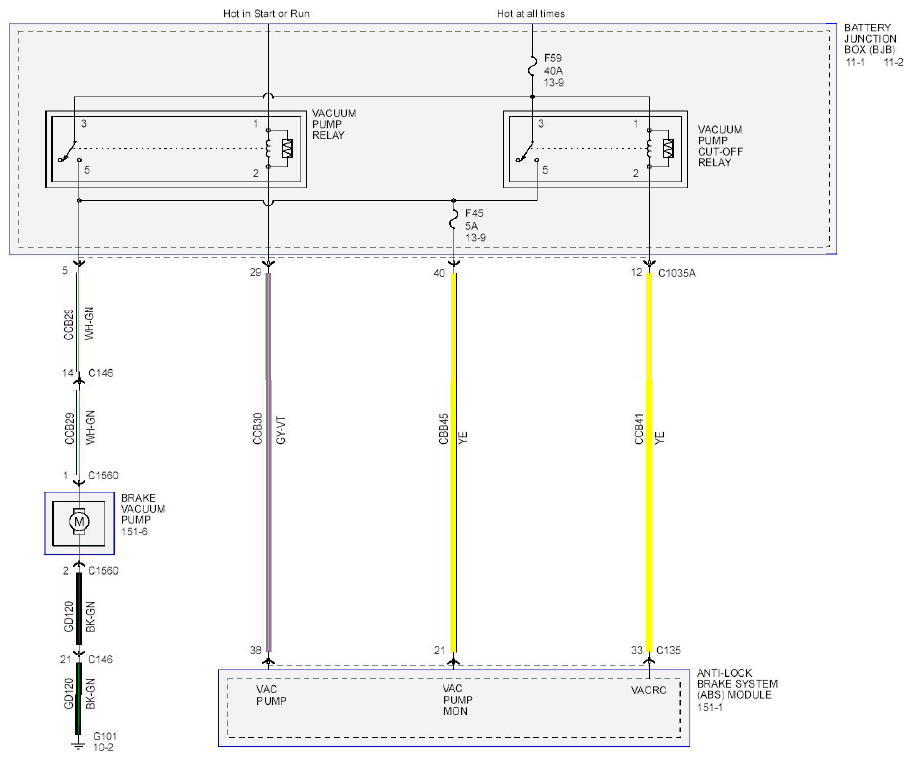

Fig 3: Vehicle Dynamic Systems Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

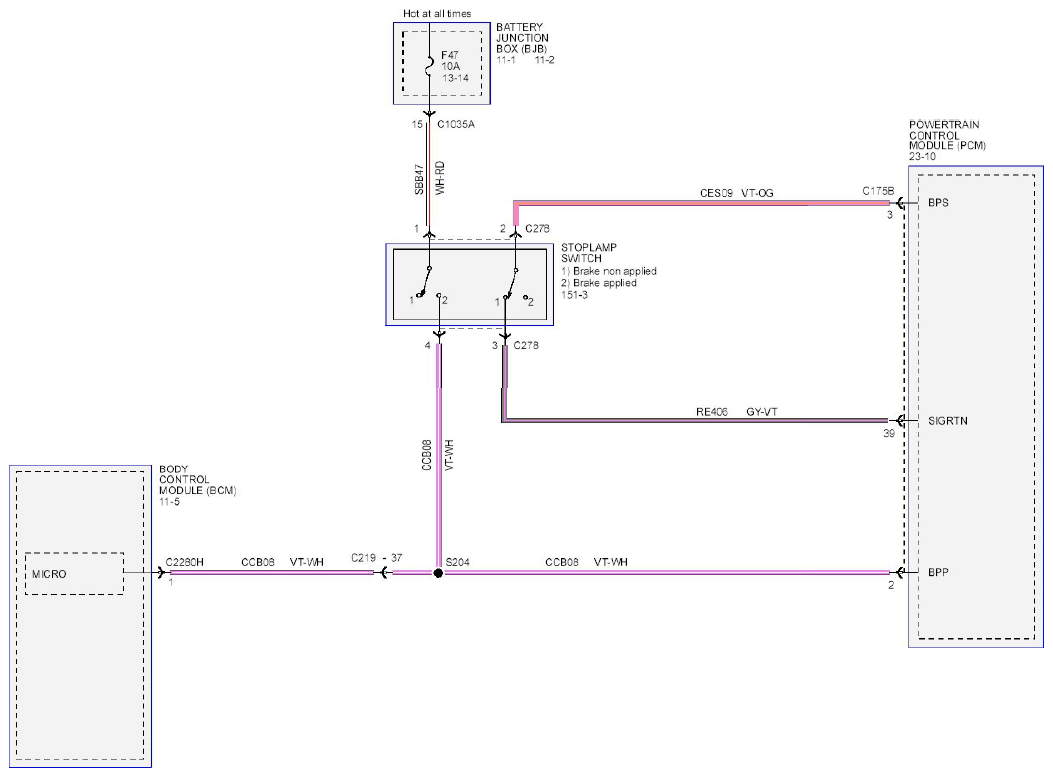

Fig 4: Vehicle Dynamic Systems Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

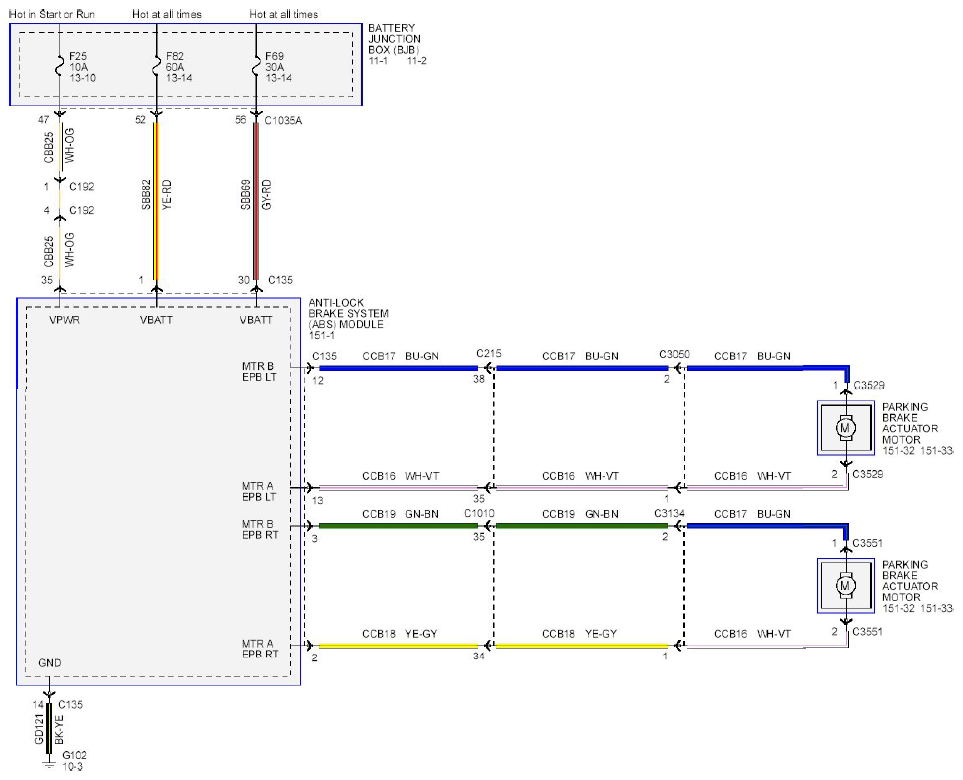

Fig 5: Vehicle Dynamic Systems Wiring Diagram - (5 Of 5)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
