Vehicle Dynamic Systems: Fusion

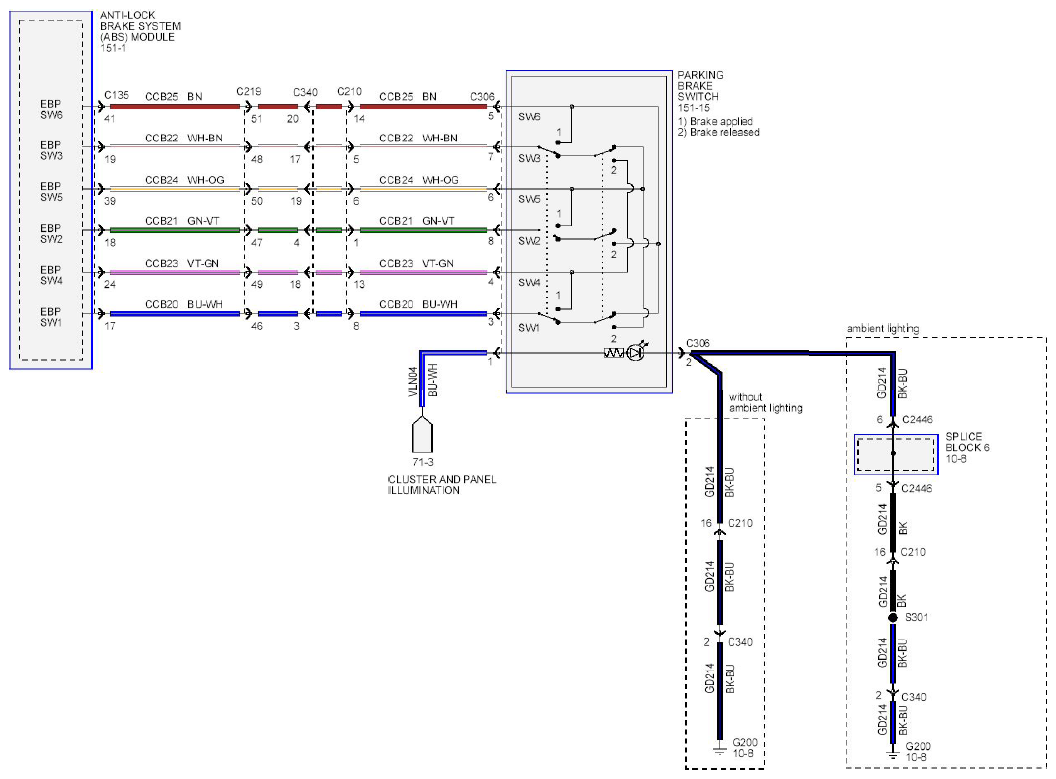

Fig 1: Vehicle Dynamic Systems Wiring Diagram - Fusion

G08754163

Courtesy of FORD MOTOR CO.
