Turn Signal_Stop_Hazard Lamps: Notes

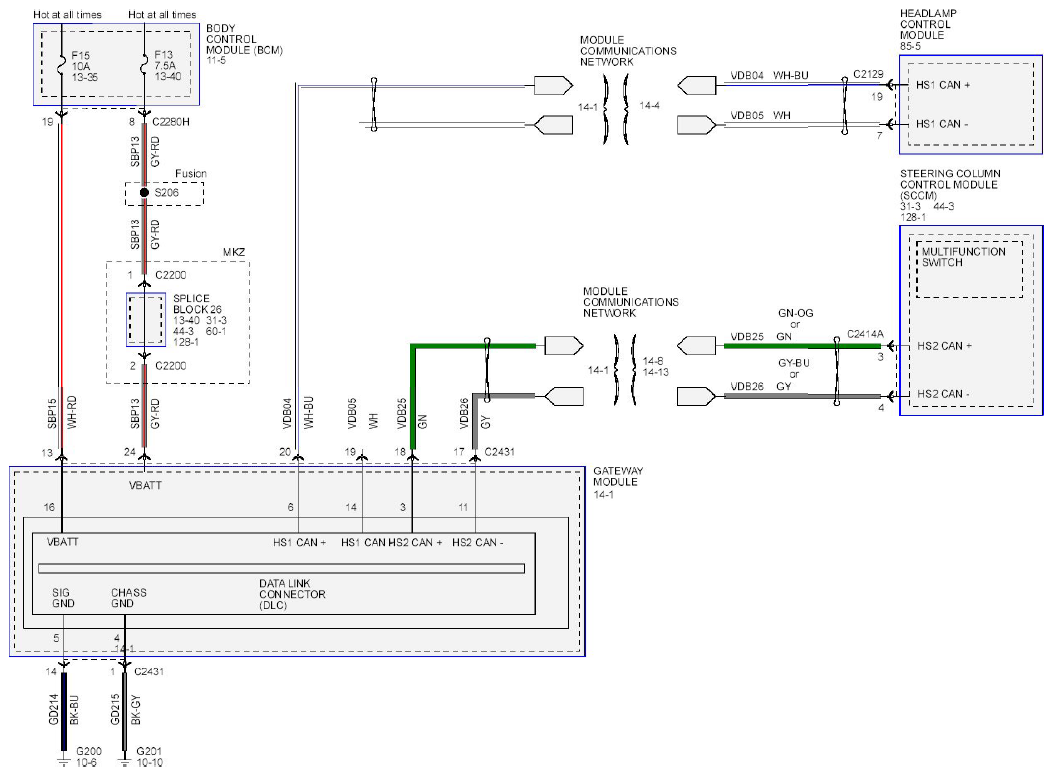

Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 4)
G08754206Courtesy of FORD MOTOR CO.

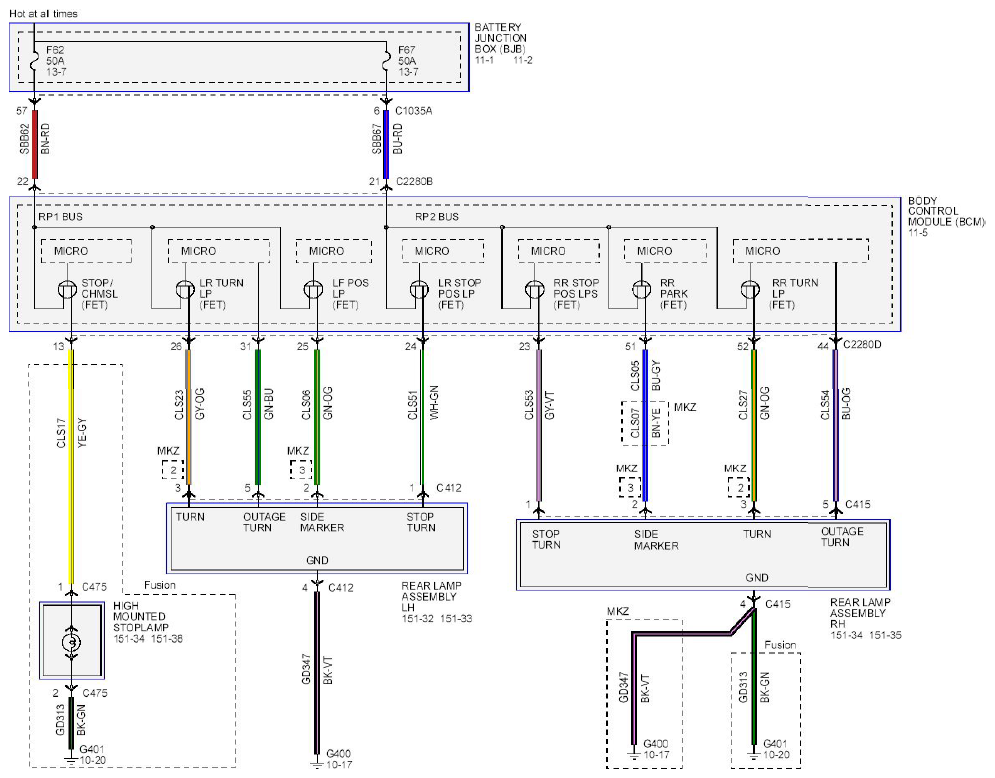

Fig 2: Turn Signal/Stop/Hazard Lamps Wiring Diagram - (2 Of 4)
G08754209Courtesy of FORD MOTOR CO.

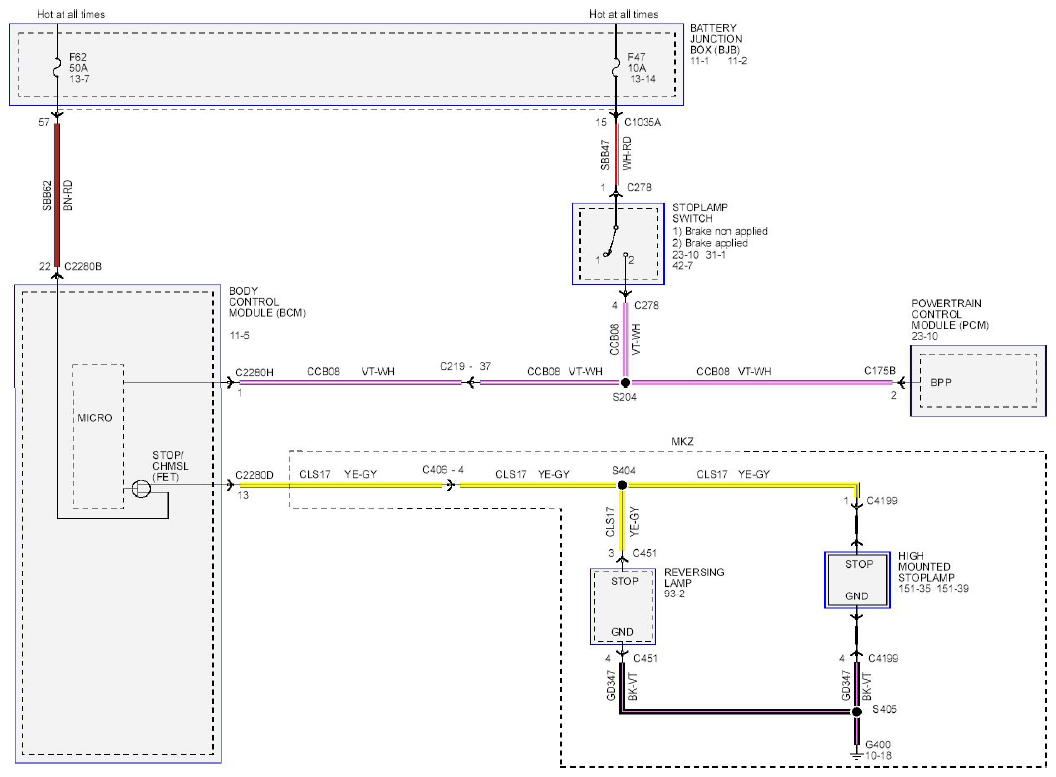

Fig 3: Turn Signal/Stop/Hazard Lamps Wiring Diagram - (3 Of 4)
G08754210Courtesy of FORD MOTOR CO.

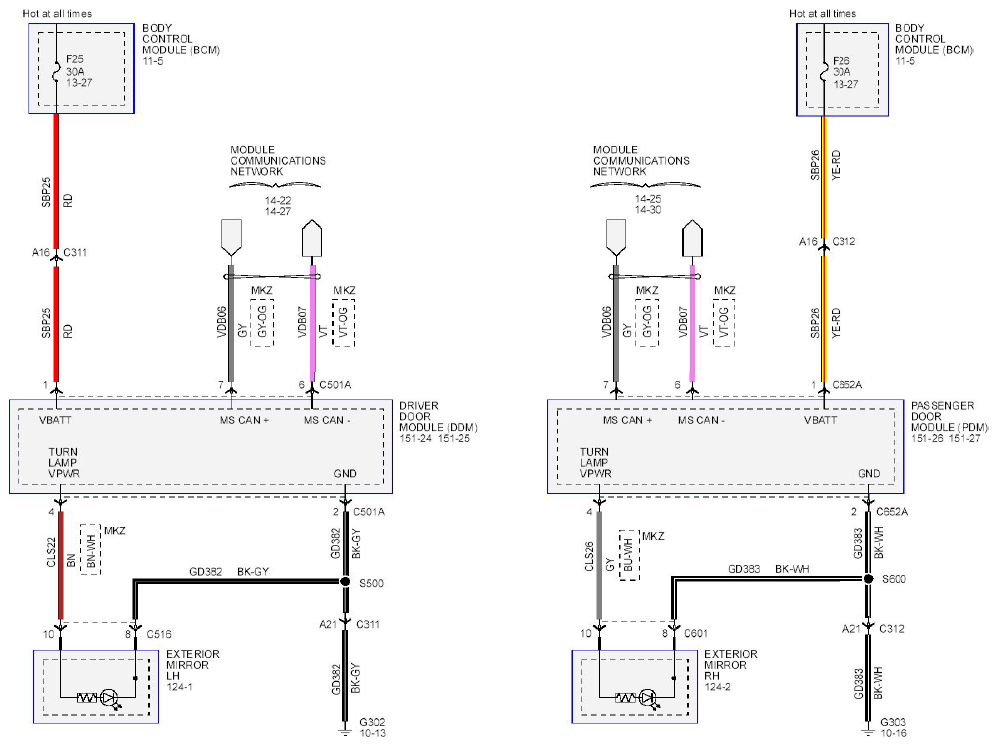

Fig 4: Turn Signal/Stop/Hazard Lamps Wiring Diagram - (4 Of 4)
G08754211Courtesy of FORD MOTOR CO.
