Fusion Hybrid Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Transmission Controls
>>
PHEV
Transmission Controls: PHEV

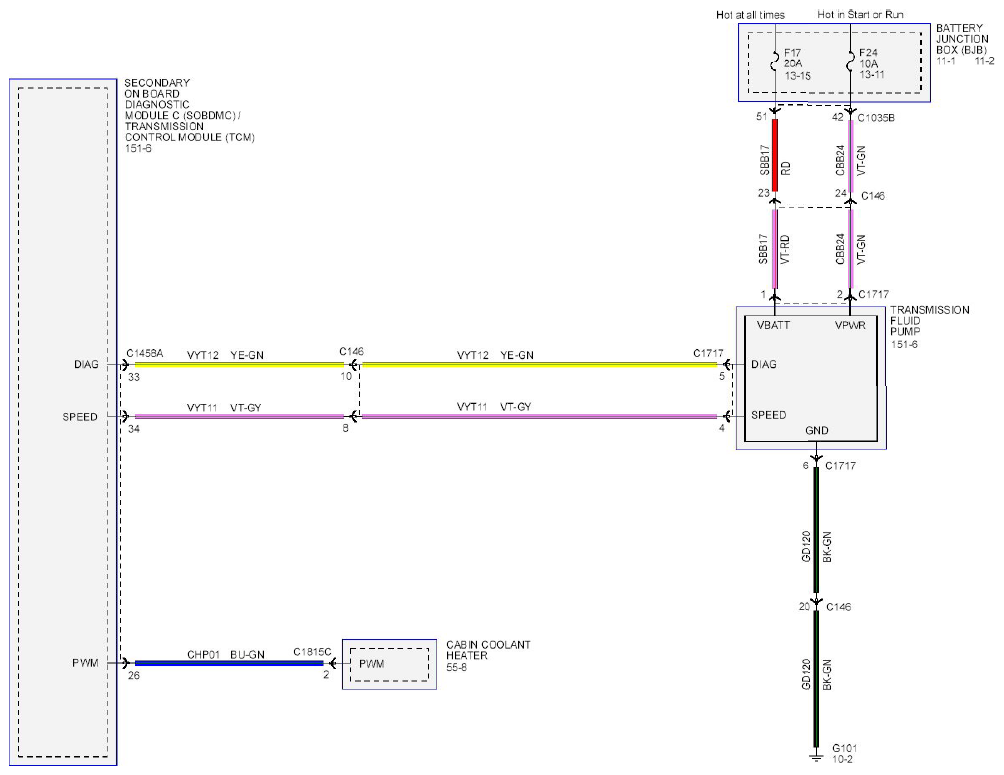

Fig 1: Transmission Controls Wiring Diagram - PHEV (1 Of 2)
Courtesy of FORD MOTOR CO.

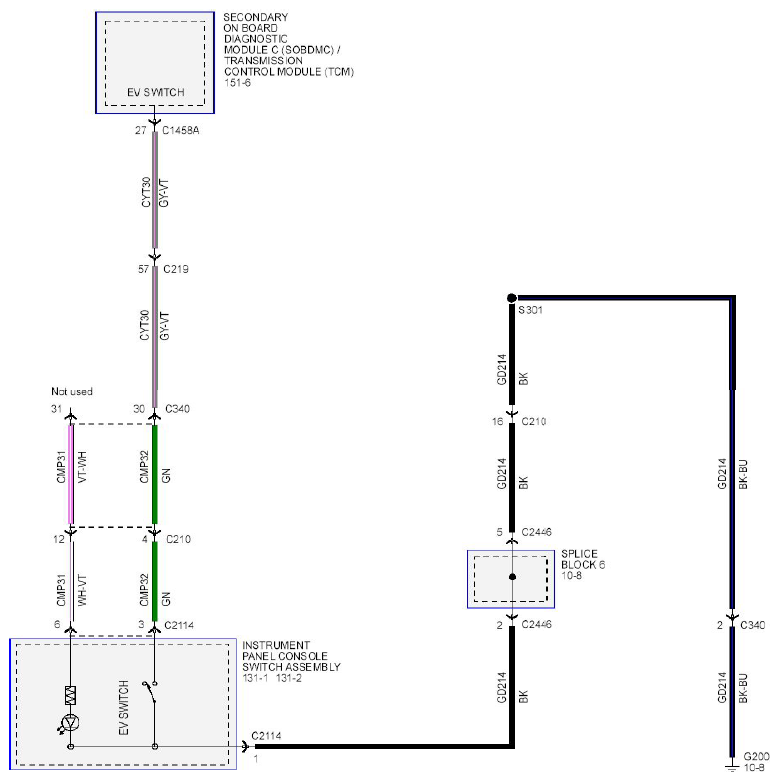

Fig 2: Transmission Controls Wiring Diagram - PHEV (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
