Transmission Controls: Notes

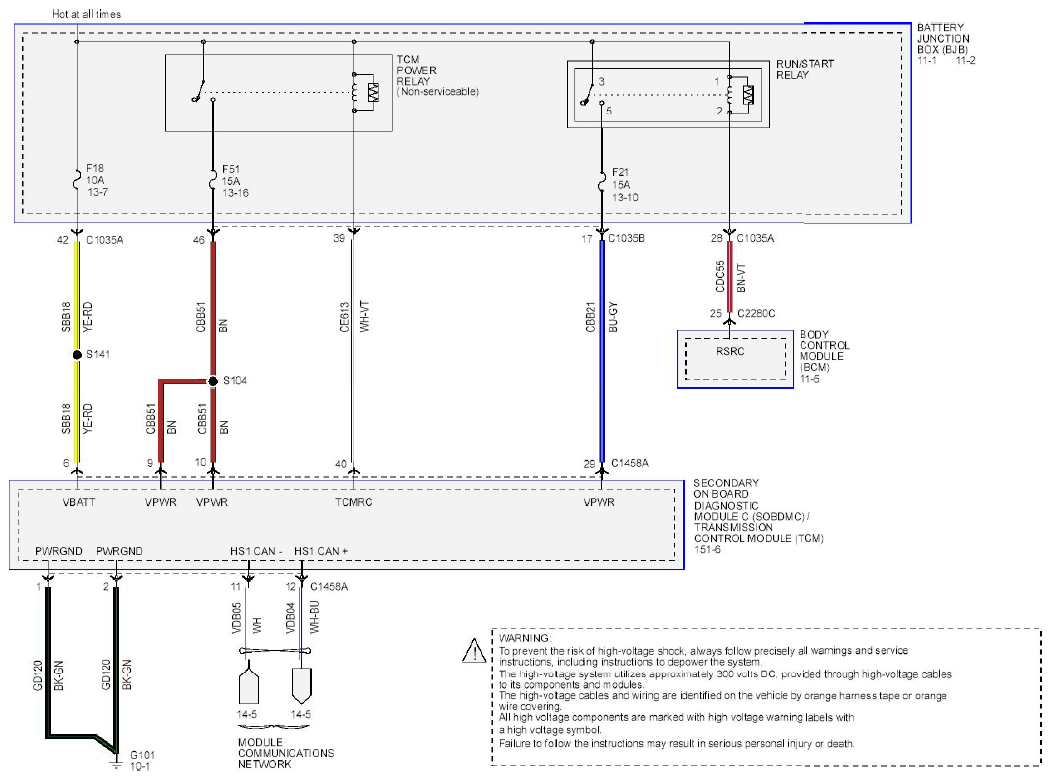

Fig 1: Transmission Controls Wiring Diagram (1 Of 4)
G08754134Courtesy of FORD MOTOR CO.

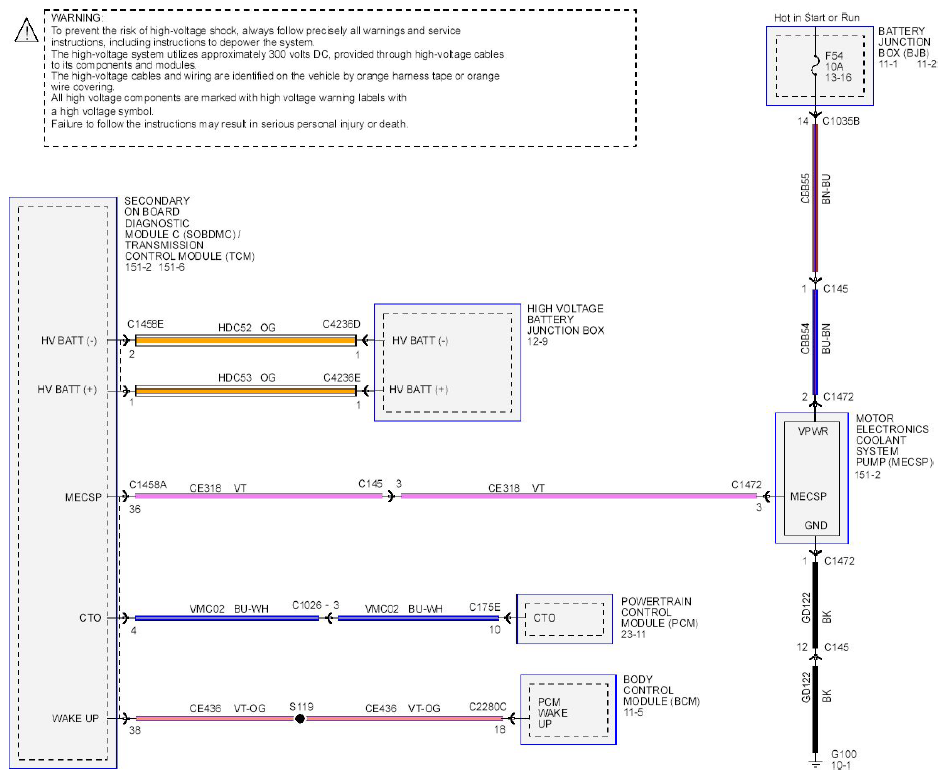

Fig 2: Transmission Controls Wiring Diagram (2 Of 4)
G08754135Courtesy of FORD MOTOR CO.

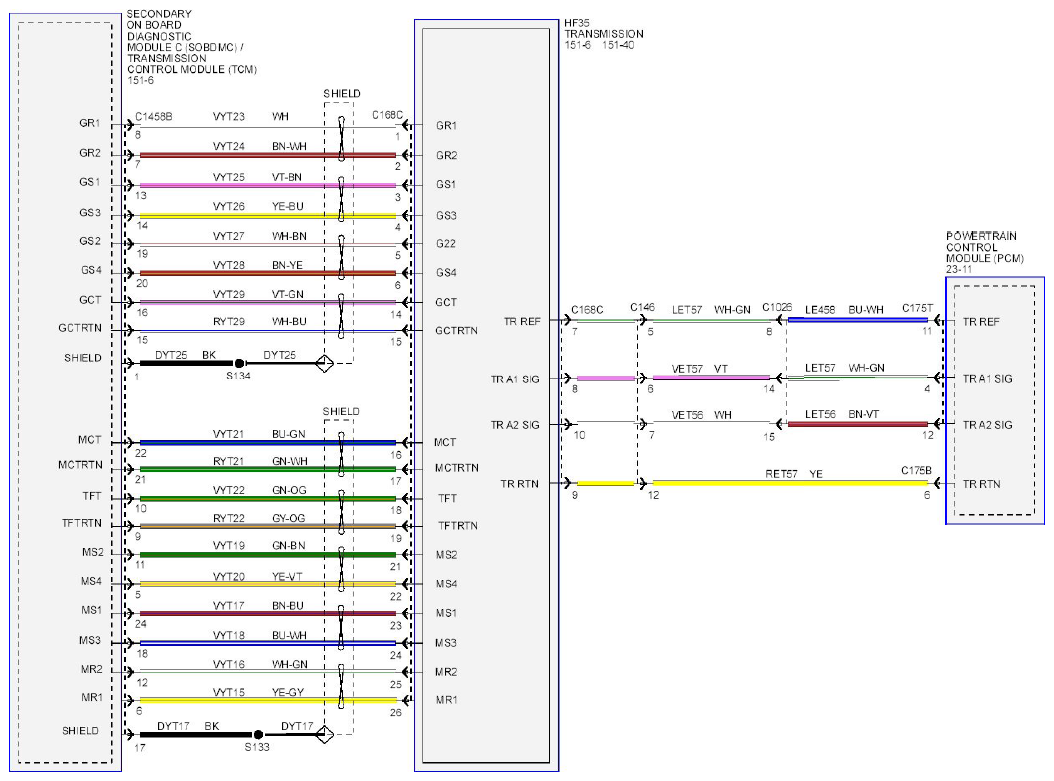

Fig 3: Transmission Controls Wiring Diagram (3 Of 4)
G08754136Courtesy of FORD MOTOR CO.

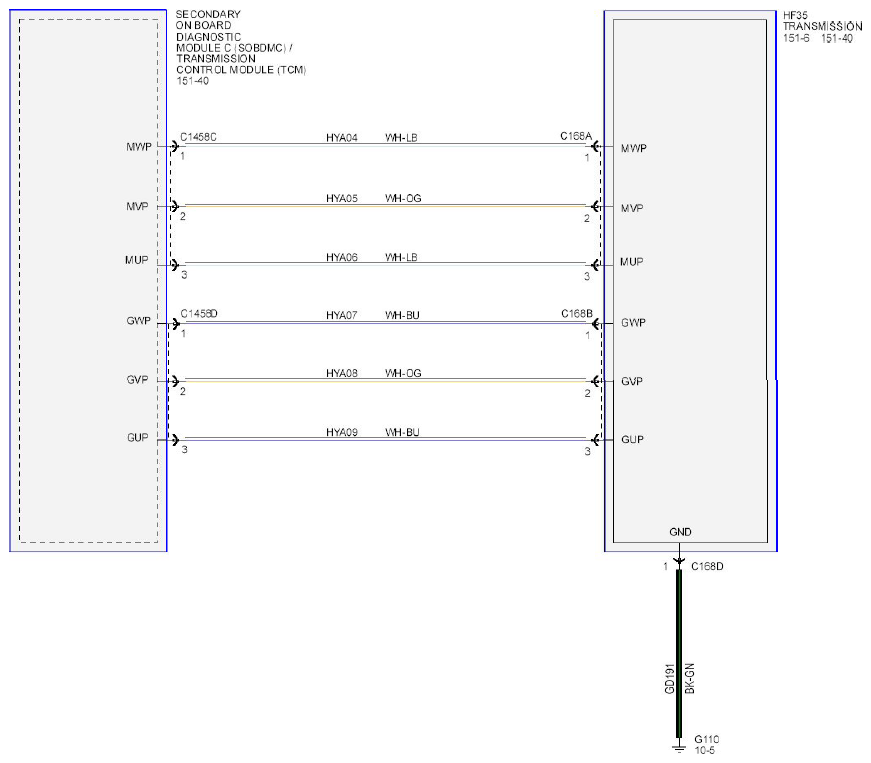

Fig 4: Transmission Controls Wiring Diagram (4 Of 4)
G08754137Courtesy of FORD MOTOR CO.
