Without Push Button Start

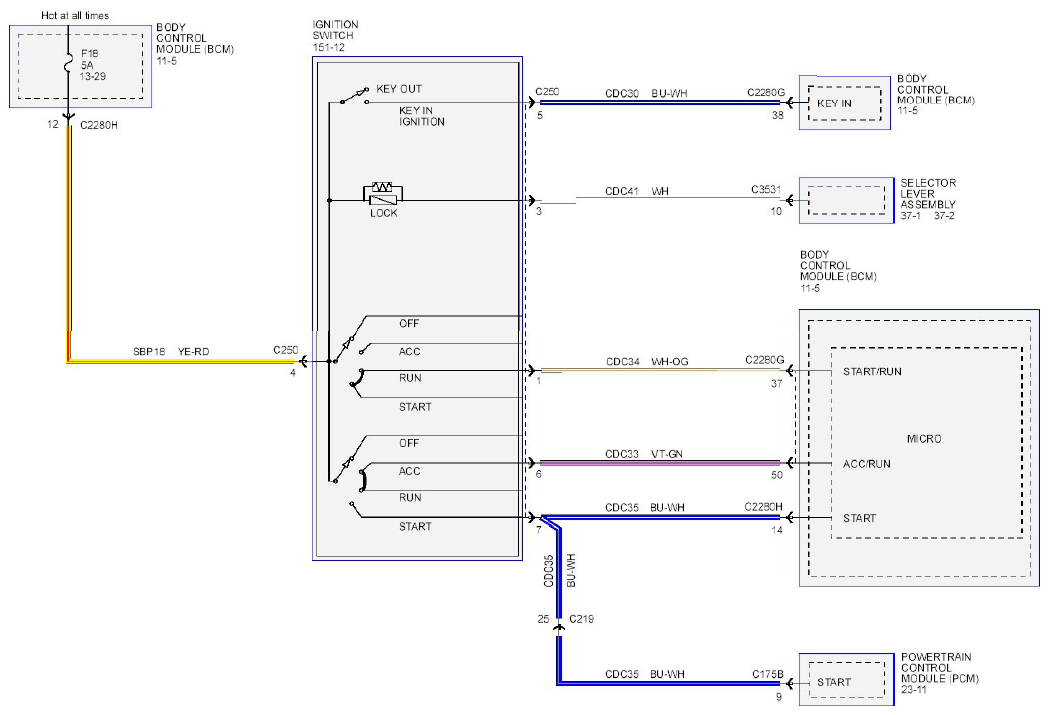

Fig 1: Starting System Wiring Diagram - Without Push Button Start

G08754120

Courtesy of FORD MOTOR CO.
