Starting System: MKZ

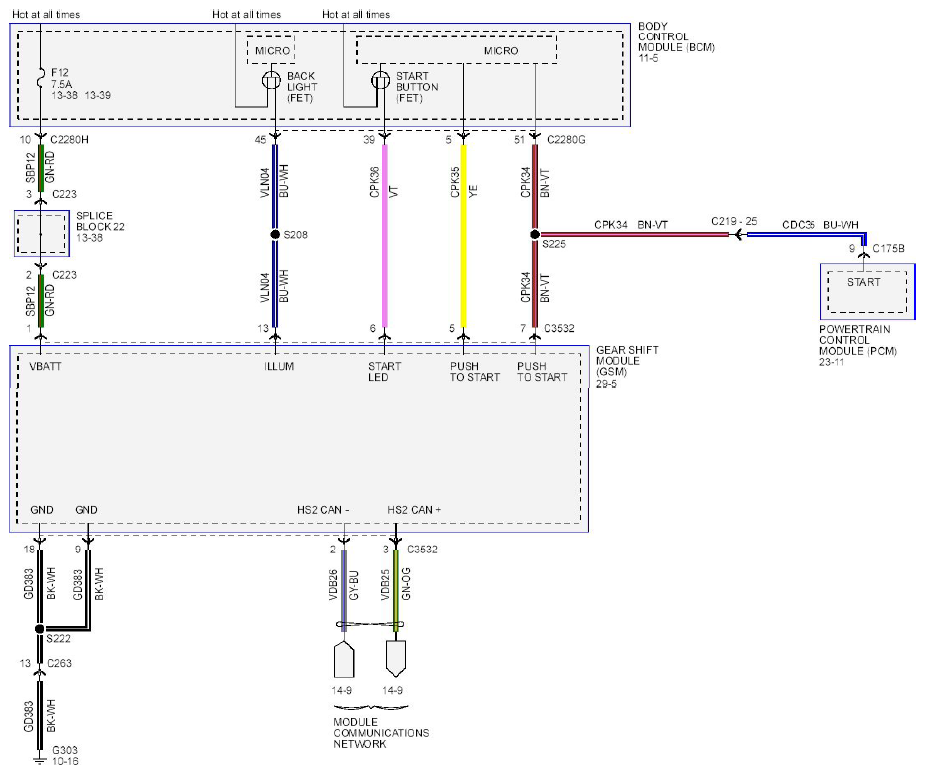

Fig 1: Starting System Wiring Diagram - MKZ

G08754122

Courtesy of FORD MOTOR CO.
