Fusion With Push Button Start

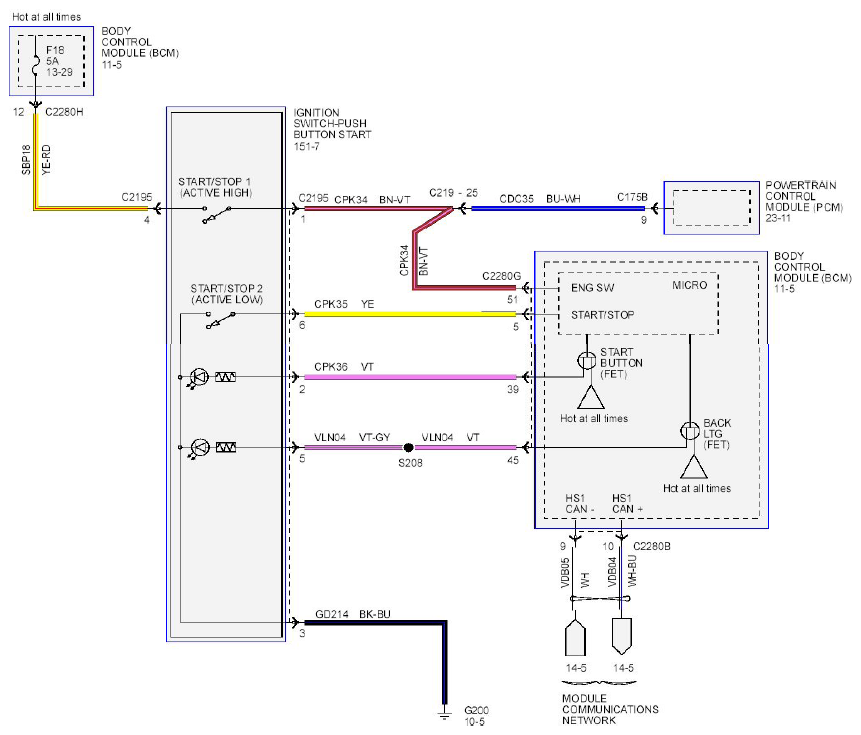

Fig 1: Starting System Wiring Diagram - Fusion, With Push Button Start

G08754121

Courtesy of FORD MOTOR CO.
