Fusion Without Push Button Start

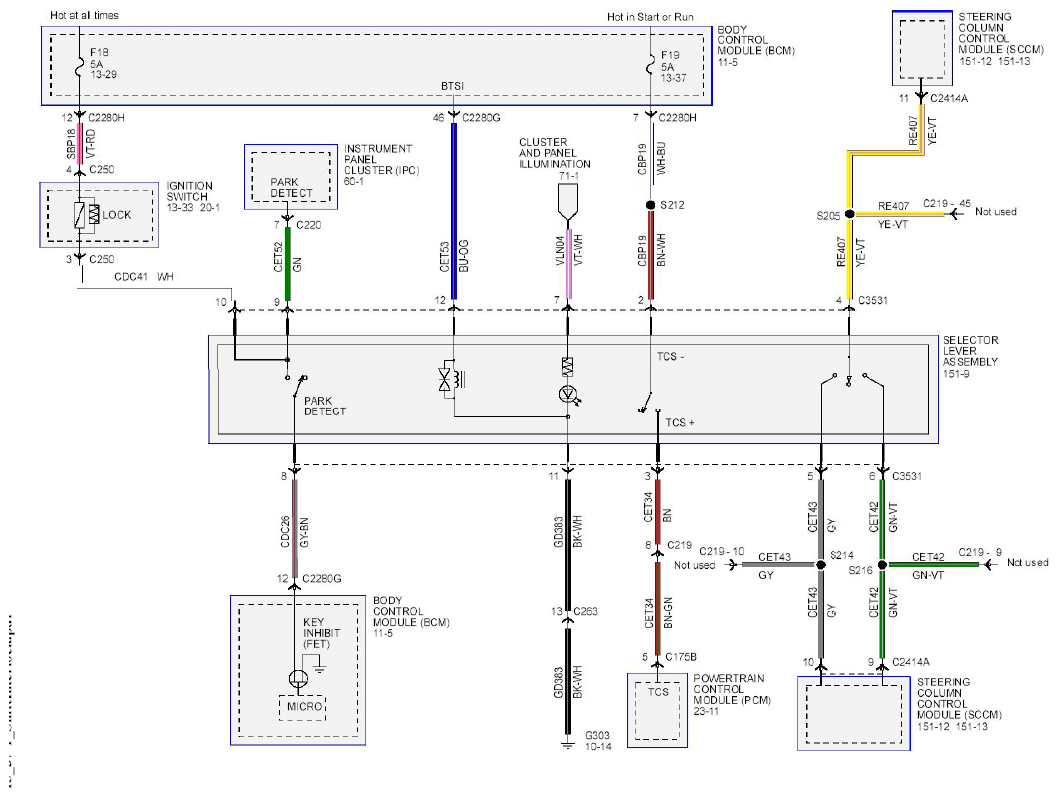

Fig 1: Shift Interlock Wiring Diagram - FUSION, Without Push Button Start

G08754153

Courtesy of FORD MOTOR CO.
