Fusion With Push Button Start

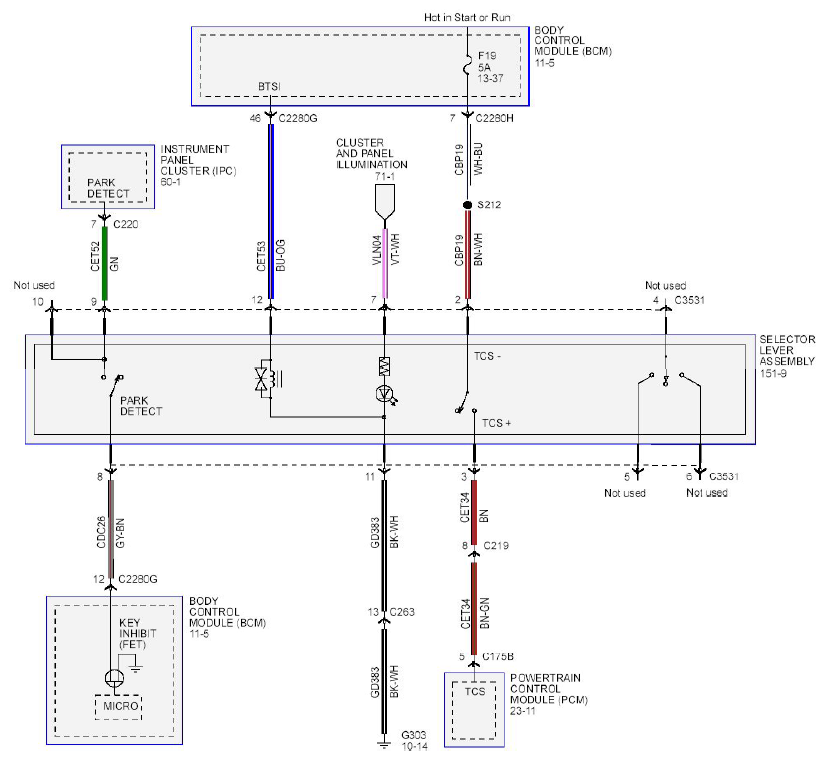

Fig 1: Shift Interlock Wiring Diagram - FUSION, With Push Button Start

G08754154

Courtesy of FORD MOTOR CO.
