With Keyless Entry With Push Button Start

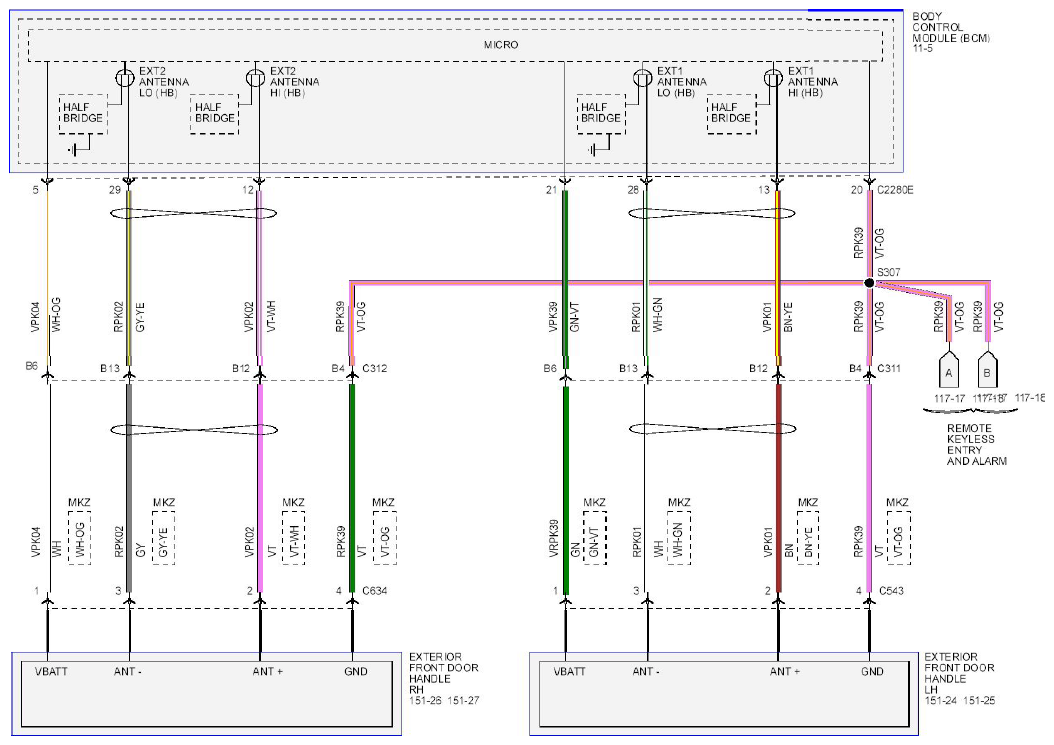

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - With Keyless Entry With Push Button Start (1 Of 2)
G08754256Courtesy of FORD MOTOR CO.

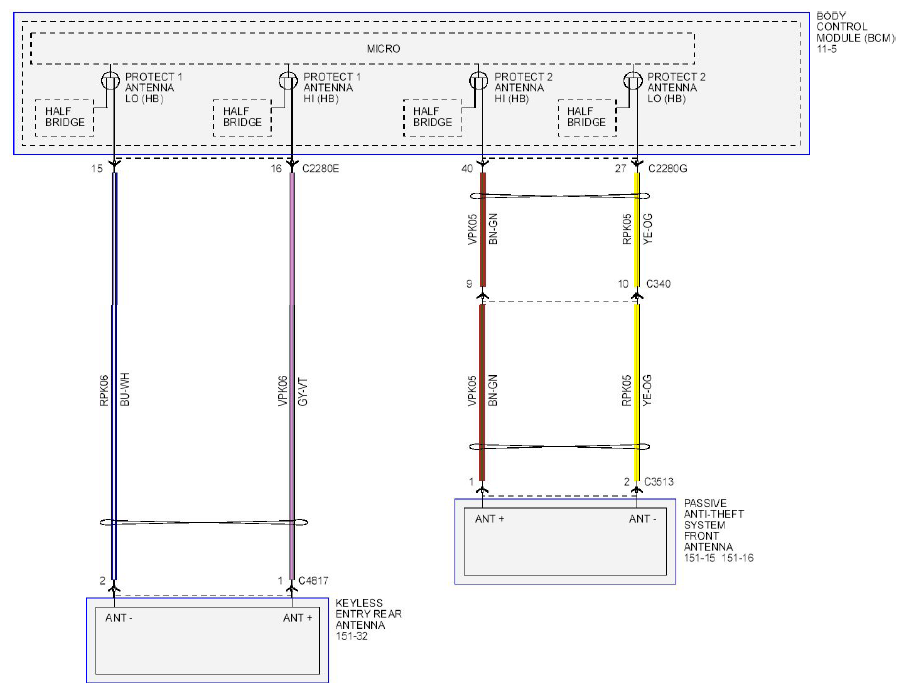

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram - MKZ, With Keyless Entry With Push Button Start (2 Of 2)
G08754259Courtesy of FORD MOTOR CO.
