Remote Keyless Entry and Alarm
>>
Notes
Remote Keyless Entry and Alarm: Notes

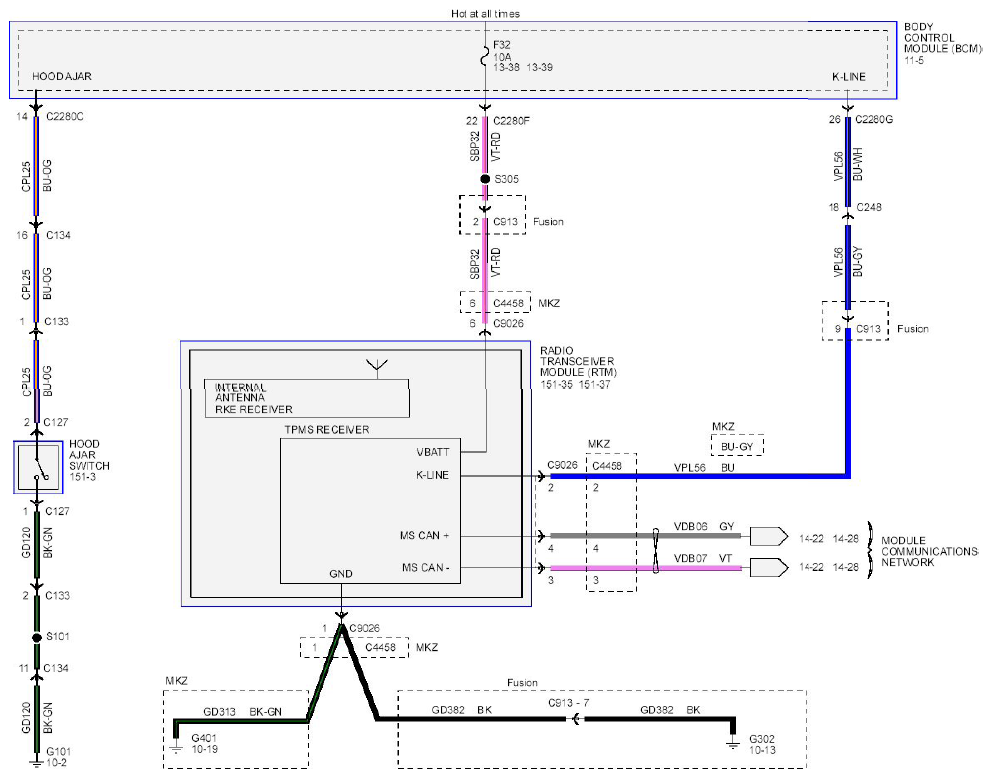

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - (1 Of 6)
Courtesy of FORD MOTOR CO.

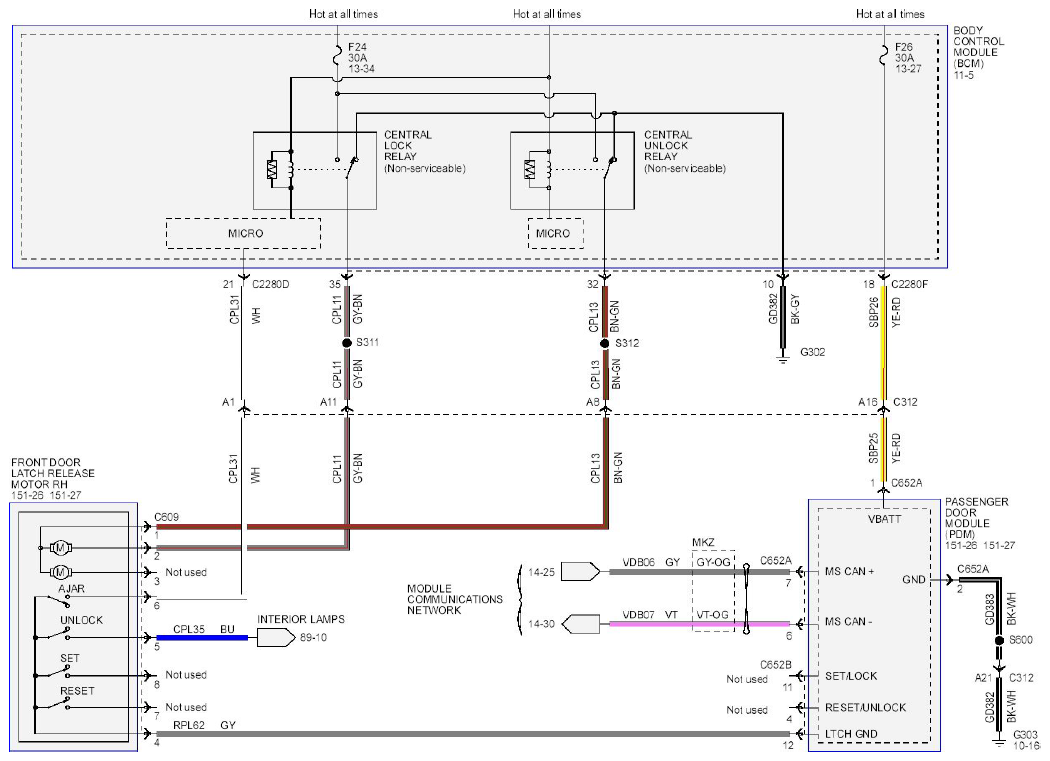

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram - (2 Of 6)
Courtesy of FORD MOTOR CO.

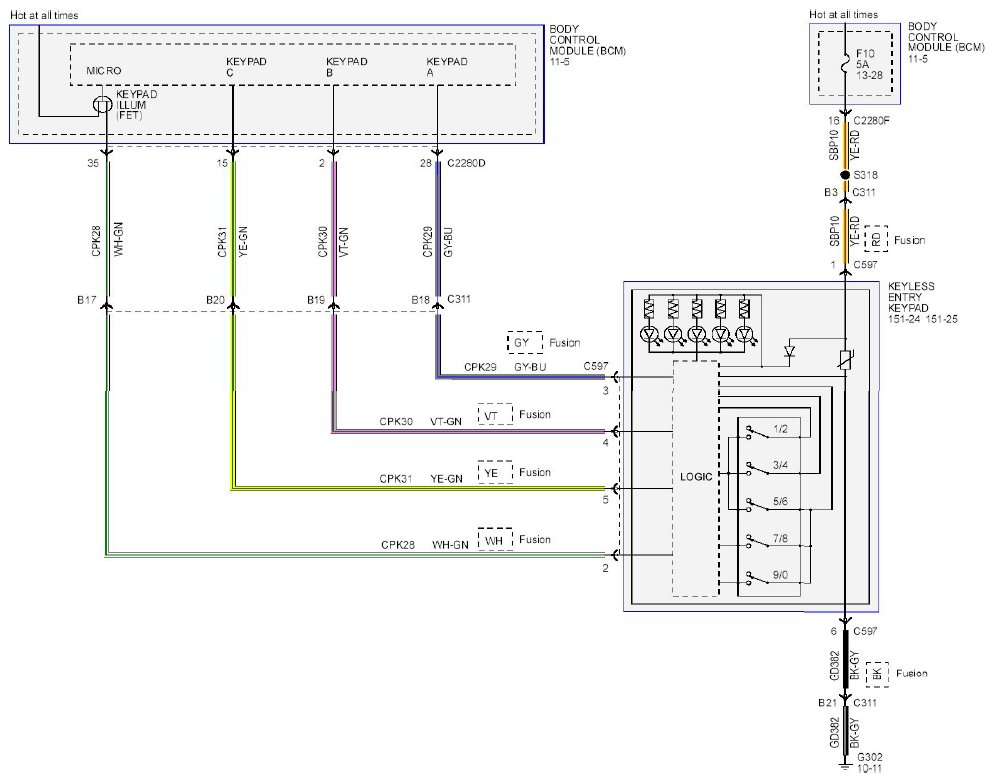

Fig 3: Remote Keyless Entry And Alarm Wiring Diagram - (3 Of 6)
Courtesy of FORD MOTOR CO.

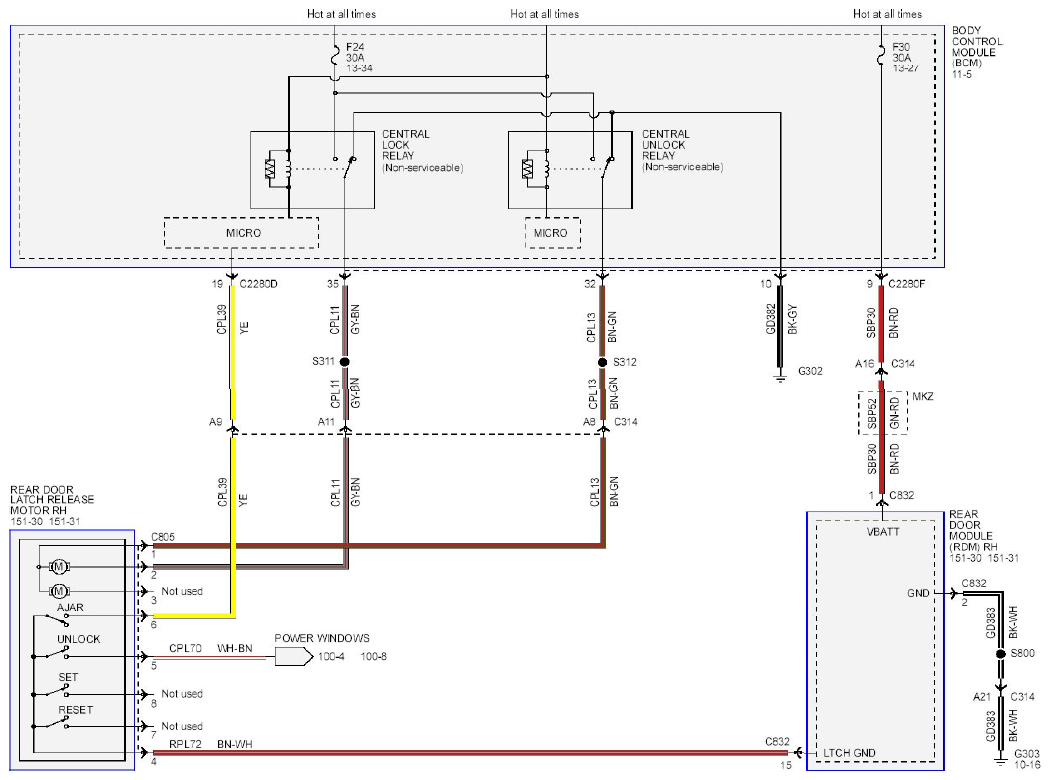

Fig 4: Remote Keyless Entry And Alarm Wiring Diagram - (4 Of 6)
Courtesy of FORD MOTOR CO.

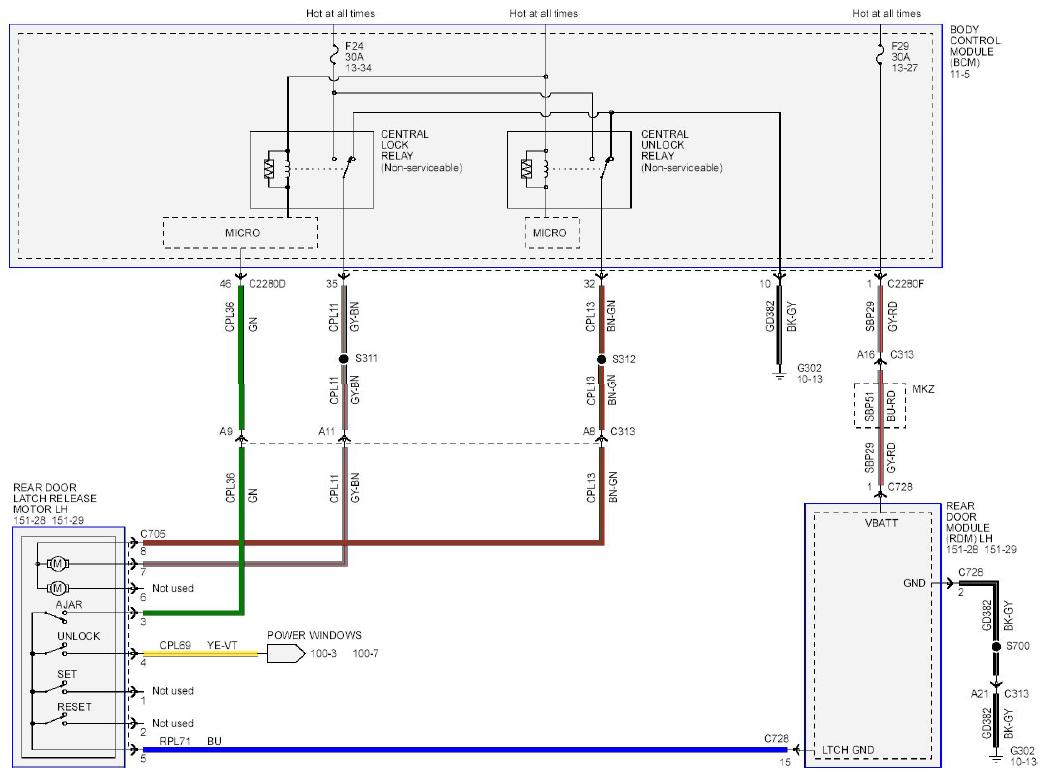

Fig 5: Remote Keyless Entry And Alarm Wiring Diagram - (5 Of 6)
Courtesy of FORD MOTOR CO.

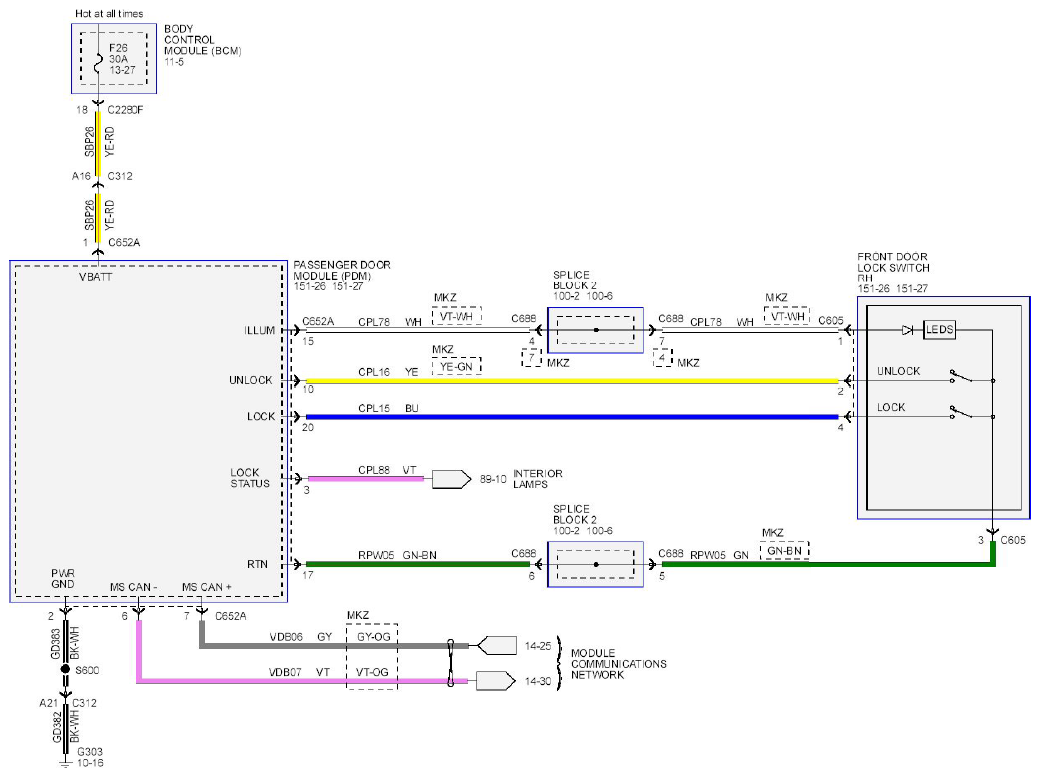

Fig 6: Remote Keyless Entry And Alarm Wiring Diagram - (6 Of 6)
Courtesy of FORD MOTOR CO.
