MKZ - With Keyless Entry With Push Button Start

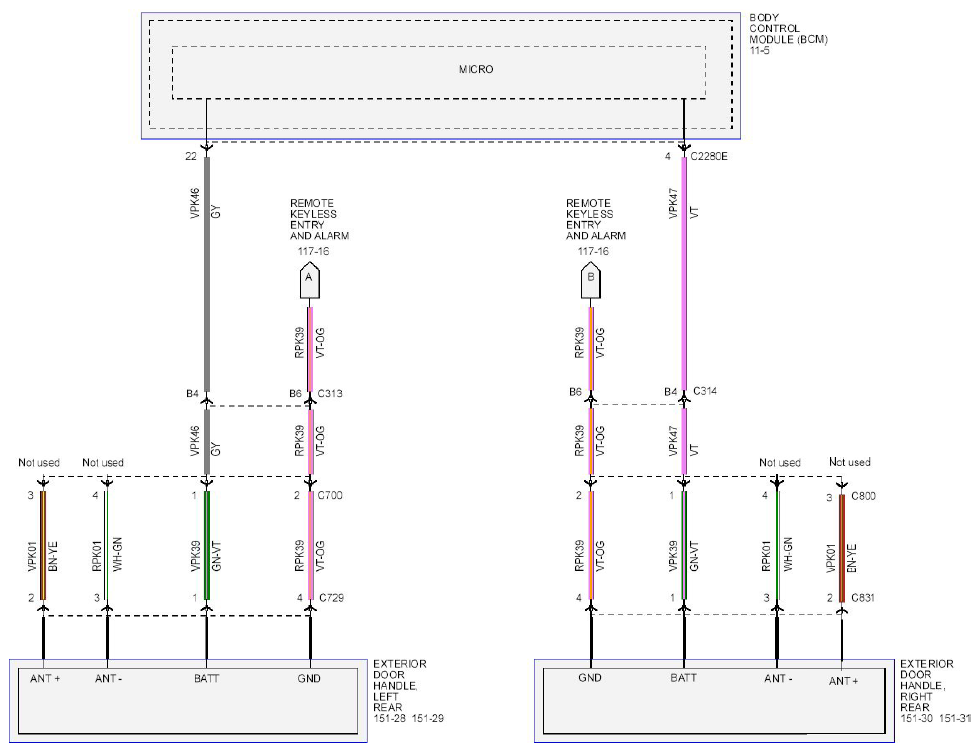

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - MKZ, With Keyless Entry With Push Button Start

G08754258

Courtesy of FORD MOTOR CO.
