Remote Keyless Entry and Alarm: Fusion

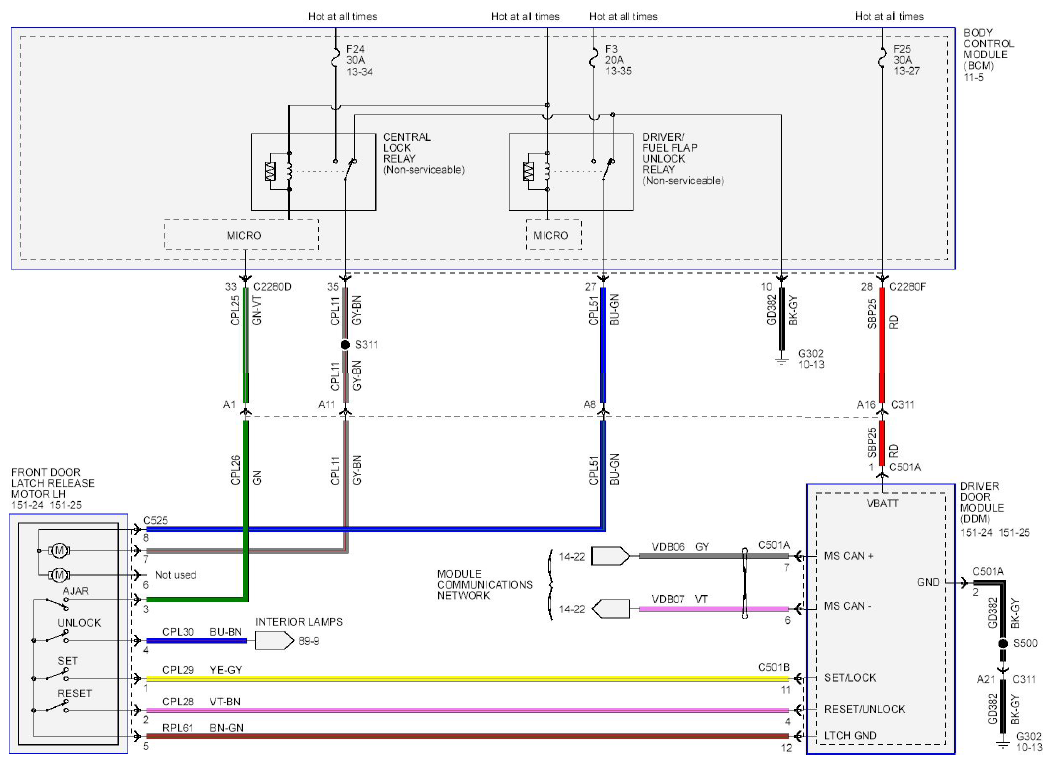

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - Fusion

G08754241

Courtesy of FORD MOTOR CO.
