Fusion - With Keyless Entry With Push Button Start

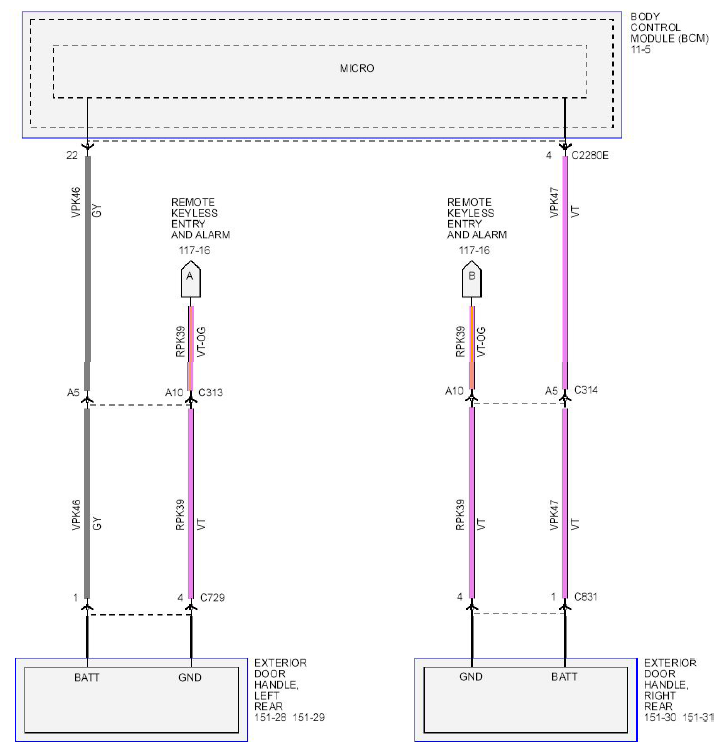

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - Fusion, With Keyless Entry With Push Button Start

G08754257

Courtesy of FORD MOTOR CO.
