Power Windows: MKZ

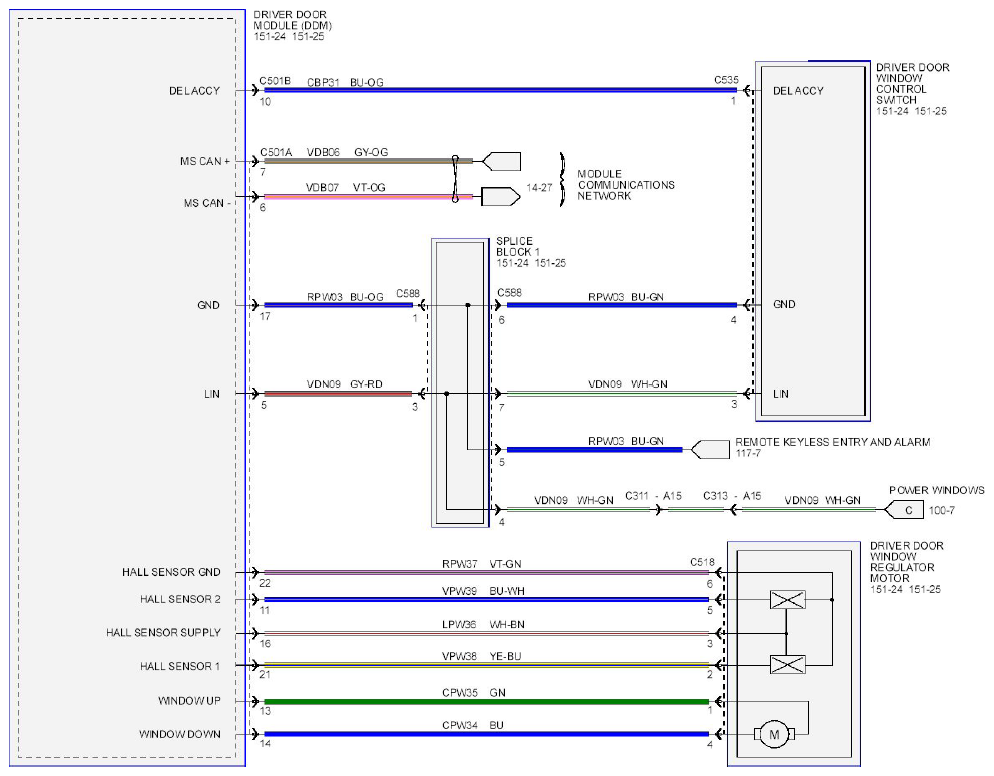

Fig 1: Power Windows Wiring Diagram - MKZ (1 Of 4)
G08754222Courtesy of FORD MOTOR CO.

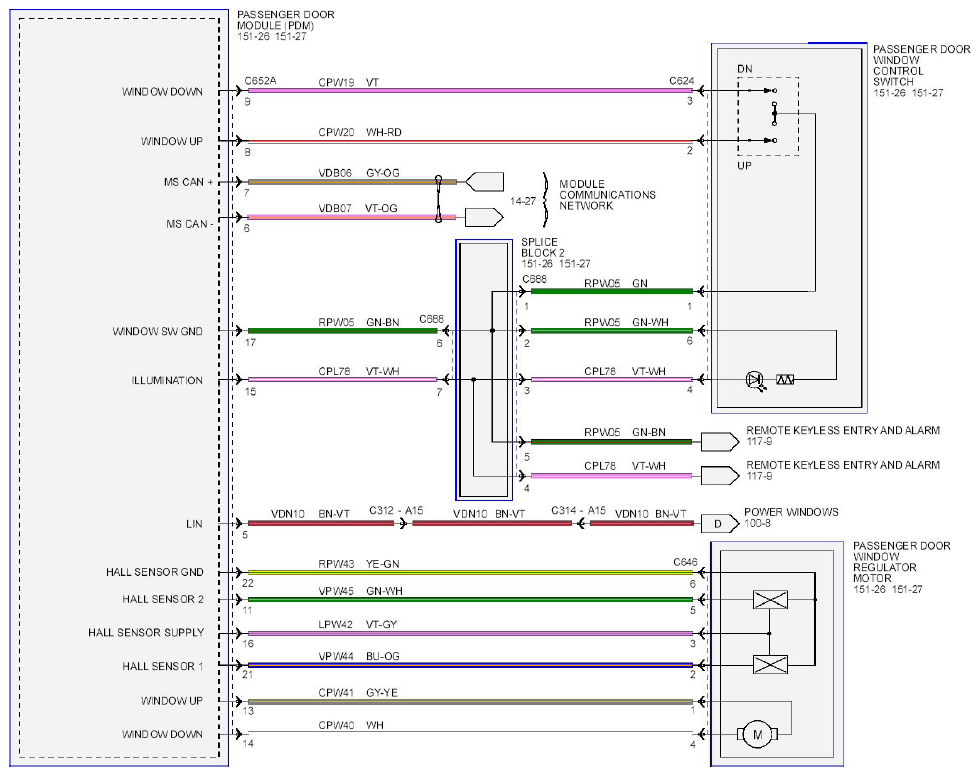

Fig 2: Power Windows Wiring Diagram - MKZ (2 Of 4)
G08754223Courtesy of FORD MOTOR CO.

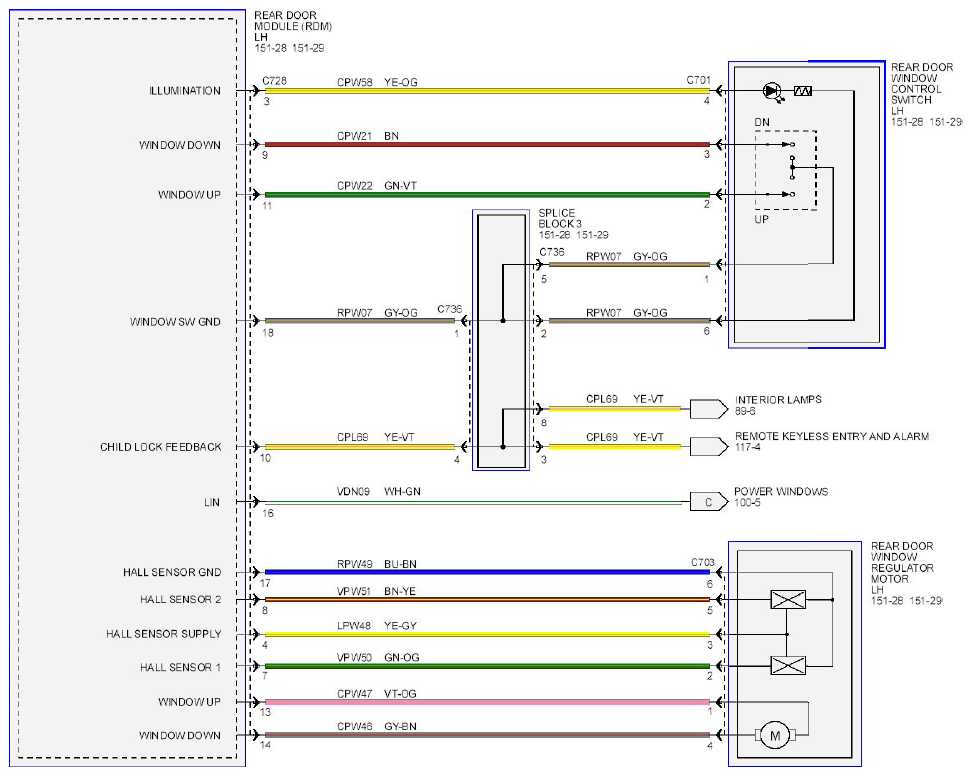

Fig 3: Power Windows Wiring Diagram - MKZ (3 Of 4)
G08754224Courtesy of FORD MOTOR CO.

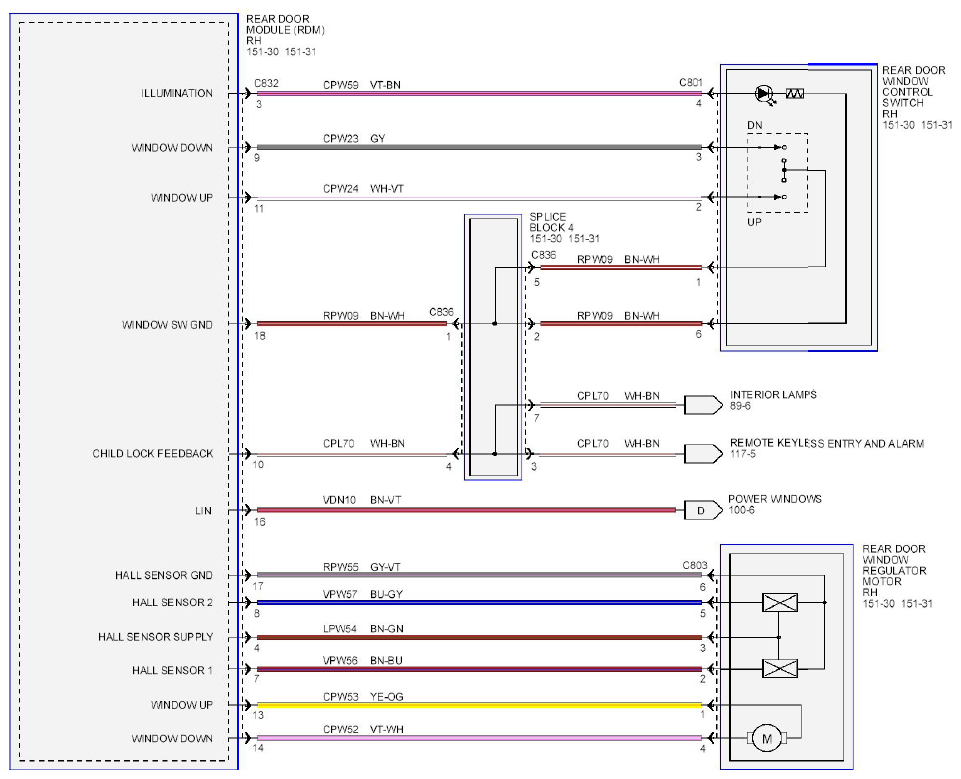

Fig 4: Power Windows Wiring Diagram - MKZ (4 Of 4)
G08754225Courtesy of FORD MOTOR CO.
