Power Windows: Fusion

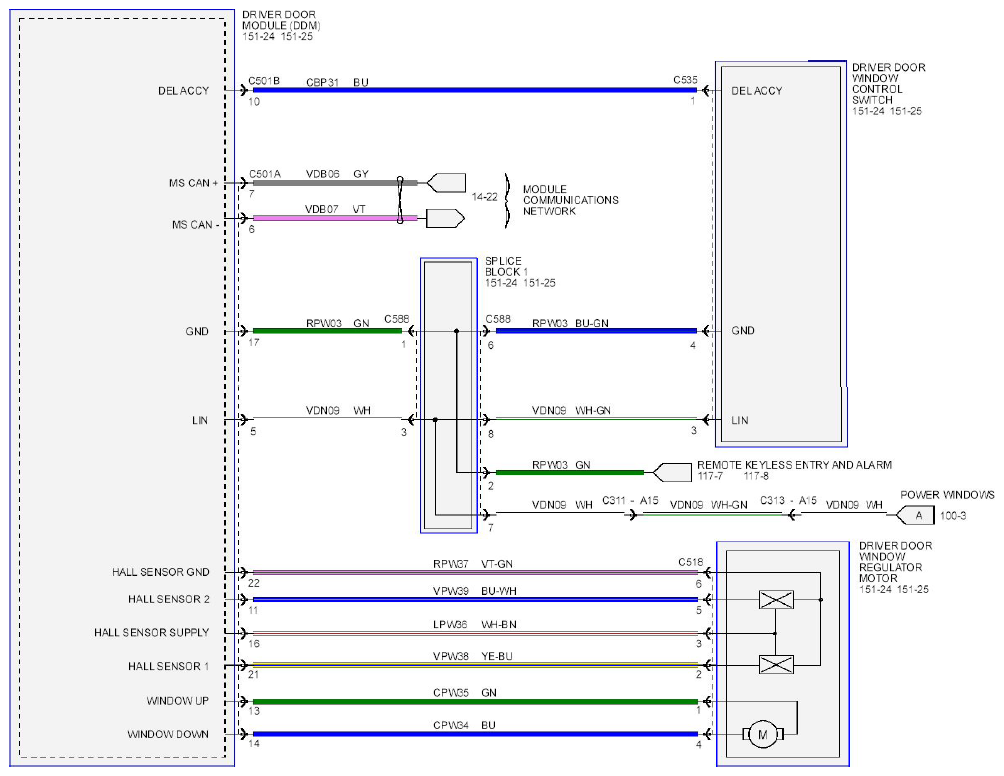

Fig 1: Power Windows Wiring Diagram - Fusion (1 Of 4)
G08754218Courtesy of FORD MOTOR CO.

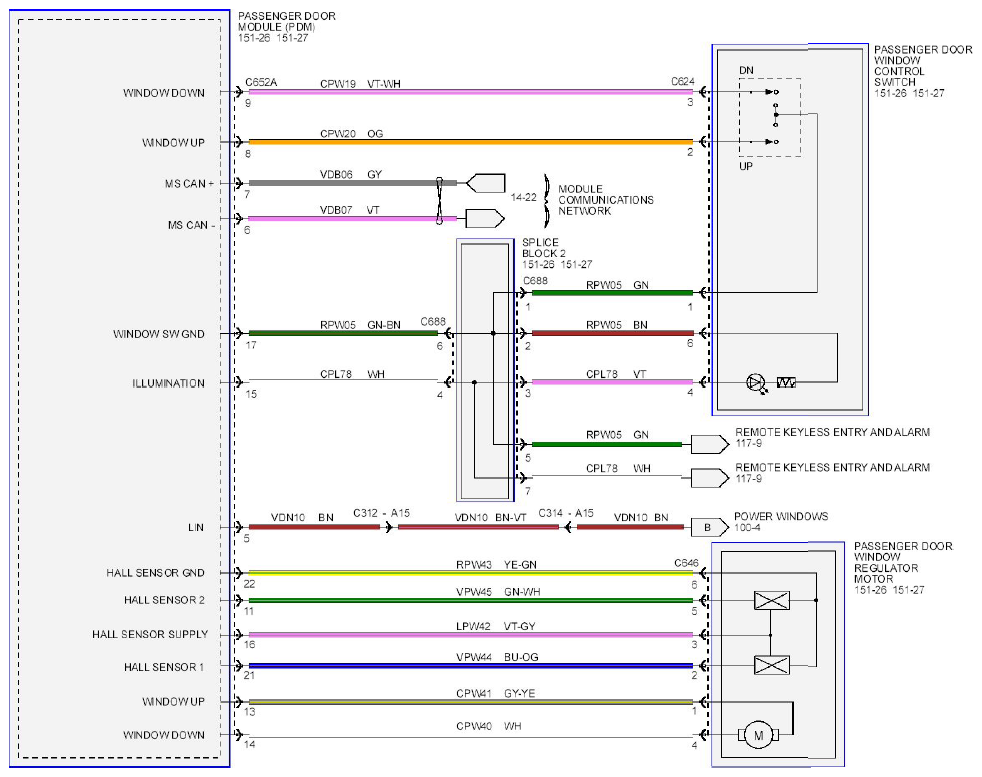

Fig 2: Power Windows Wiring Diagram - Fusion (2 Of 4)
G08754219Courtesy of FORD MOTOR CO.

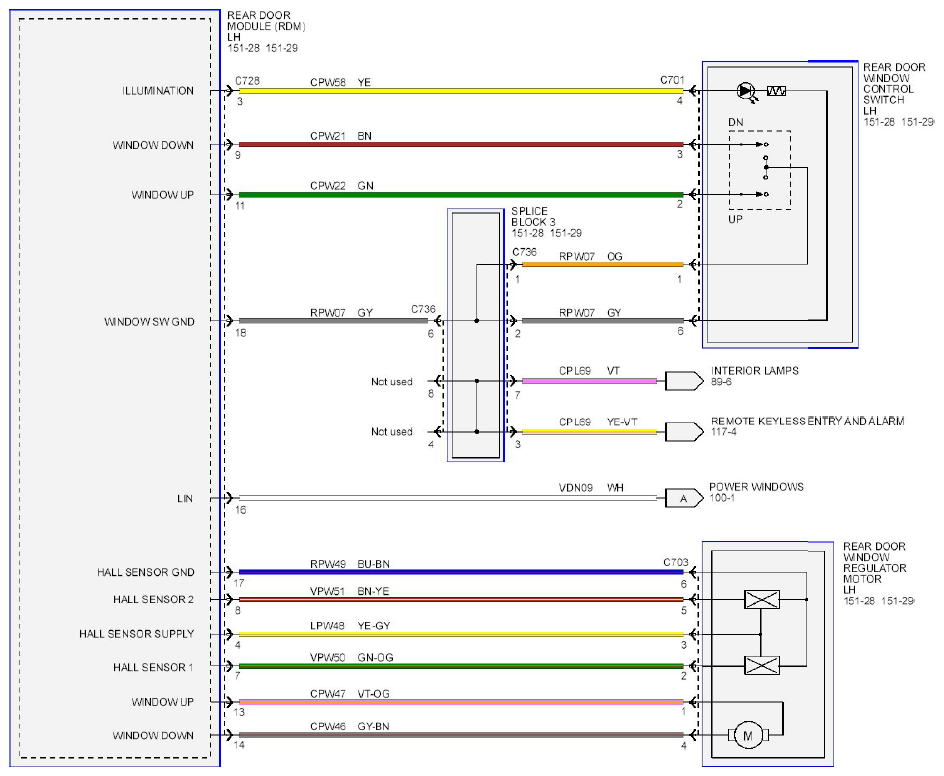

Fig 3: Power Windows Wiring Diagram - Fusion (3 Of 4)
G08754220Courtesy of FORD MOTOR CO.

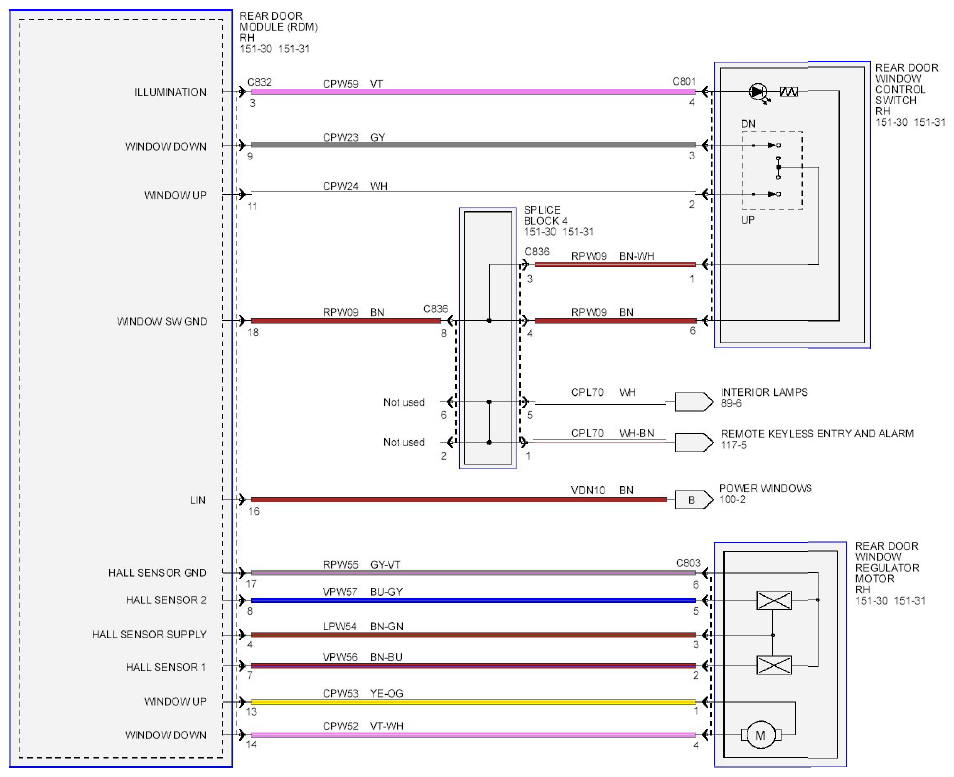

Fig 4: Power Windows Wiring Diagram - Fusion (4 Of 4)
G08754221Courtesy of FORD MOTOR CO.
