Power Steering Controls
Power Steering Controls

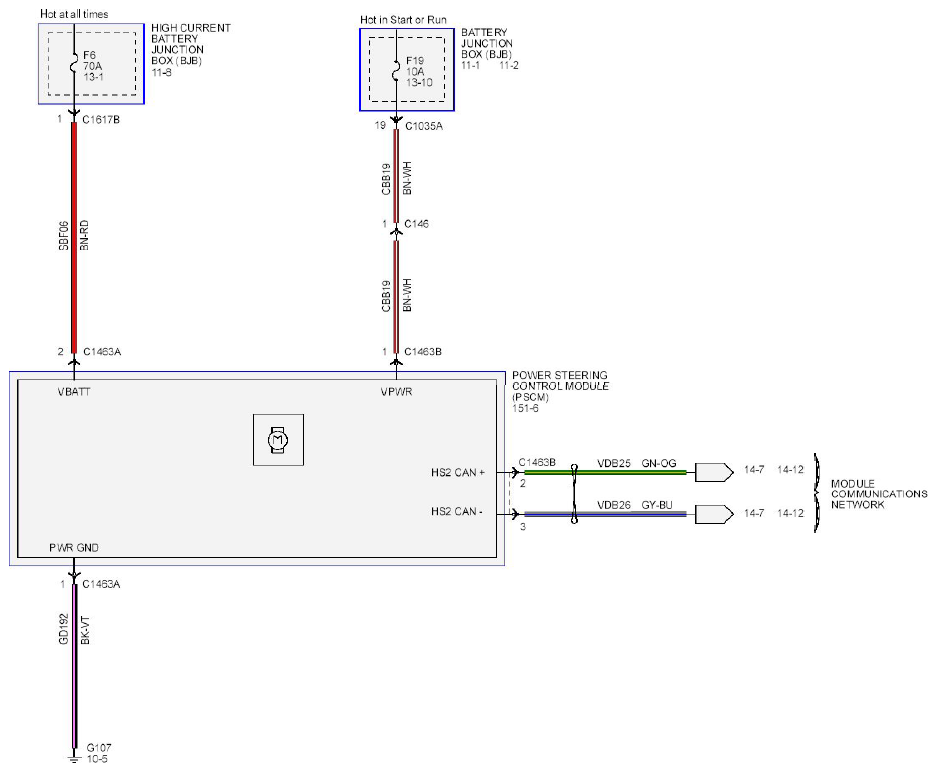

Fig 1: Power Steering Controls Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
