Fusion Hybrid Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Seats
>>
Fusion
>>
Power Seat - Passenger
Power Seat - Passenger

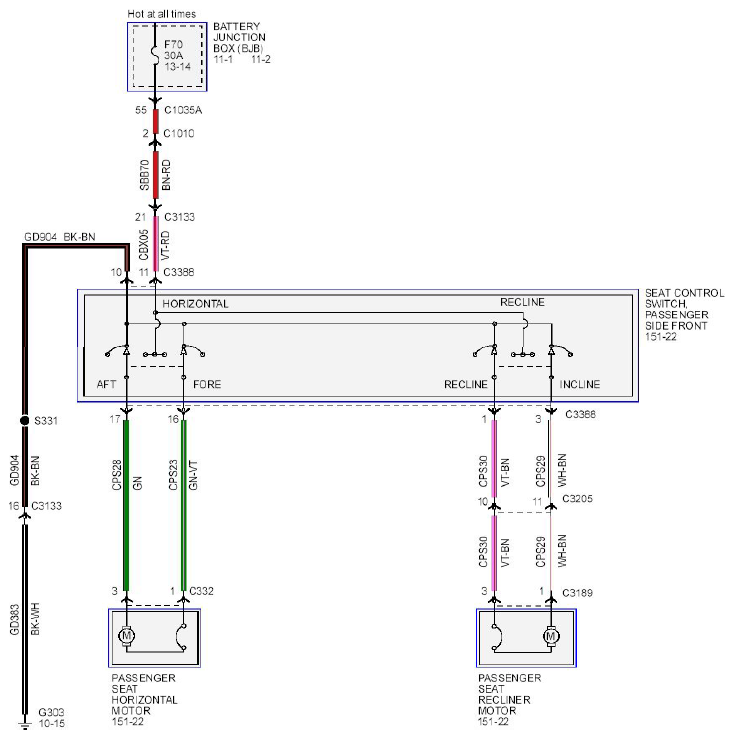

Fig 1: Power Seats Wiring Diagram - Fusion, Power Seat (Passenger)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
