Power Mirrors: Notes

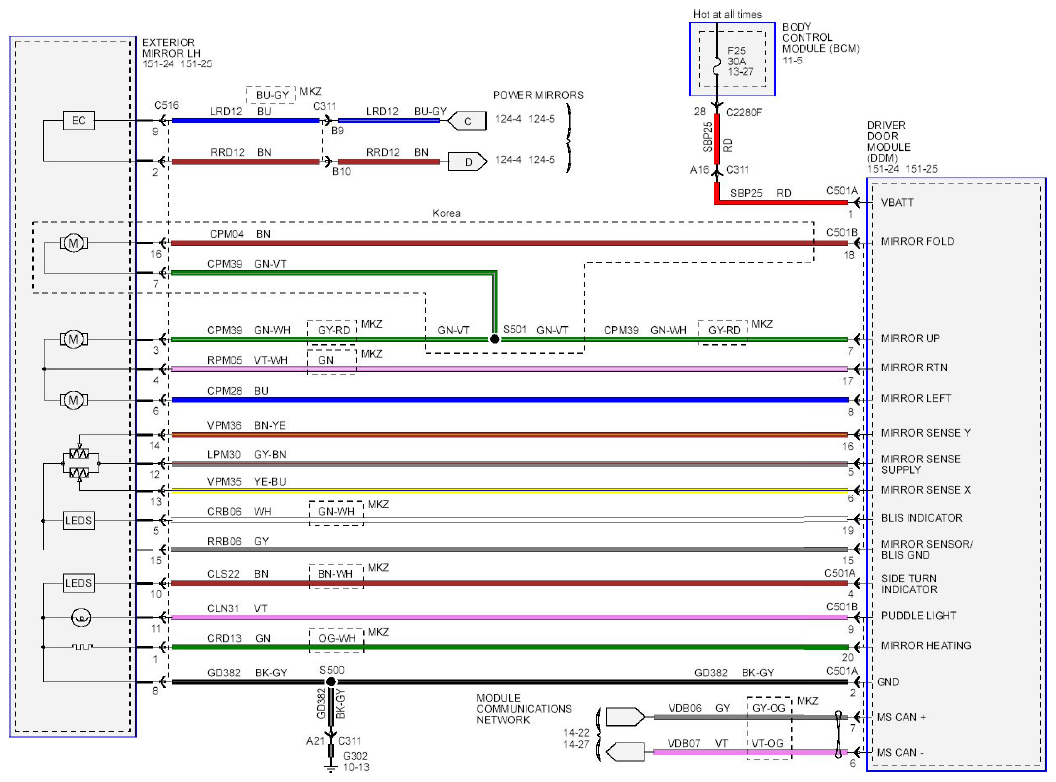

Fig 1: Power Mirrors Wiring Diagram (1 Of 3)
G08754279Courtesy of FORD MOTOR CO.

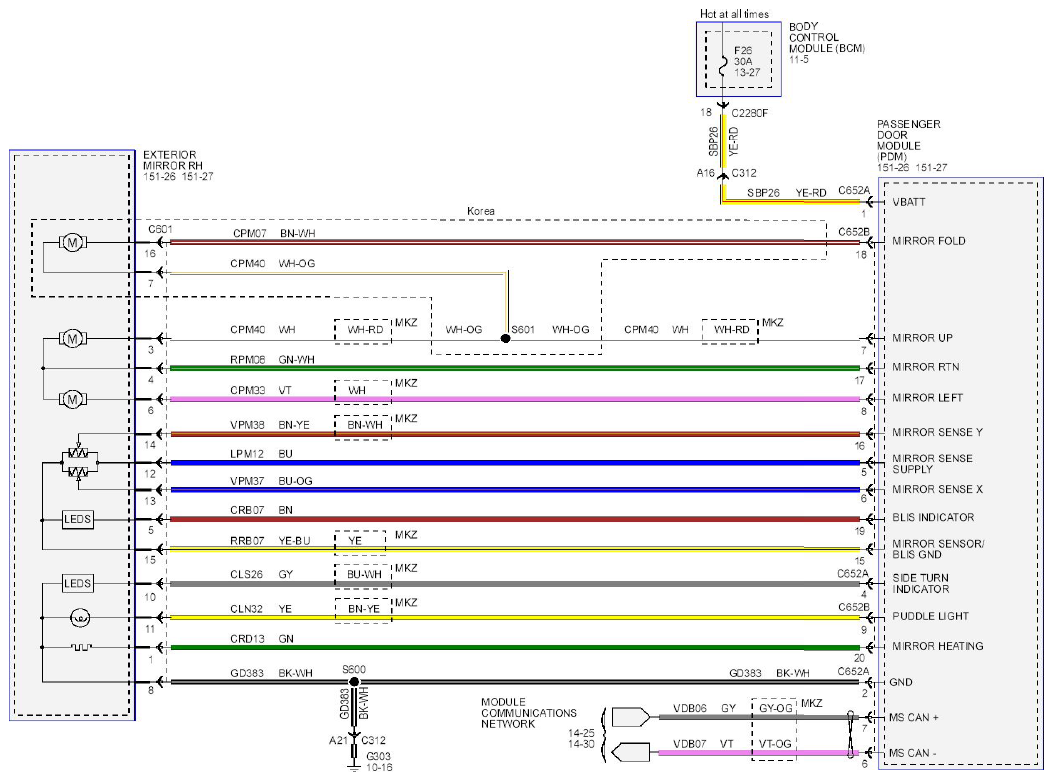

Fig 2: Power Mirrors Wiring Diagram (2 Of 3)
G08754280Courtesy of FORD MOTOR CO.

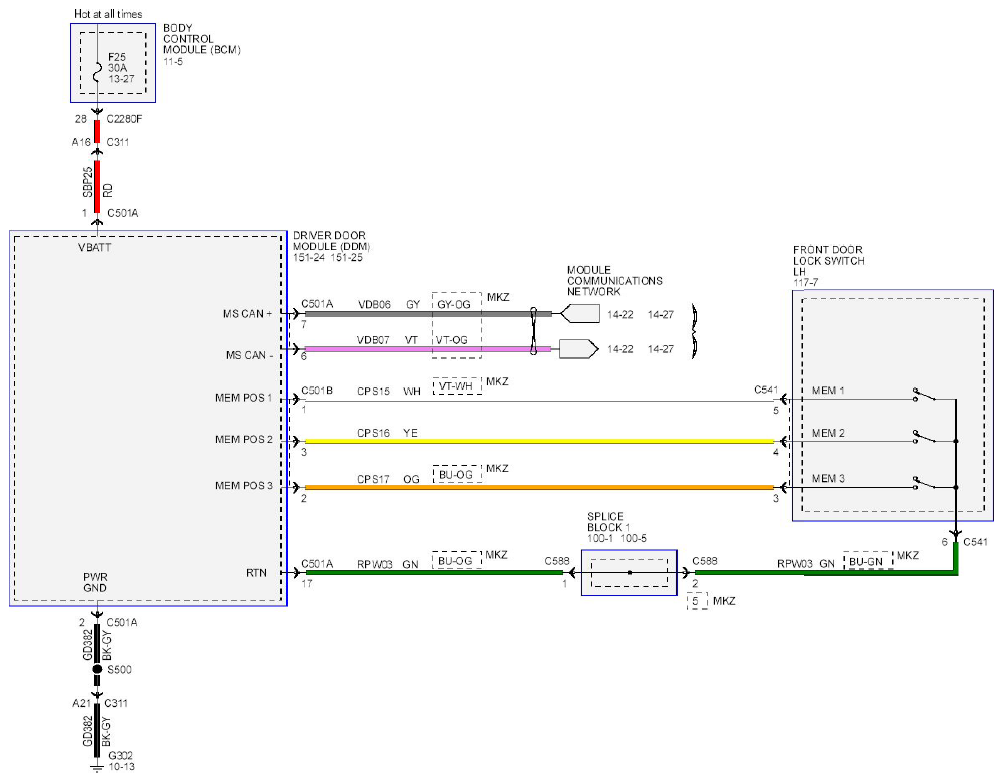

Fig 3: Power Mirrors Wiring Diagram (3 Of 3)
G08754281Courtesy of FORD MOTOR CO.
