Power Distribution_BCM
>>
Without Push Button Start
Without Push Button Start

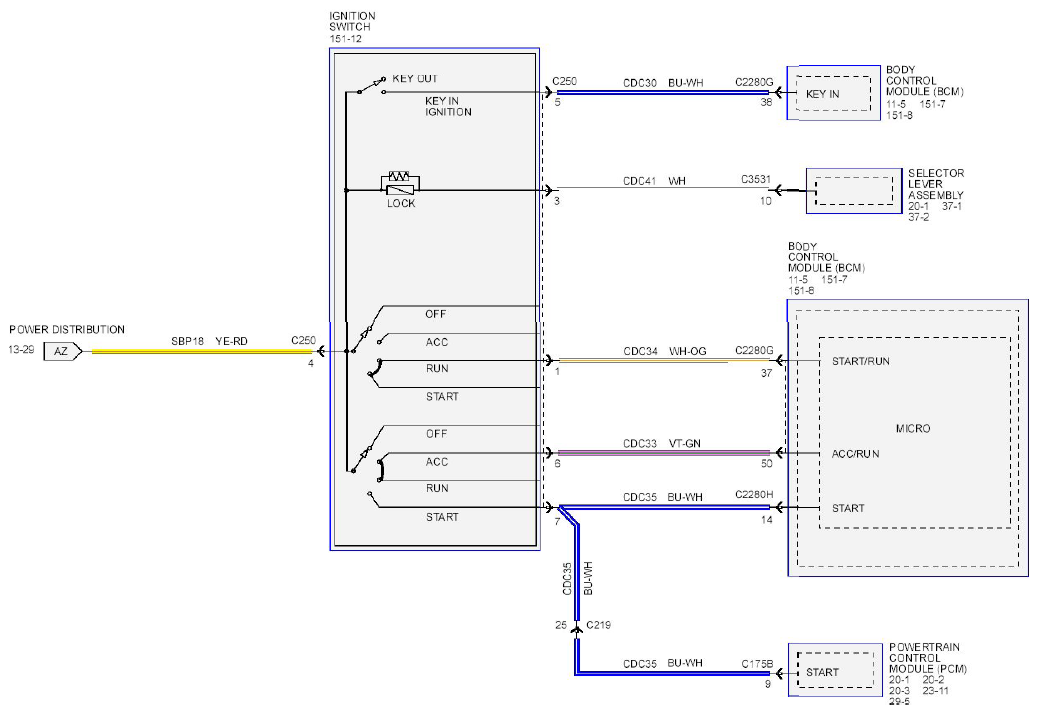

Fig 1: BCM Power Distribution Wiring Diagram - F14, F18 (Without Push Button Start)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
