Power Distribution_BCM: Notes

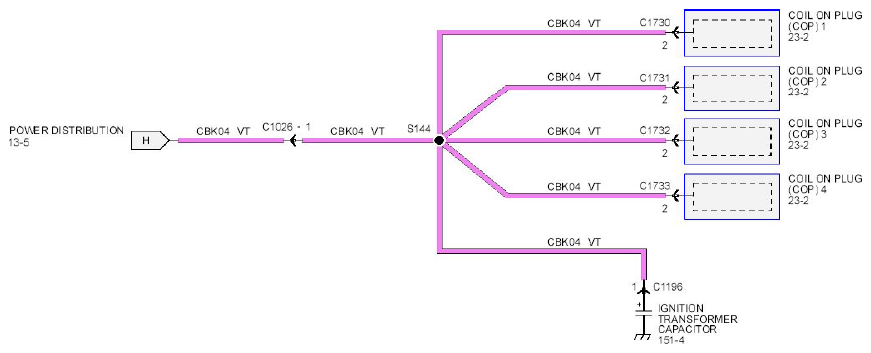

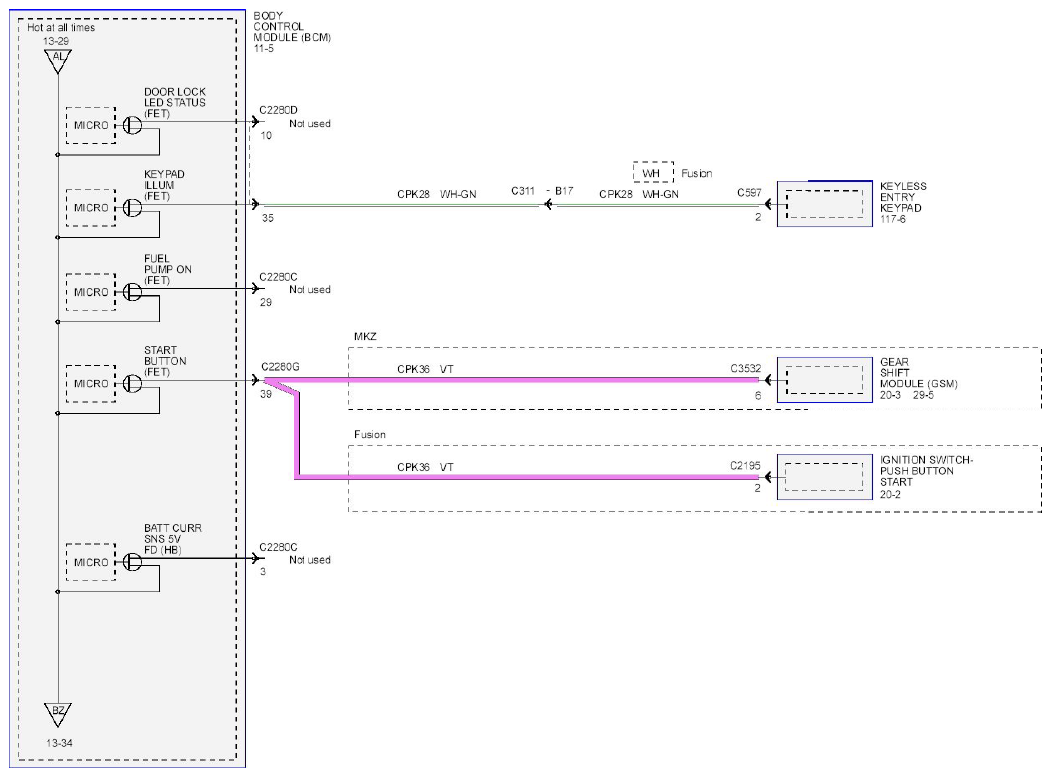

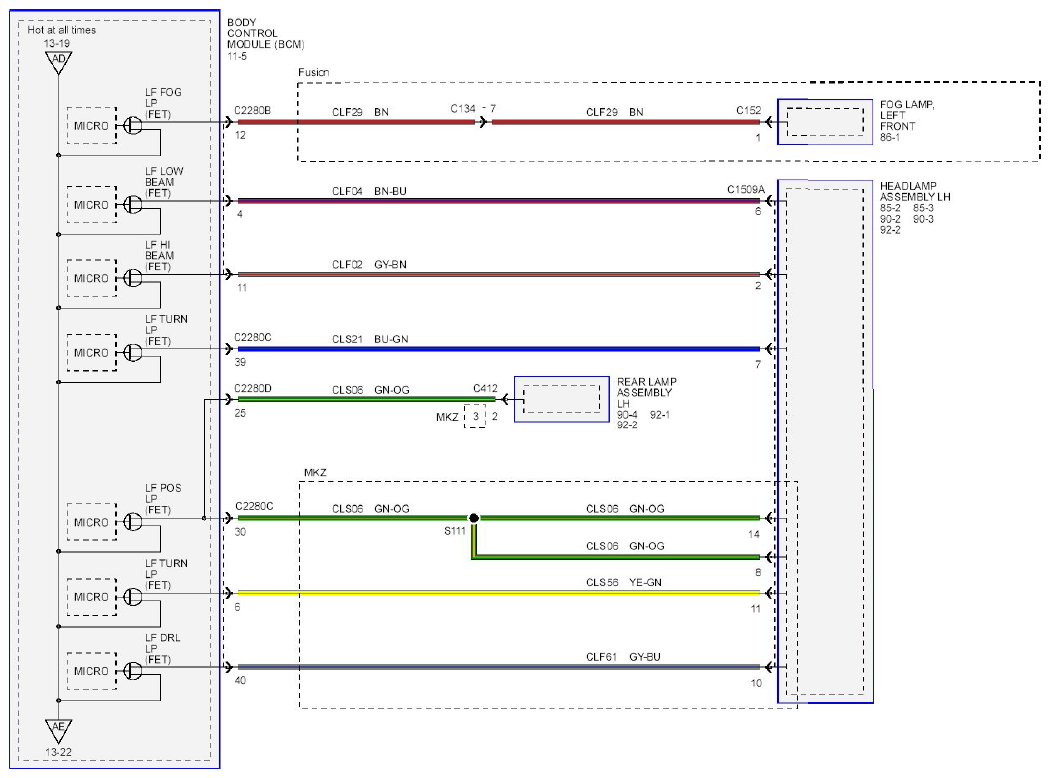

Fig 1: BCM Power Distribution Wiring Diagram - (1 Of 18)

Courtesy of FORD MOTOR CO.

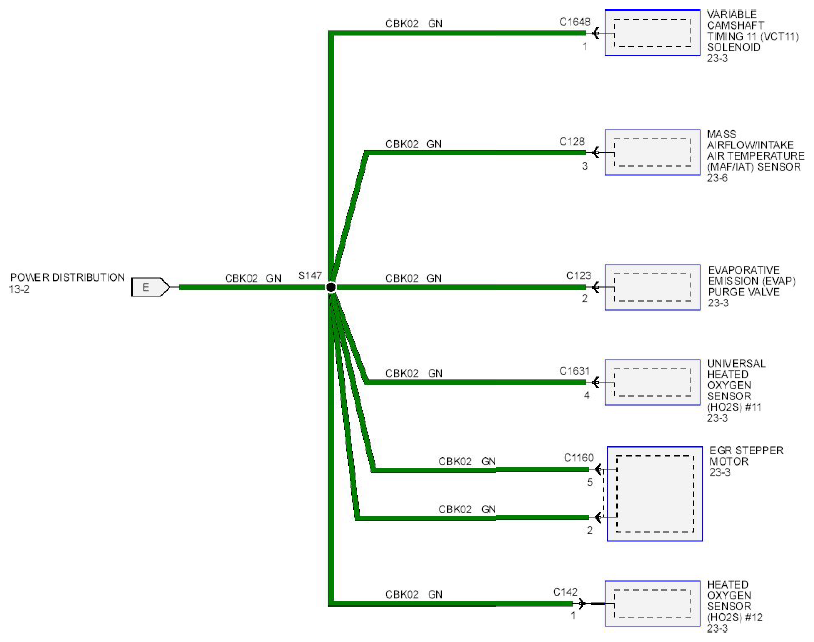

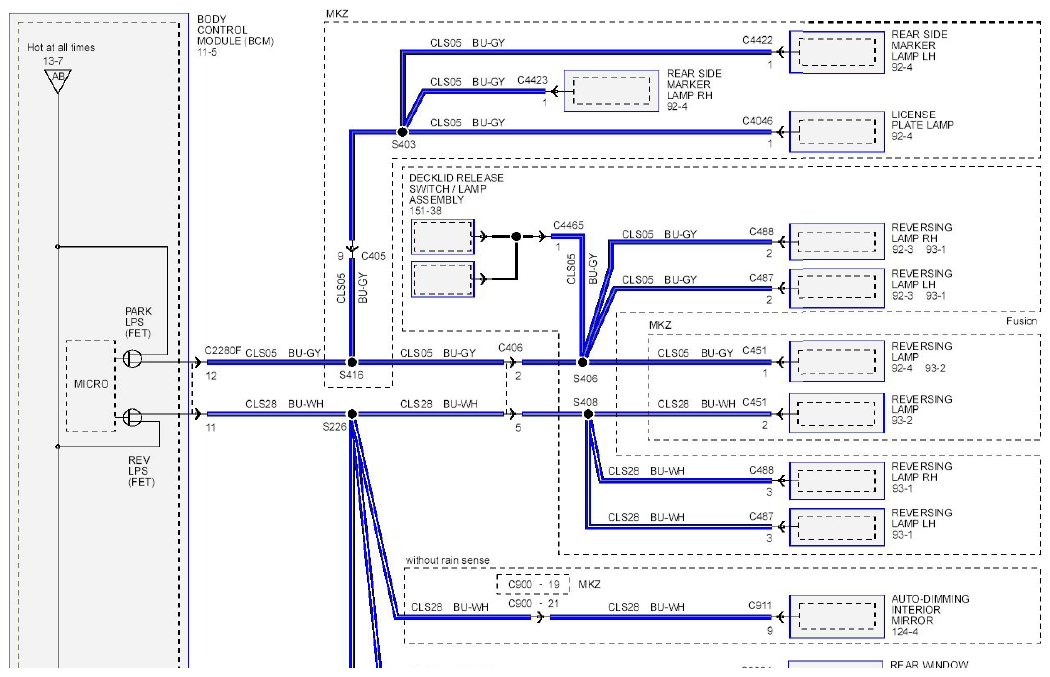

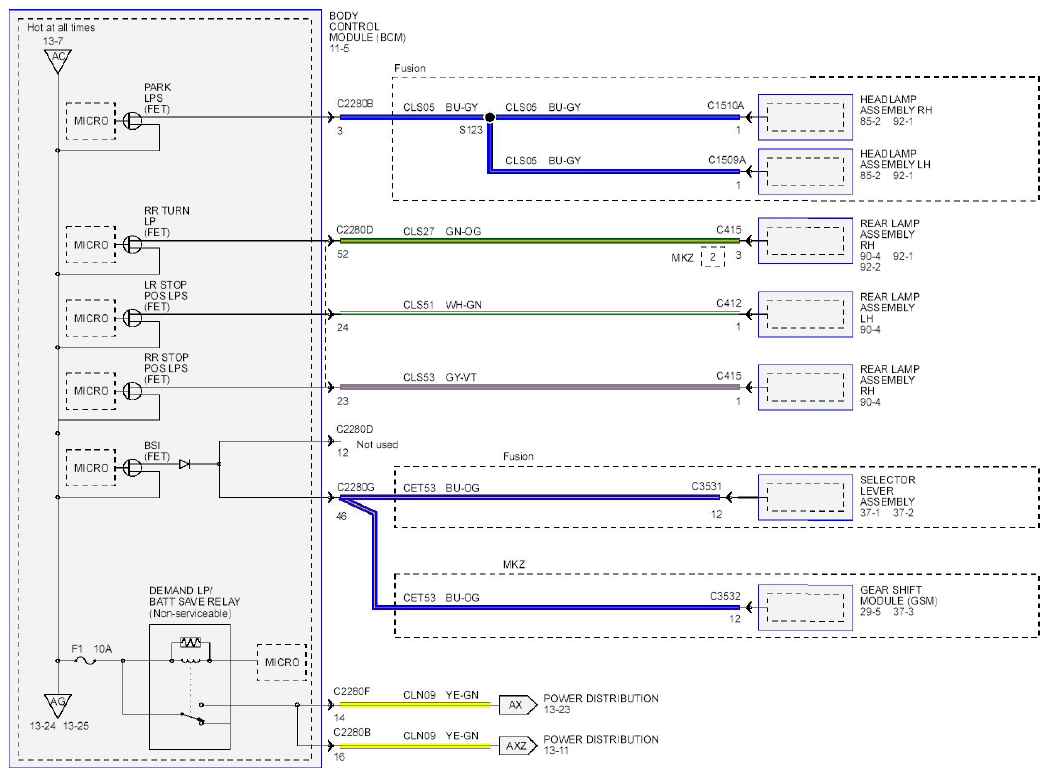

Fig 2: BCM Power Distribution Wiring Diagram - (2 Of 18)

Courtesy of FORD MOTOR CO.

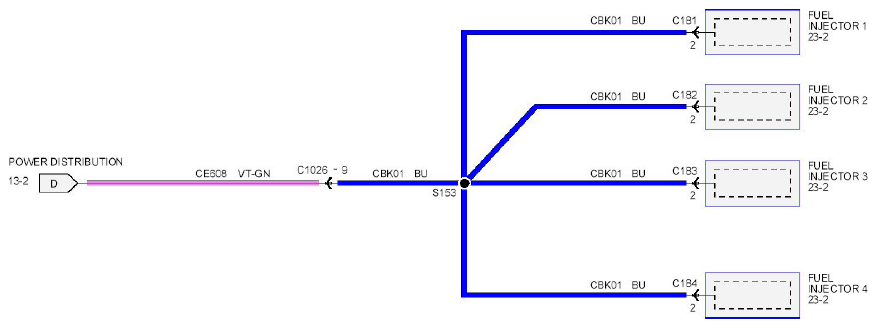

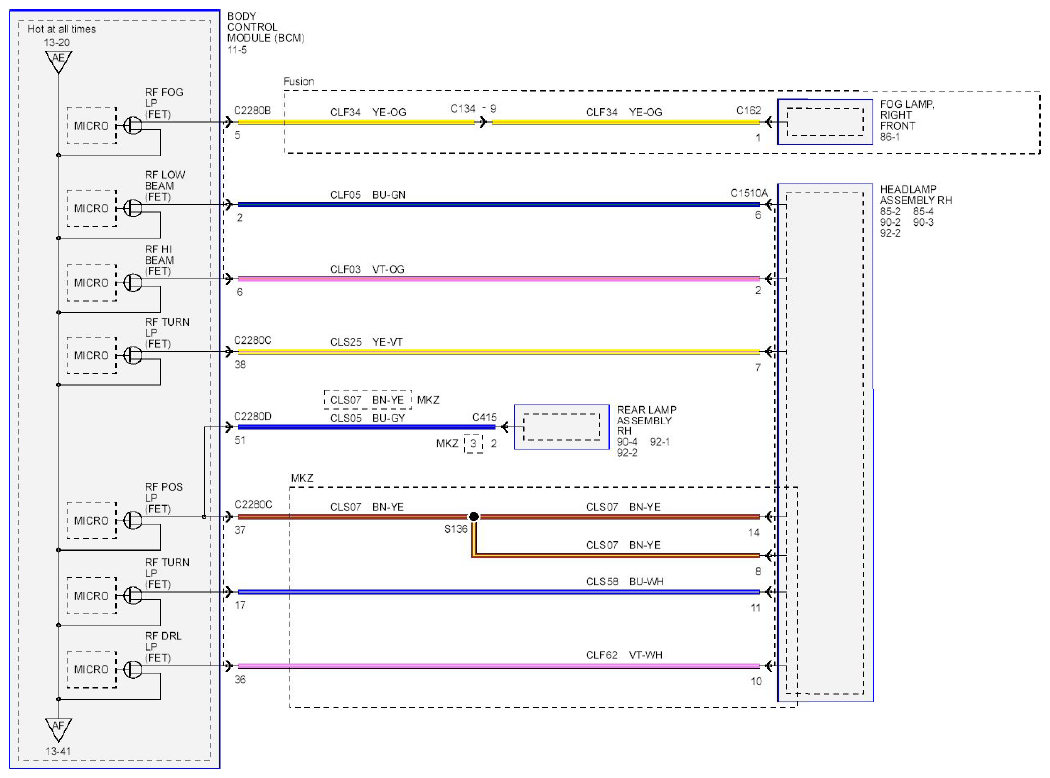

Fig 3: BCM Power Distribution Wiring Diagram - (3 Of 18)

Courtesy of FORD MOTOR CO.

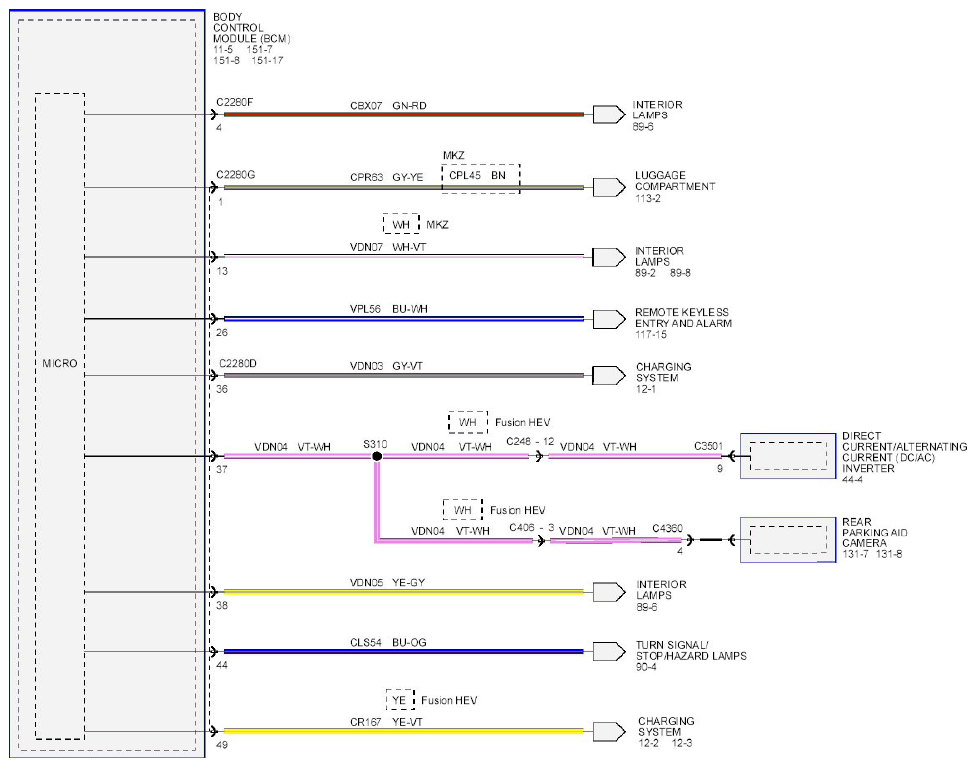

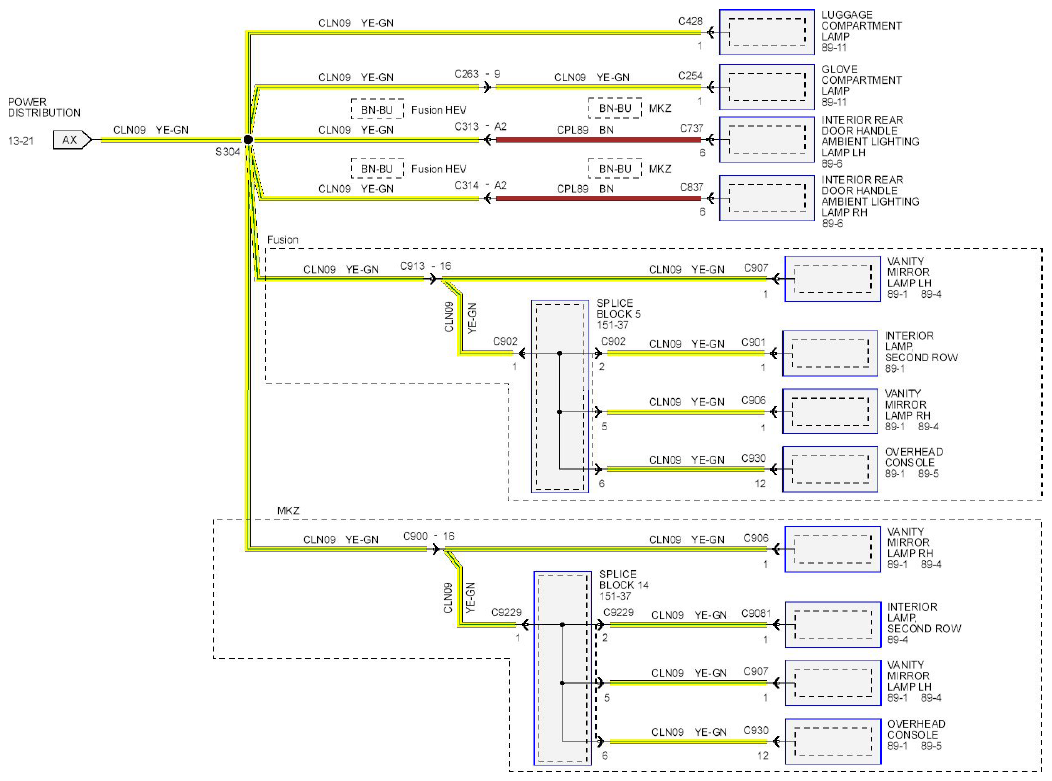

Fig 4: BCM Power Distribution Wiring Diagram - (4 Of 18)

Courtesy of FORD MOTOR CO.

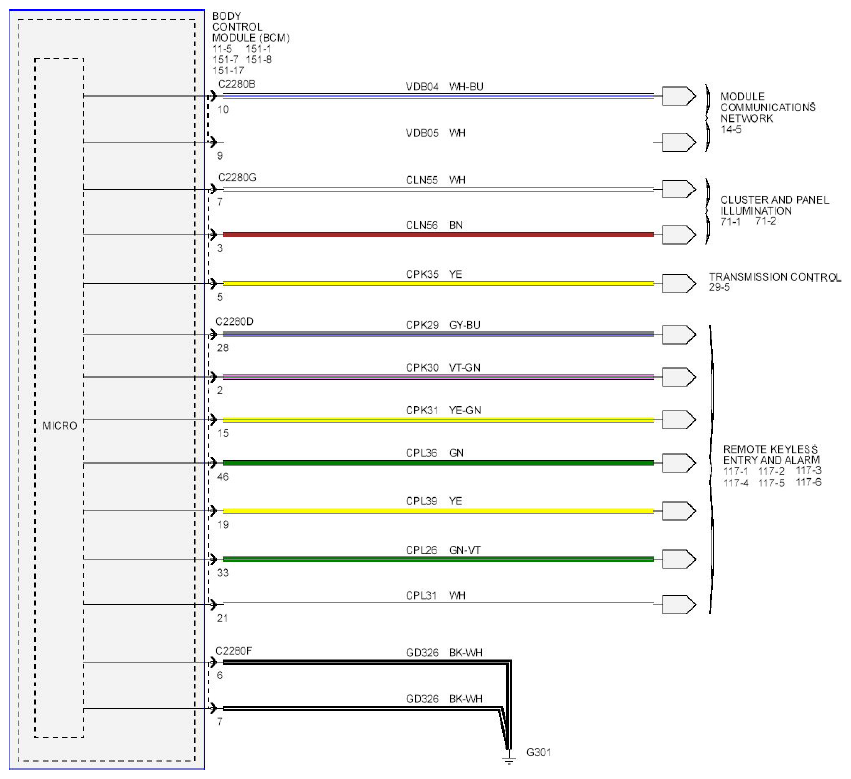

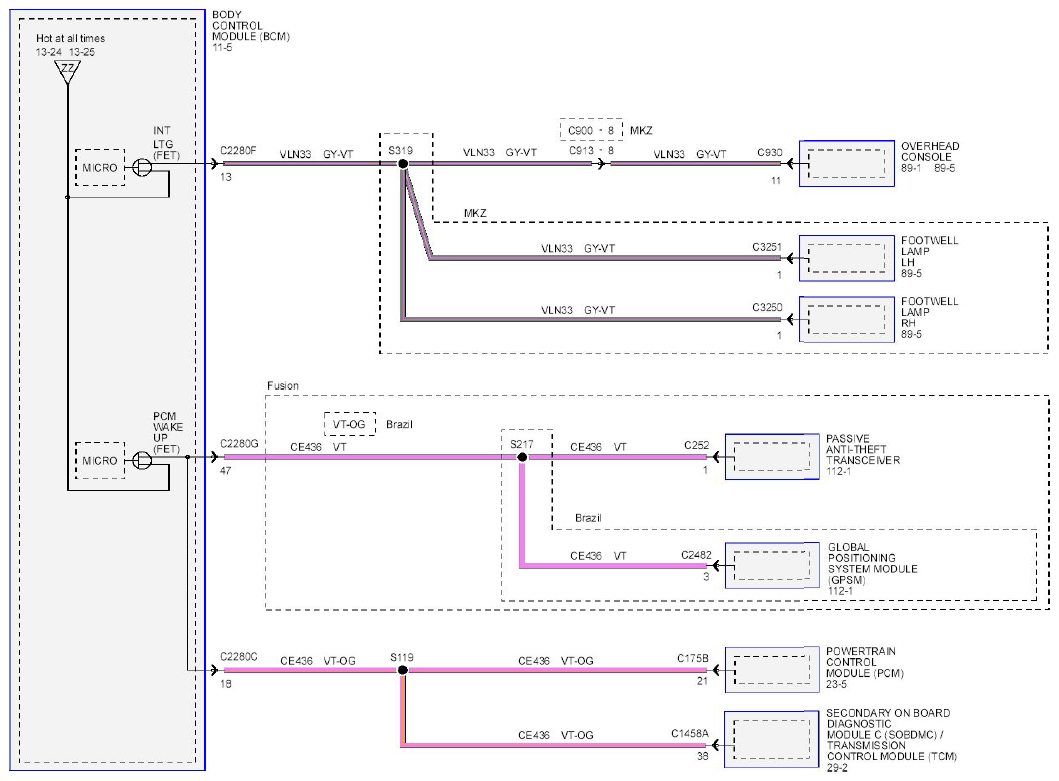

Fig 5: BCM Power Distribution Wiring Diagram - (5 Of 18)

Courtesy of FORD MOTOR CO.

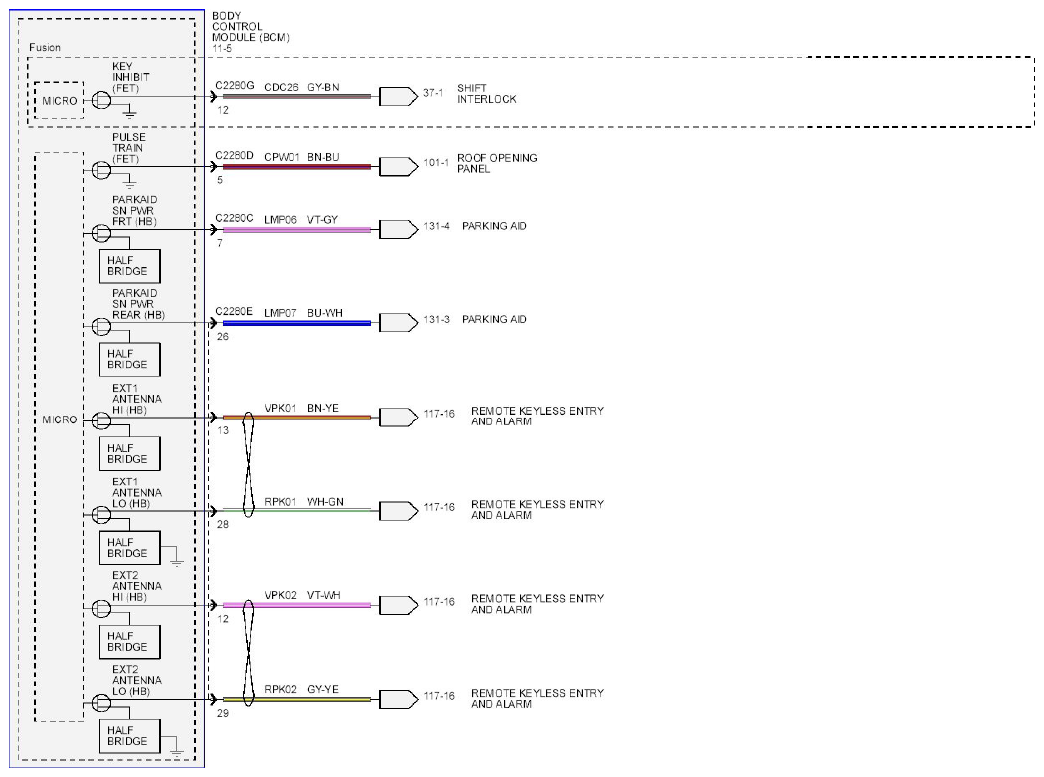

Fig 6: BCM Power Distribution Wiring Diagram - (6 Of 18)

Courtesy of FORD MOTOR CO.

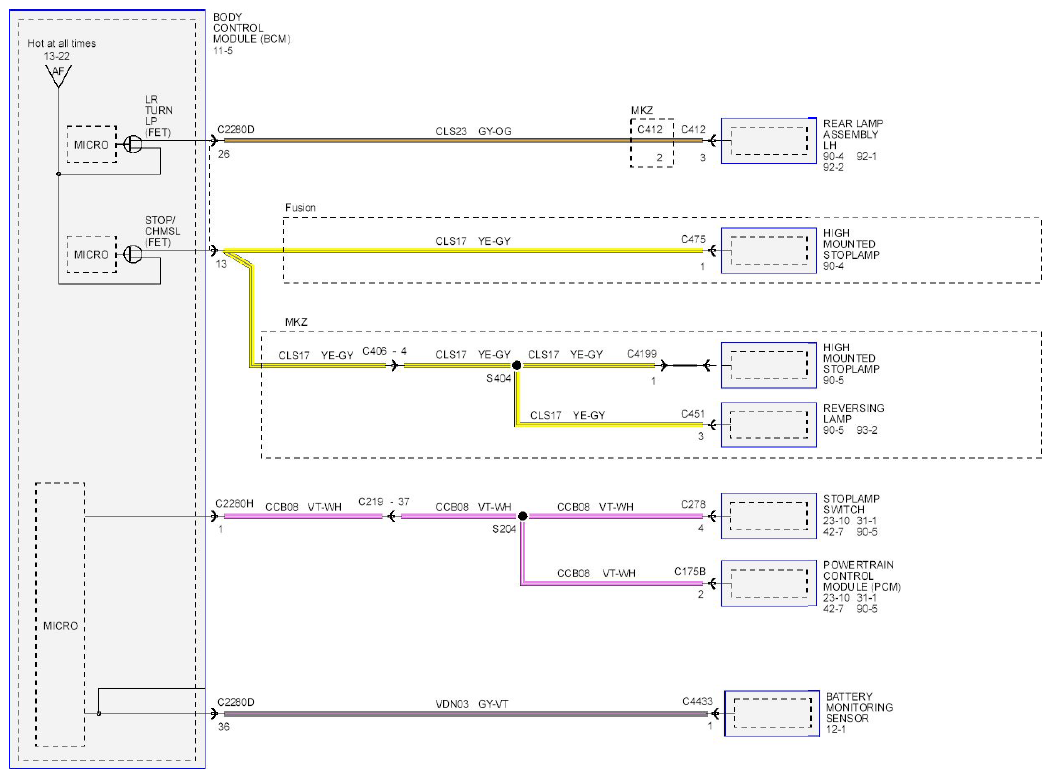

Fig 7: BCM Power Distribution Wiring Diagram - (7 Of 18)

Courtesy of FORD MOTOR CO.

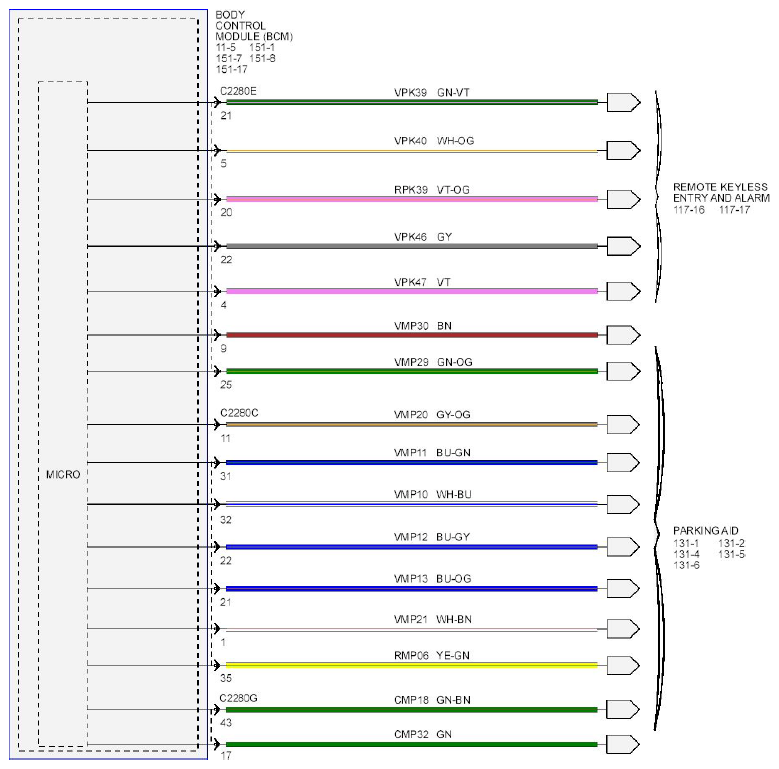

Fig 8: BCM Power Distribution Wiring Diagram - (8 Of 18)

Courtesy of FORD MOTOR CO.

Fig 9: BCM Power Distribution Wiring Diagram - (9 Of 18)

Courtesy of FORD MOTOR CO.

Fig 10: BCM Power Distribution Wiring Diagram - (10 Of 18)

Courtesy of FORD MOTOR CO.

Fig 11: BCM Power Distribution Wiring Diagram - (11 Of 18)

Courtesy of FORD MOTOR CO.

Fig 12: BCM Power Distribution Wiring Diagram - (12 Of 18)

Courtesy of FORD MOTOR CO.

Fig 13: BCM Power Distribution Wiring Diagram - (13 Of 18)

Courtesy of FORD MOTOR CO.

Fig 14: BCM Power Distribution Wiring Diagram - (14 Of 18)

Courtesy of FORD MOTOR CO.

Fig 15: BCM Power Distribution Wiring Diagram - (15 Of 18)

Courtesy of FORD MOTOR CO.

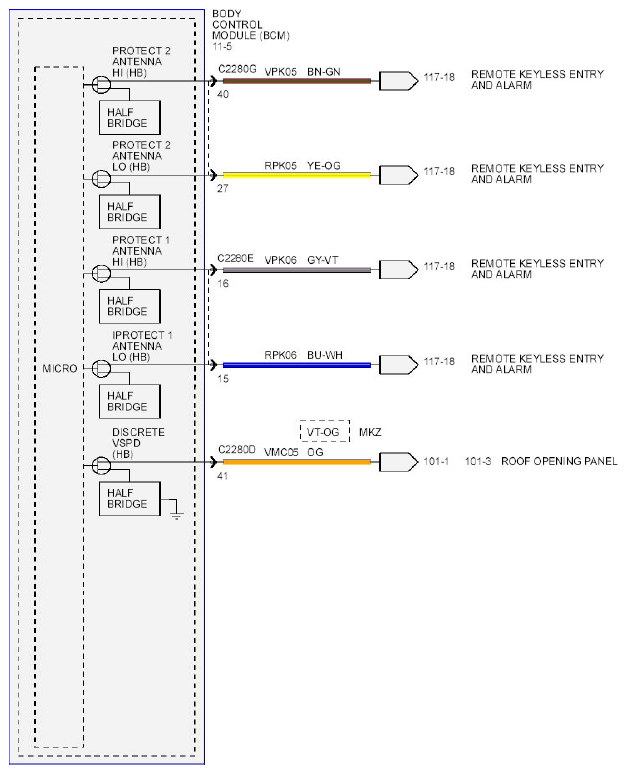

Fig 16: BCM Power Distribution Wiring Diagram - (16 Of 18)

Courtesy of FORD MOTOR CO.

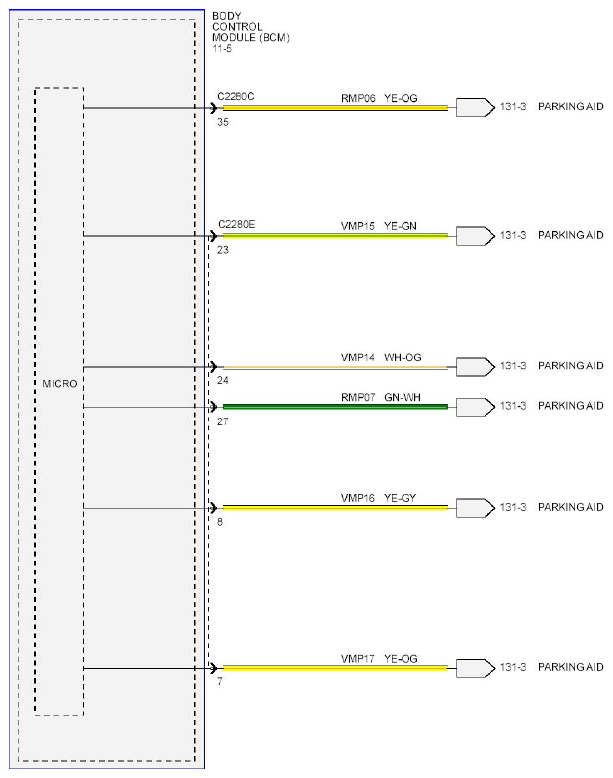

Fig 17: BCM Power Distribution Wiring Diagram - (17 Of 18)

Courtesy of FORD MOTOR CO.

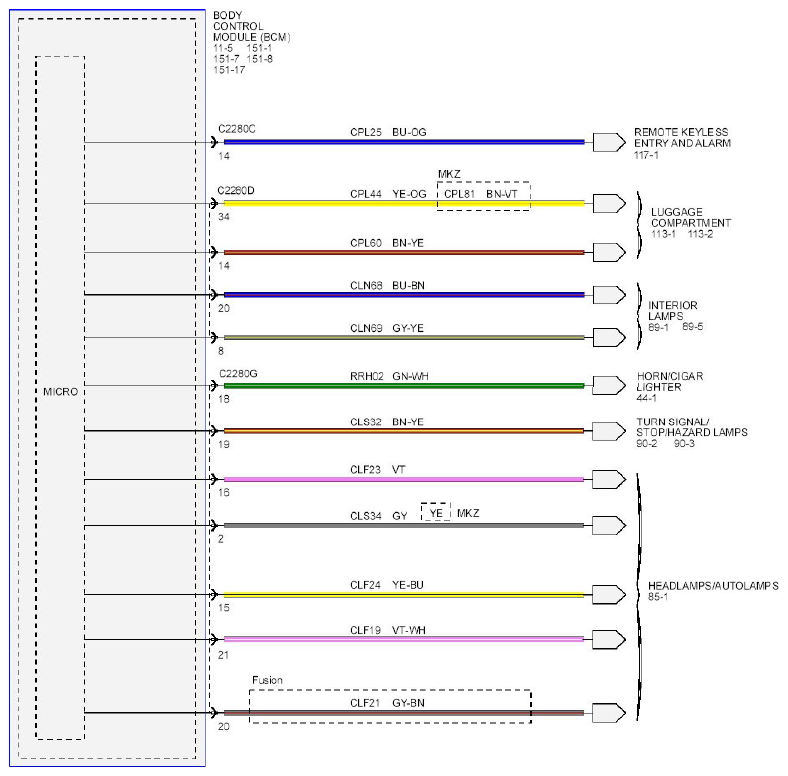

Fig 18: BCM Power Distribution Wiring Diagram - (18 Of 18)

Courtesy of FORD MOTOR CO.
