Power Distribution_BCM: MKZ

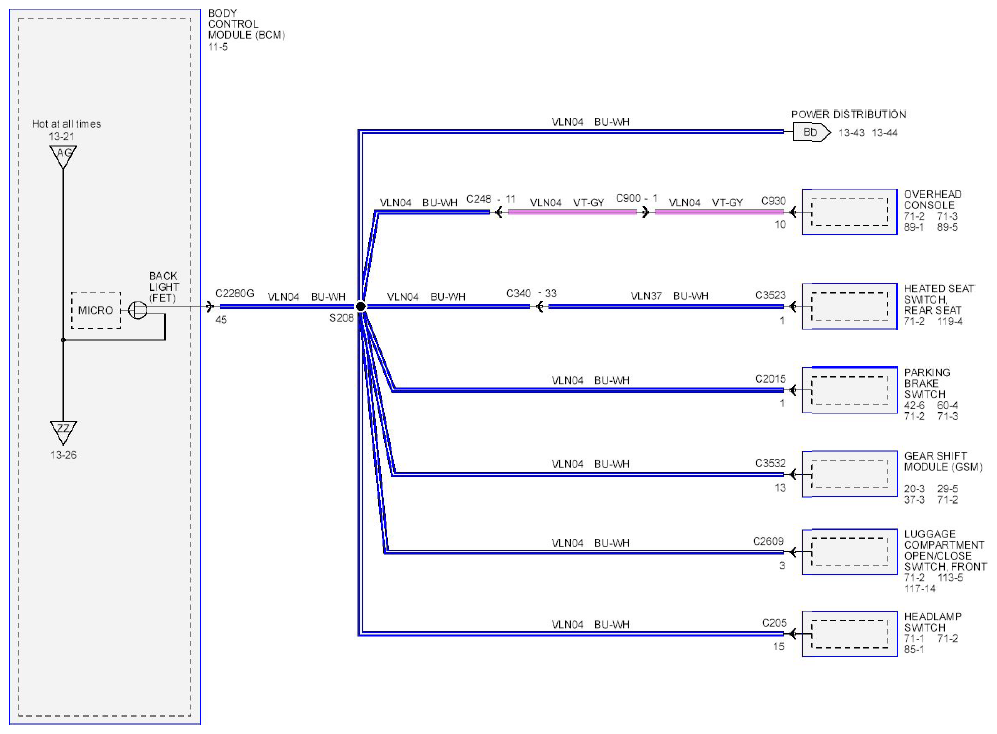

Fig 1: BCM Power Distribution Wiring Diagram - MKZ (1 Of 3)
G08754064Courtesy of FORD MOTOR CO.

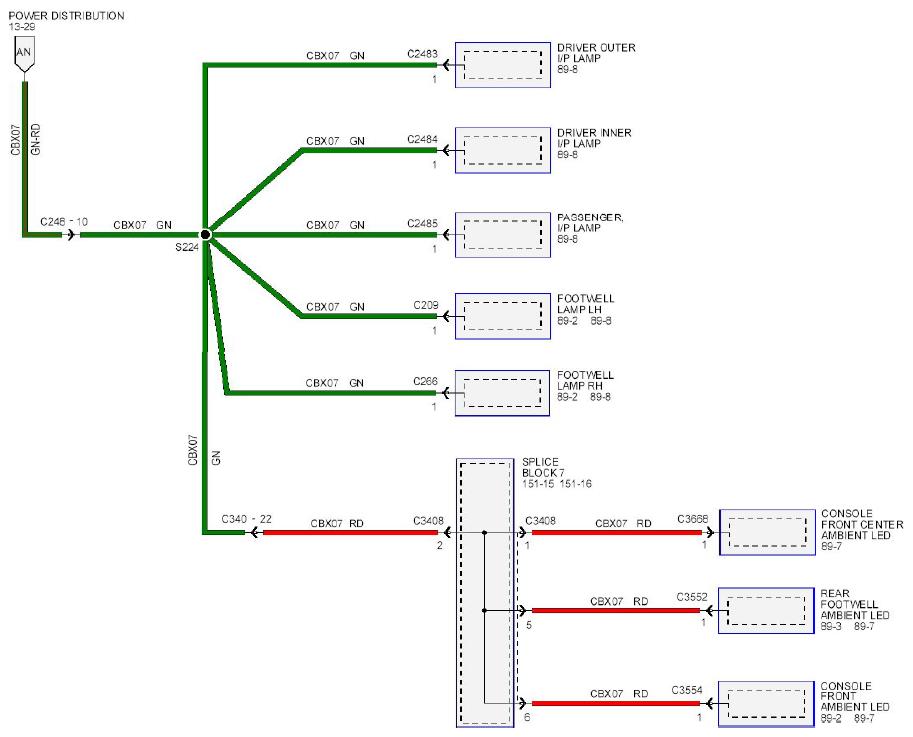

Fig 2: BCM Power Distribution Wiring Diagram - MKZ (2 Of 3)
G08754071Courtesy of FORD MOTOR CO.

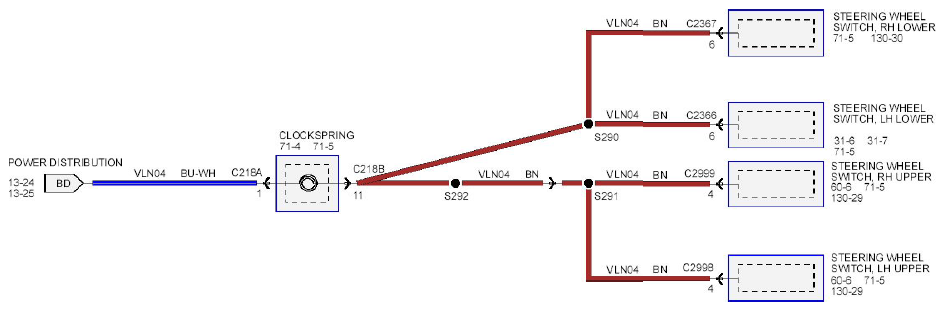

Fig 3: BCM Power Distribution Wiring Diagram - MKZ (3 Of 3)
G08754083Courtesy of FORD MOTOR CO.
