Power Distribution_BCM: Fusion

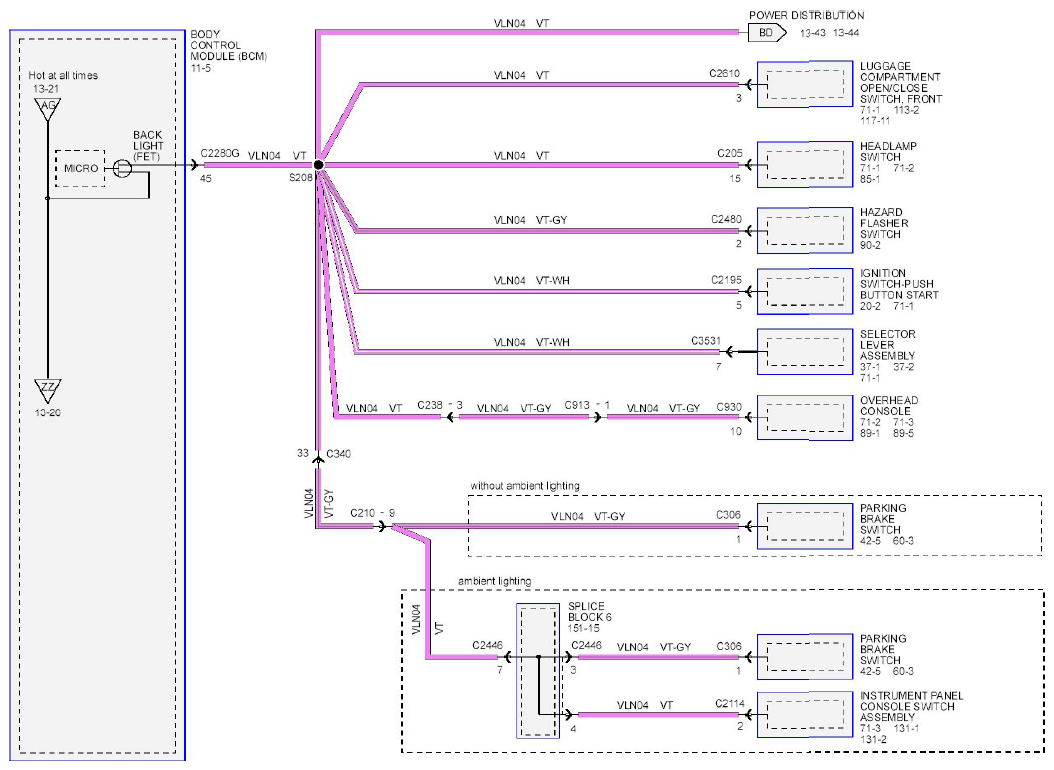

Fig 1: BCM Power Distribution Wiring Diagram - FUSION (1 Of 3)
G08754063Courtesy of FORD MOTOR CO.

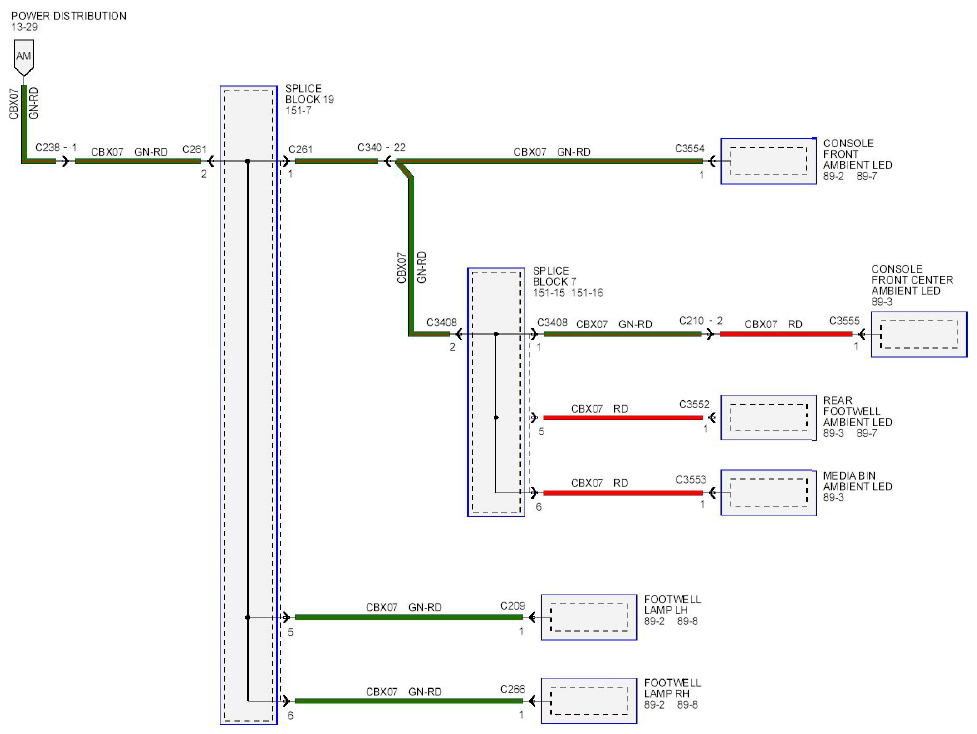

Fig 2: BCM Power Distribution Wiring Diagram - FUSION (2 Of 3)
G08754070Courtesy of FORD MOTOR CO.

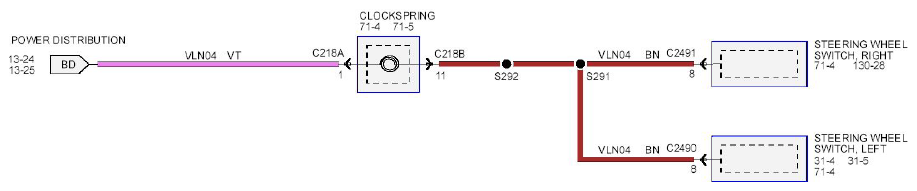

Fig 3: BCM Power Distribution Wiring Diagram - FUSION (3 Of 3)
G08754082Courtesy of FORD MOTOR CO.
