Fusion Hybrid Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution_BCM
>>
F48, F79
F48, F79

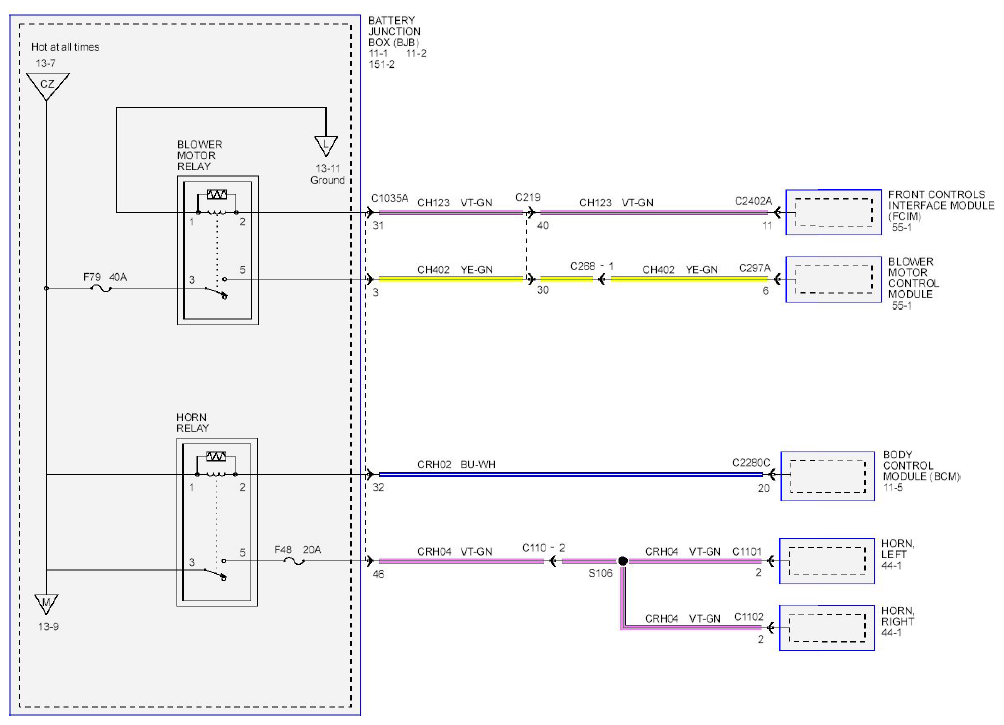

Fig 1: BCM Power Distribution Wiring Diagram - F48, F79
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
