Power Distribution_BCM: F23

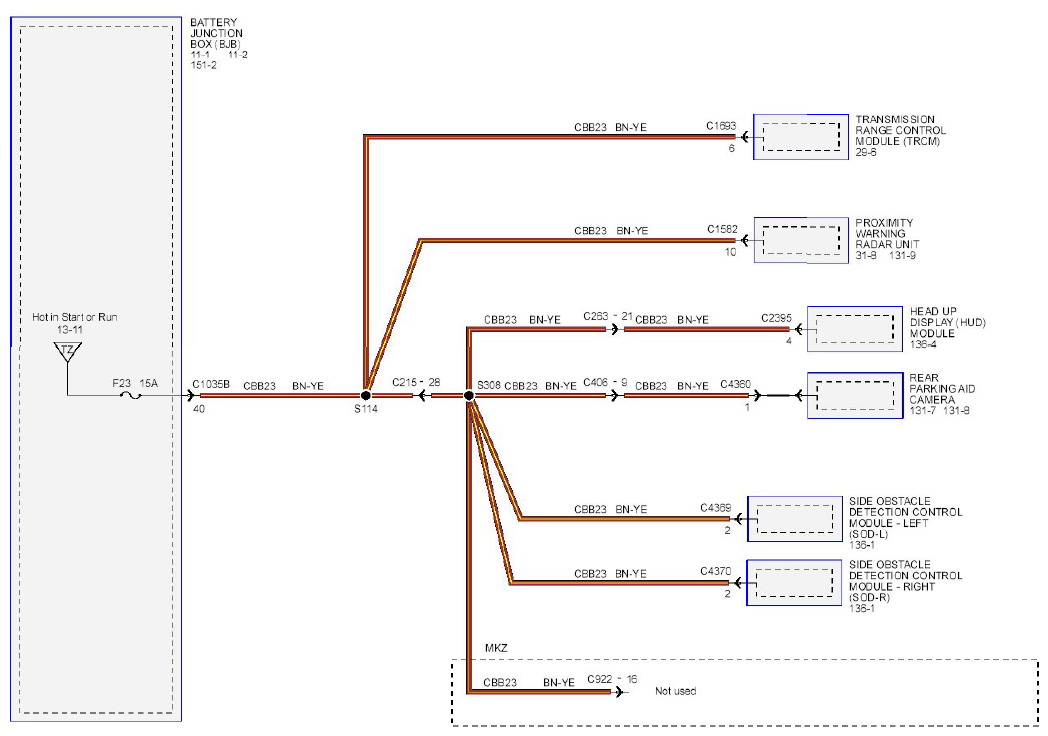

Fig 1: BCM Power Distribution Wiring Diagram - F23

G08754051

Courtesy of FORD MOTOR CO.
