OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution_BCM
>>
F2, F5, F10, F28
F2, F5, F10, F28

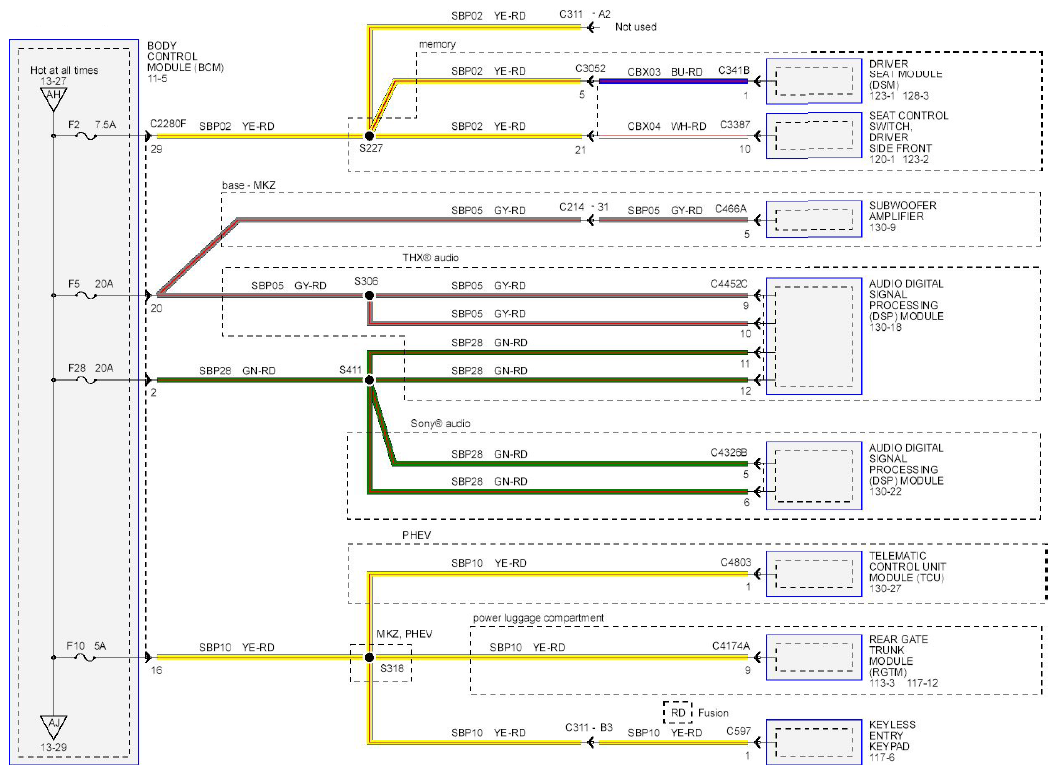

Fig 1: BCM Power Distribution Wiring Diagram - F2, F5, F10, F28
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
