OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution_BCM
>>
F1, F3, F76, F78, F83
F1, F3, F76, F78, F83

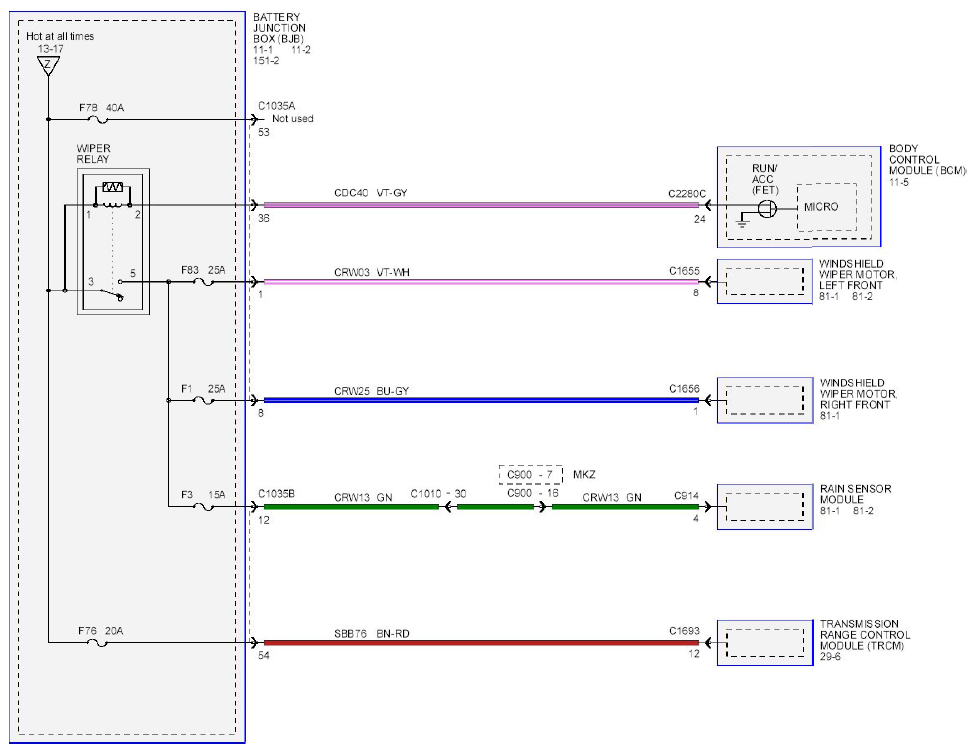

Fig 1: BCM Power Distribution Wiring Diagram - F1, F3, F76, F78, F83
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
