With Keyless Entry With Push Button Start

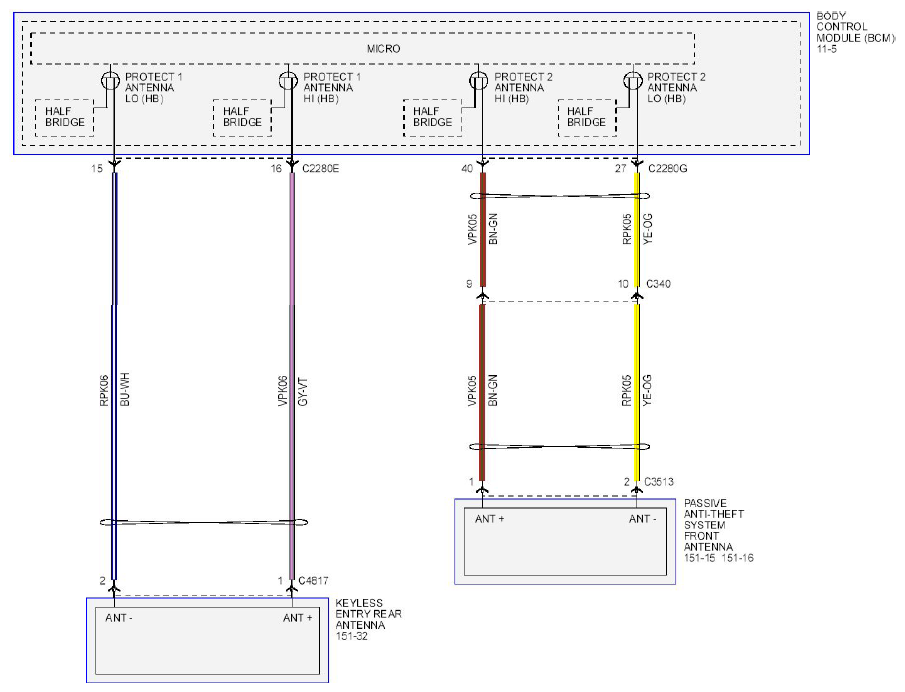

Fig 1: Passive Anti-Theft System Wiring Diagram - With Keyless Entry With Push Button Start

G08754234

Courtesy of FORD MOTOR CO.
