Passive Anti-Theft System: Fusion

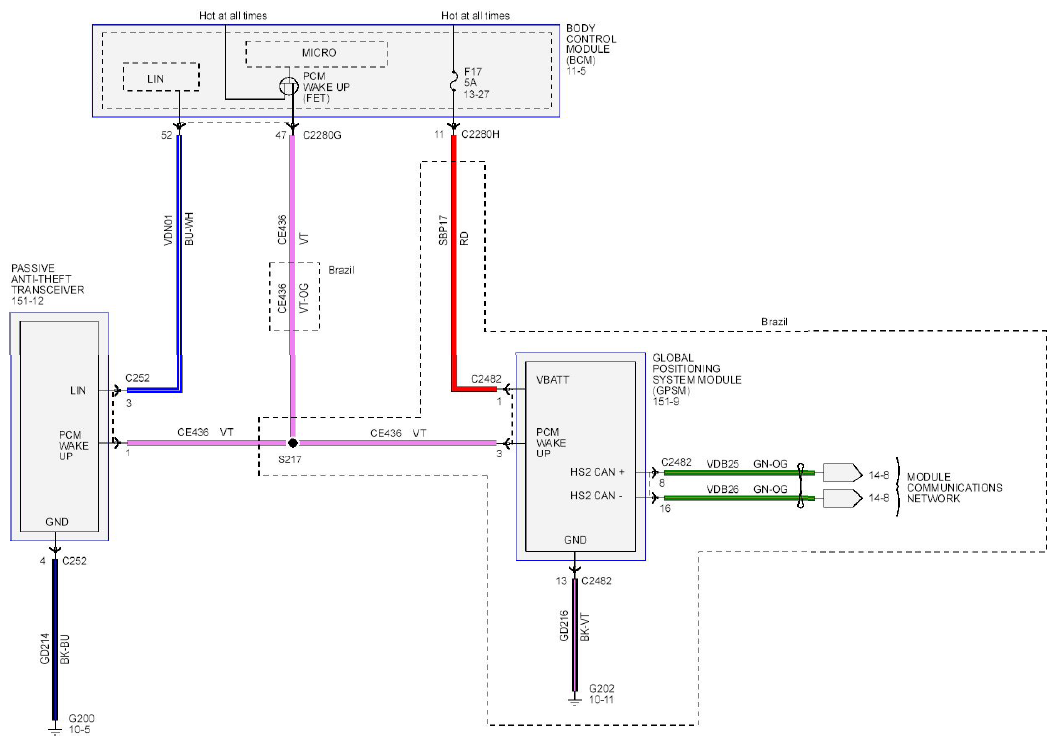

Fig 1: Passive Anti-Theft System Wiring Diagram - FUSION

G08754233

Courtesy of FORD MOTOR CO.
