Module Communications Network: PHEV

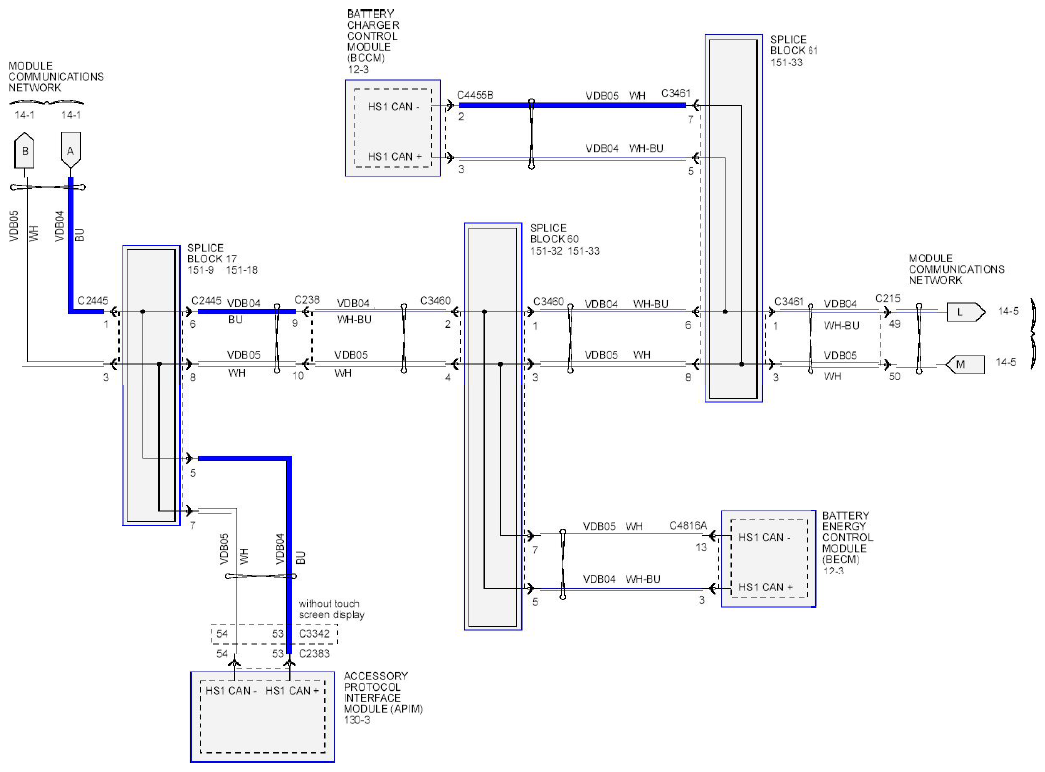

Fig 1: Module Communications Network Wiring Diagram - PHEV

G08754092

Courtesy of FORD MOTOR CO.
