Module Communications Network: Notes

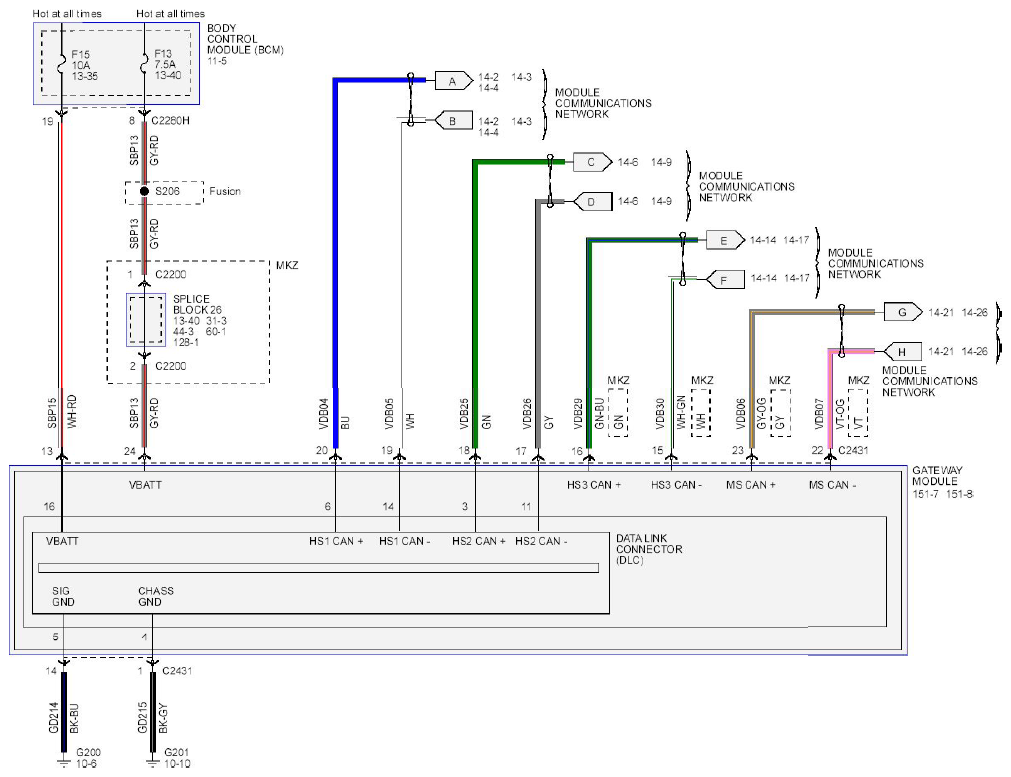

Fig 1: Module Communications Network Wiring Diagram (1 Of 2)
G08754090Courtesy of FORD MOTOR CO.

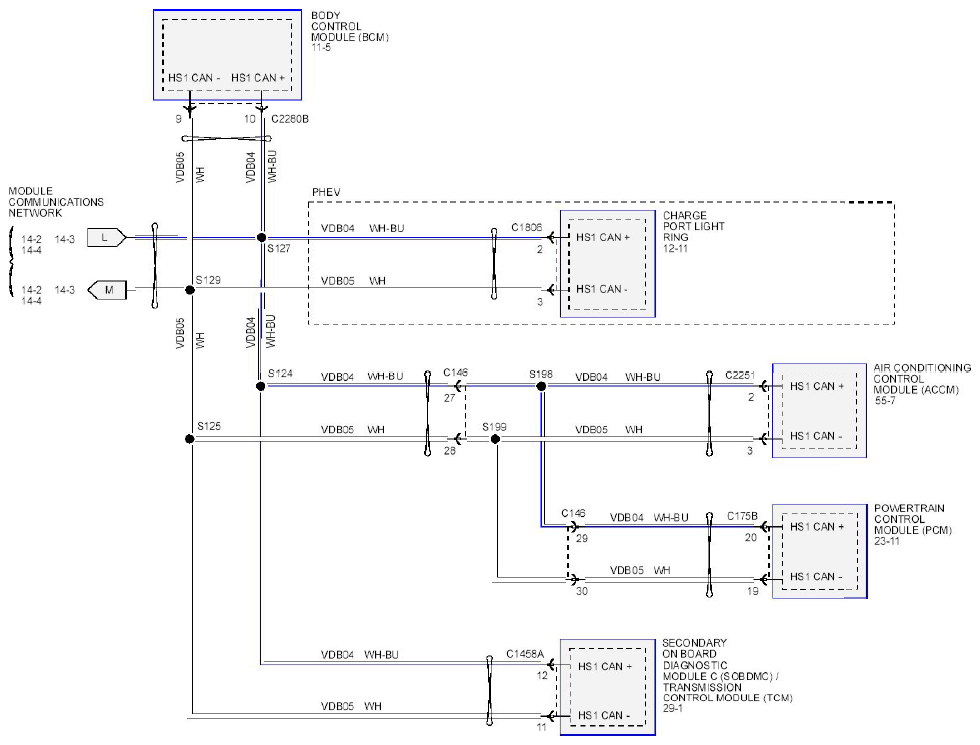

Fig 2: Module Communications Network Wiring Diagram - (2 Of 2)
G08754094Courtesy of FORD MOTOR CO.
